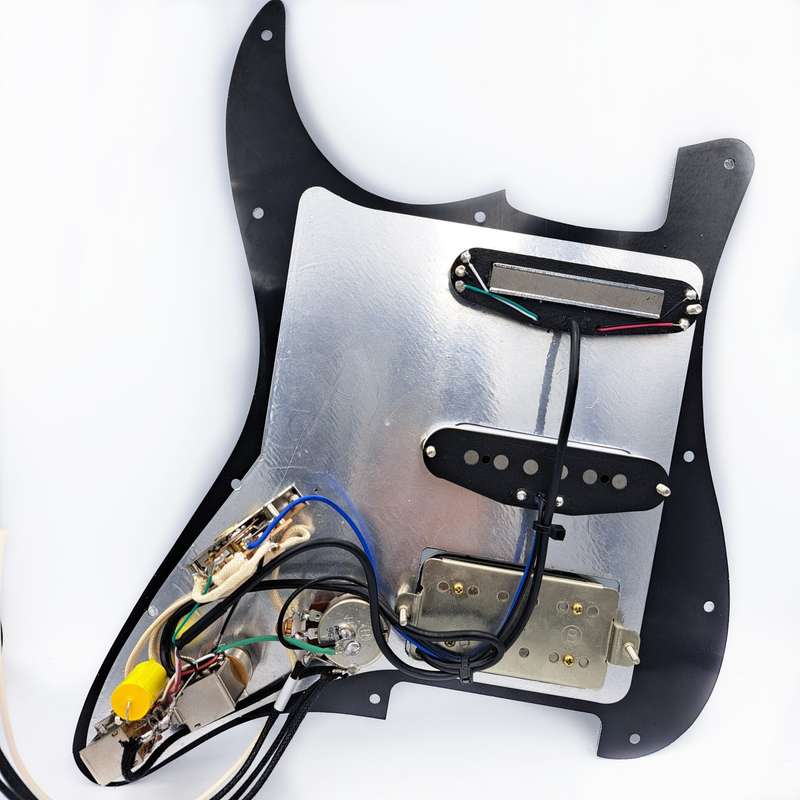

A high quality pickguard with a Karman Vintage Style 5 way switch, Full Sized Brass Shaft Potentiometer for volume and mini push pull pots for tone. Complete with pickups and electronics installed and connected, all you need to do is disconnect your old pickguard from output jack and connect this pickguard (solderless or solder-in options available) and screw the pickguard to the body of the guitar (screws can be ordered separately)
Please note - You would need to add an extra 24 - 48 hours to the lead time when ordering our prewired pickguards as we make them specially for each order.

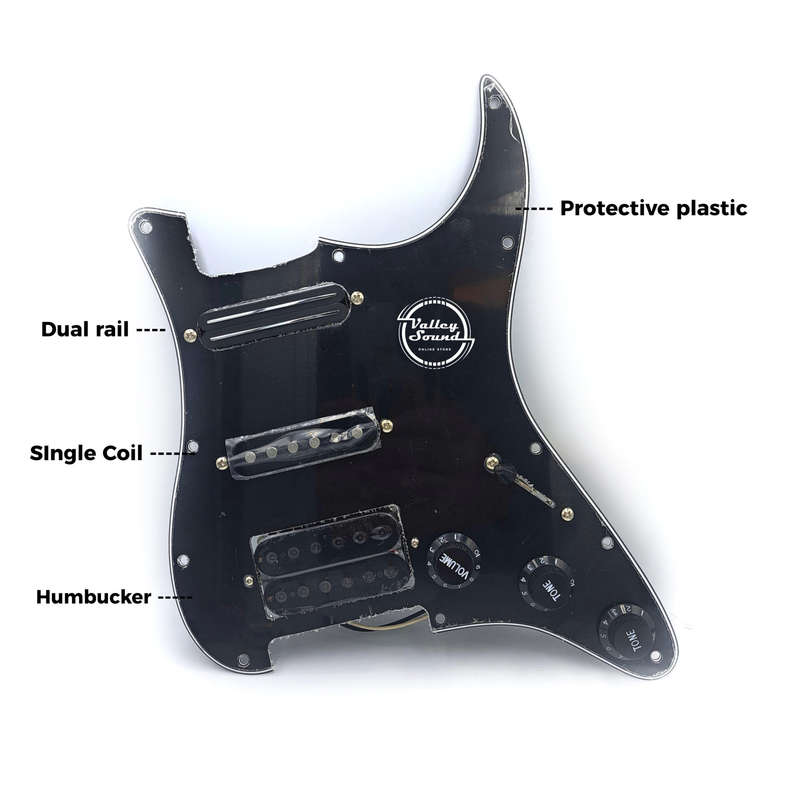

Pickups: Karman Alnico 5 Humbucker in the bridge, KS35 single coil in the middle and KR35 dual rail in the neck.
Wiring: ABS plastic wiring
Potentiometers: Full sized brass shaft potentiometer for Audio Taper (A500k) Volume with Treble Bleed, 2 x Audio Taper (A500k) push pull pots for tone with 0.022uF High quality Capacitor, neck pickup connected to tone 1 and bridge on middle on tone 2. Push pull pots coil split the neck and bridge pickups
Pickguard colour: Black (other colours are extra - email us with your custom request)
Knobs, Pickup covers and Switch tip colours: Black (other colours are available for custom orders - email us with your custom request)
Solderless or Solder-in: This prewired pickguard comes standard with 2 wires that must be soldered to your output jack and one wire that must be soldered to your bridge claw for grounding. We can make it solderless too, where you use your existing wires and connect them to a terminal connector on top of the volume pot.
PLEASE NOTE: This pickguard is the exact layout and spec as USA/MEX Strat, it will fit Squier too, though sometimes the screw holes won't line up 100 percent and you must make new ones. It may fit other guitars with some retrofitting, but we can not guarantee this since there are too many variations of the Strat. Also take note that the switch is larger than the cheaper import switch which may require some extra routing to your body where the switch goes depending on your routing depth (35mm is required) some guitars like Bullet and Affinity Squier have very shallow routing. By purchasing this prewired pickguard we will assume you have removed your current pickguard and checked your routing cavity and we will also assume you are willing to make some modifications if your guitar does not have the same mounting layout as standard USA/MEX Fender.
