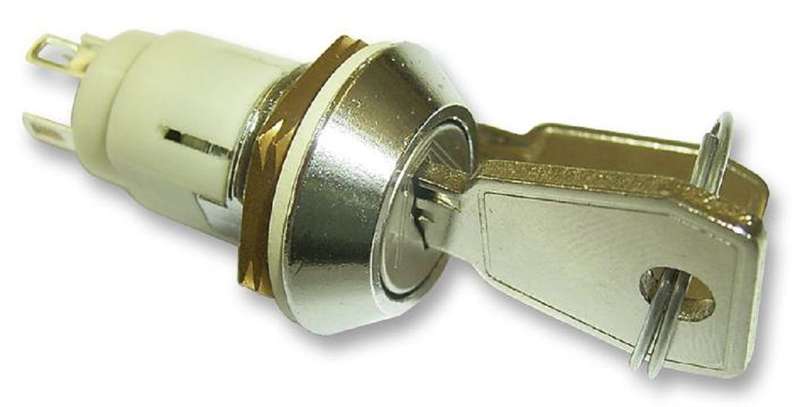

Lorlin (WRL-5-M-S-2) Keylock Switch, DPDT, WRL, 2 Position, Solder, 1 A

Product InformationContact Configuration: DPDTSwitch Operation: -Product Range: WRLSwitch Terminals: SolderContact Current Max: 1AContact Voltage AC Nom: 115VContact Voltage DC Nom: 24VNo. of Switch Positions: 2 PositionAngle of Throw: 60°Product OverviewThe WRL-5-M-S-2 is a double-pole double-throw (DPDT) Keylock Switch with 60°tapered lock head and Ag plated brass CZ108 contacts. This WRL sealed lockswitch comes with Cr plated zinc alloy lock housing, UL94V-0-rated polyamide 6.6molding. The key is feature with double entry i.e. it can be inserted into thelock either way up. It occupies small panel area. Cab be easily assembledthrough front of equipment panel.Rear projection less than 30mm from panel10000 Cycles life999MR at 500VDC Initial insulation resistance
