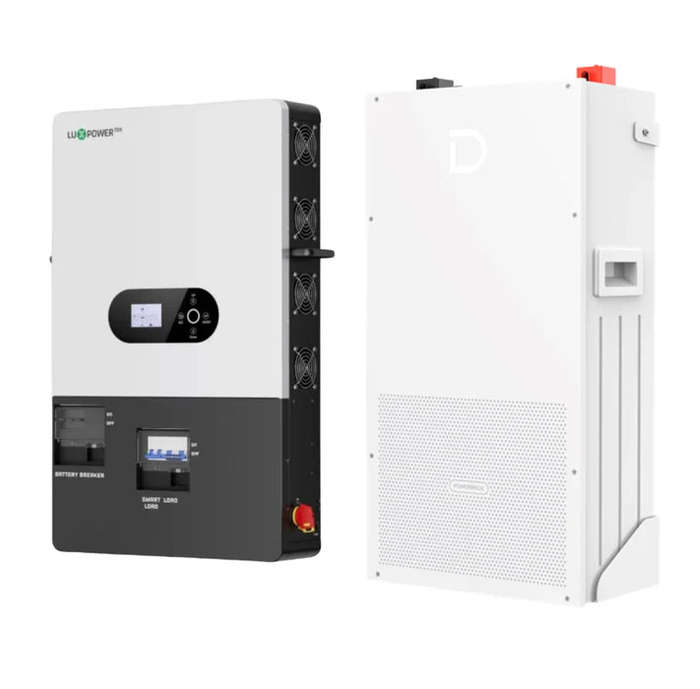

LuxPower 14kw and Dyness 14.3KW Lithium Battery Power Combo

Luxpower 14kW Single Phase Eco Hybrid Inverter (SNA14000)

General Data
2 MPPT with 4 Strings, Maximum 24kW PV input
Maximum Charging / Discharging Current 250A
Off-Grid application with 12kW Output Power
Dual AC Output Ports for multiple load connections
Integrated Load and Battery Breaker
PV, AC & Generator wake up Battery
Supports up to 16 Units in Parallel
Dedicated Generator Port
Up to 19.2kW Gen / AC Coupling Input
Auto Generator Start and Stop control

General

• Model: SNA 14000 Eco Hybrid
• Battery voltage: 48VDC.

Features:

• 2 MPPTs with 4 strings, Max. 24kW PV input
• Max. charging and discharging current: 250A
• Off-grid application for high demand with 12kW output power
• Dual AC output ports for multiple load connections
• Separate GEN port
• -Up to 19.2kW Gen/AC coupling input
• -Auto generator start and stop control
• Integrated Design with Load and Battery Breaker
• PV or AC or Generator wake up battery

Inverter Output

• Waveform: Pure Sinewave
• Rated Power: 14000W
• Parallel Capability: Yes
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
• Surge Power: 24000w
• Efficiency (Peak): 93.5%
• Transfer Time: <10ms @ Single and Parallel

Solar Charger

• Maximum PV Array Power: 24000W.(12000w per MPPT)
• 2 MPPT Controllers with 2 Inputs each
• MPPT Range @ Operating Voltage: 120VDC ~44O VDC.
• Maximum PV Array Open Circuit Voltage: 480VDC.
• Start Up Voltage: 100vdc
• Maximum Efficiency: 98%.
• Maximum Solar Charge Current: 35A/35A.

AC Charger

• Charge Current: 250A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz (Auto sensing)

Built in BMS (Battery Management System)

Wifi Remote Monitoring

Flexible Working Modes with settable charge and load power supply priority

Support Solar and AC take the load jointly.

Comes with a CT clamp to control your essentials and non-essential loads like a full Hybrid Inverter

Dyness 14.3KW Lithium Battery Power Brick

The Dyness PowerBrick 14.3kWh Lithium Battery is a high-performance energy storage solution designed for residential applications. It utilizes advanced LiFePO4 technology, ensuring maximum safety and longevity with an unlimited cycle life warranty over 10 years. Experience the Dyness Power Brick difference. Order your Dyness 14.3kW system now!

Dyness 14.3KW Lithium Battery Features

• Continuous discharge current 200A, maximum continuous discharge power 10kW.
• Unlimited Cycles / 10Years.
• Maximum can be expanded to 716.8kWh（no HUB).
• WIFI Module.
• Power Supply Systems,&nbsp;Solar Energy Storage Systems.

 Combo includes:

• 1x Dyness 14.3KW Lithium Battery Power Brick (10-year warranty)
• 1x LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter (2 year warranty)
• Battery Cables And Brackets Included
