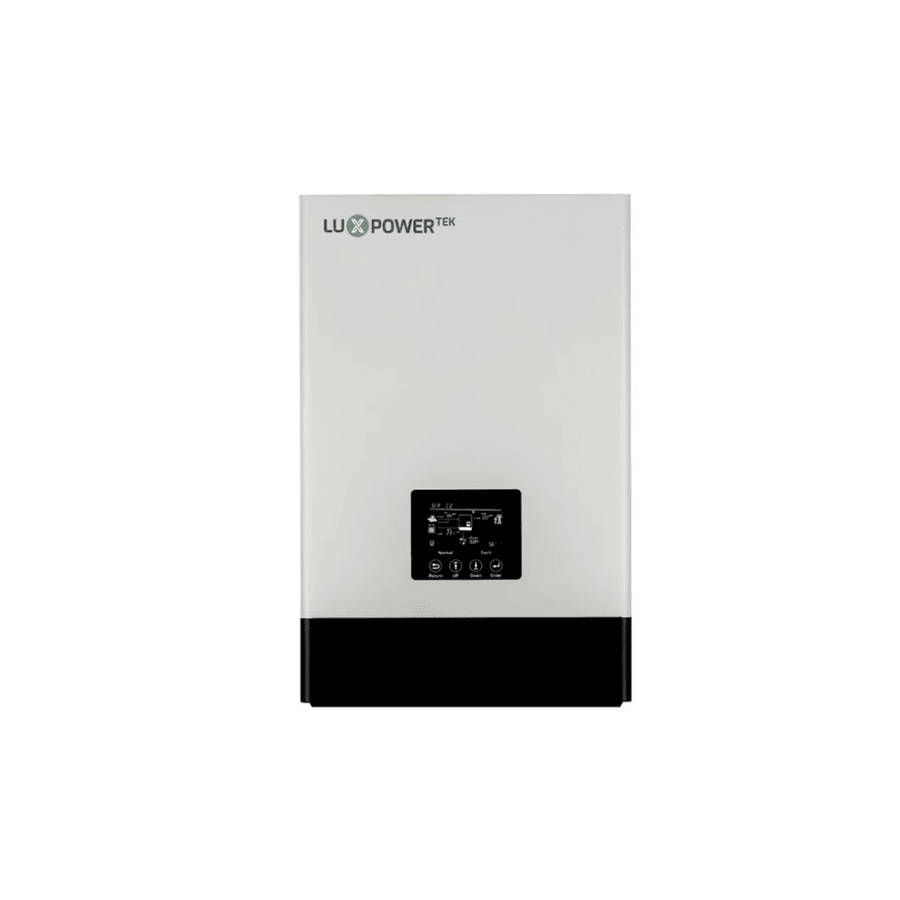

Luxpower 6KVA / 6000W Off-Grid Solar Inverter (SNA6000 WPV) MPPT +WiFi

Luxpower 6KVA / 6000W Off-Grid Solar Inverter (SNA6000 WPV) MPPT +WiFi

Description:

The Luxpower SNA6000 WPV 6KVA Off-Grid Inverter is a high-performance solar energy solution designed for residential and commercial applications. With dual MPPT controllers and an 8000W maximum PV input, this inverter efficiently manages solar energy for optimized power consumption.

This inverter features built-in BMS compatibility with leading lithium battery brands, ensuring seamless integration for reliable energy storage. The WiFi remote monitoring system provides real-time tracking, and the included CT clamp allows for intelligent load control between essential and non-essential power loads.

Key Features:

• 6KVA / 6000W Pure Sine Wave Output Ensures clean, stable power.
• Dual MPPT Solar Controllers Supports up to 8000W PV input (4000W per MPPT).
• Wide MPPT Voltage Range (120V - 385V DC) Enhances solar efficiency.
• Built-in BMS Compatibility Works with top lithium battery brands, including PylonTech, Dyness, Shoto, Hubble, and more.
• Parallel Operation (Up to 16 Units) Expandable for higher power needs.
• High Surge Power (9000W) Supports appliances with high startup currents.
• Fast Transfer Time 10ms for computers, 20ms for home appliances.
• WiFi Remote Monitoring Track system performance via mobile app.
• Flexible Working Modes Adjustable charge and load priority settings.
• CT Clamp for Load Management Helps control essential and non-essential loads.

Technical Specifications:

General

• Model: SNA6000 WPV
• Battery Voltage: 48V DC
• Warranty: 2 Years

AC Output

• Waveform: Pure Sine Wave
• Rated Power: 6000W
• Surge Power: 9000W
• Voltage Regulation (Battery Mode): 230V AC ±5%
• Transfer Time: 10ms (PCs), 20ms (Home Appliances)
• Efficiency (Peak): 93%

Solar Charger

• Maximum PV Array Power: 8000W
• Number of MPPT Controllers: 2
• MPPT Operating Voltage Range: 120V - 385V DC
• Maximum PV Open Circuit Voltage: 480V DC
• Start-Up Voltage: 100V DC
• Maximum Solar Charge Current: 17A / 17A
• Maximum Efficiency: 98%

AC Charger

• Maximum Charge Current: 80A
• AC Input Voltage: 230V AC
• Selectable Voltage Range:
  • 110-280V AC (For PCs)
  • 90-280V AC (For Home Appliances)
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)

Battery Compatibility (BMS Supported Brands):

• PylonTech
• Dyness
• Shoto
• Revov
• UZ Energy
• Lithium Battery South Africa
• Volta
• Hina (Approved Battery)
• Lemoen
• BlueNova
• Freedom Won
• Greenrich
• Hubble

What's in the Box:

• 1 x Luxpower SNA6000 WPV 6KVA Off-Grid Inverter
• 1 x WiFi Dongle
• 1 x CT Clamp for Load Management
• 1 x User Manual

Installation & Warranty Requirements:

• Professional Installation Required Must be installed by a qualified electrical wireman or master electrician.
• Valid Certificate of Compliance (COC) Required Installation must comply with SANS 10142 standards.
• Warranty Claims Must include installation photos, a valid COC, and proof of a qualified installer.
