LZ3G S-A-A V2 Pro Vector Network Analyzer 3.2 Inch Digital Nano VNA Tester MF... (TYPE: WITHBATTERY)

20 available / new

R1,806.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3459

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128181

SELECTED OPTION:
TYPE: WITHBATTERY

for more options in this item.

Features:

1. Using 0.5ppm TCXO: to ensure the frequency accuracy of high frequency measurement with 0.5ppm TCXO network analyzer. 2. Metal shell: the metal shell can fully protect the internal precision circuit, and fully consider the protection of external interface. 3. High Performance Calibration Kit: the network analyzer is equipped with a high performance calibration kit to ensure that the calibration SWR is less than 1.03 at 3GHz. 4. Good amplitude and phase stability: two customized high performance ss405 SMA RF cables provide good amplitude and phase stability. 5. Easy to carry: equipped with advanced plastic packaging, network analyzer is easier to carry and store.
Specification:

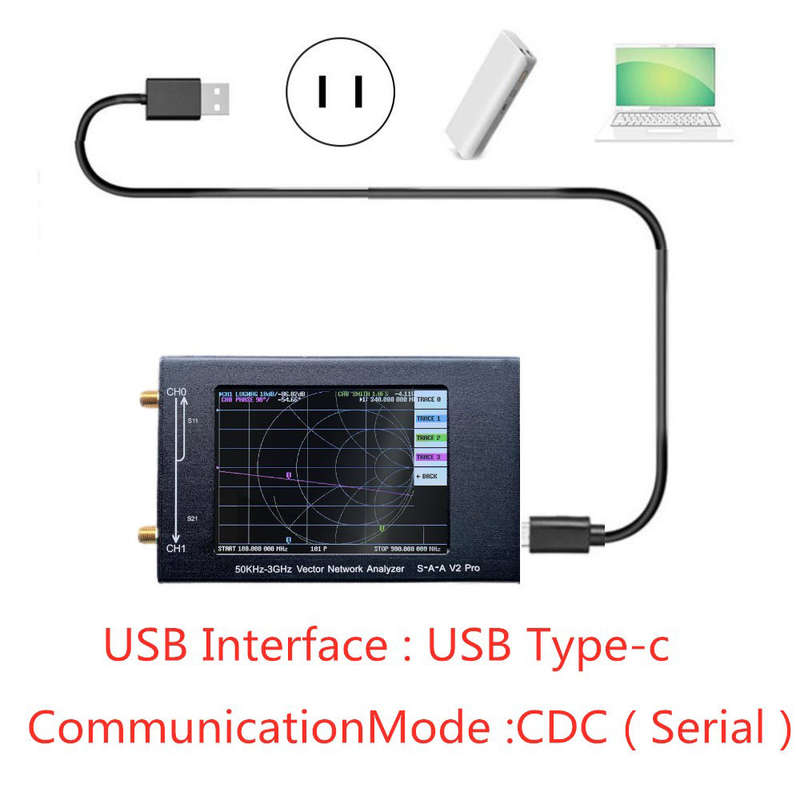

HDMB V2 Pro Frequency range:50KHz-3GHz System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz) S11 bottom noise (calibration): - 50dB (up to 1.5GHz), - 40dB (up to 3GHz) Scanning speed: 100 points / S Display: about 3.2 inches (320 * 480) USB interface: USB type-C communication mode: CDC (serial) Power supply: USB, maximum charging current 1a Battery:built-in 1500mah lithium ion(Optional) Battery connector: jst-xh 2.0mm Max scan point (on device screen): 201 Maximum scan point (USB): 1024 Return loss of port 2 (1.5GHz): 20dbtyp Port 2 return loss (3GHz): 13dB min Item size: 142 x 75X 23mm / (5.1 x2.9x0.9in) Product weight: 405 g / (14.3 oz.av ) Package size: 245 142 50mm / (9.7 * 5.6 * 2in) Package weight: 430 g (15.1 oz average) VNA QT software compatible system: for Linux, for Windows (7+), for Mac OS planned

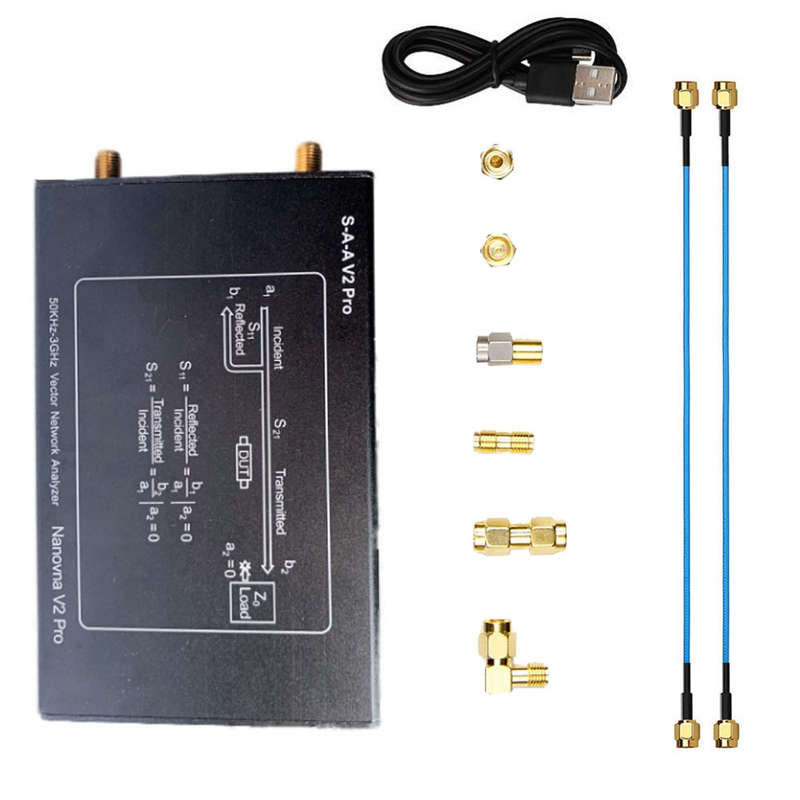

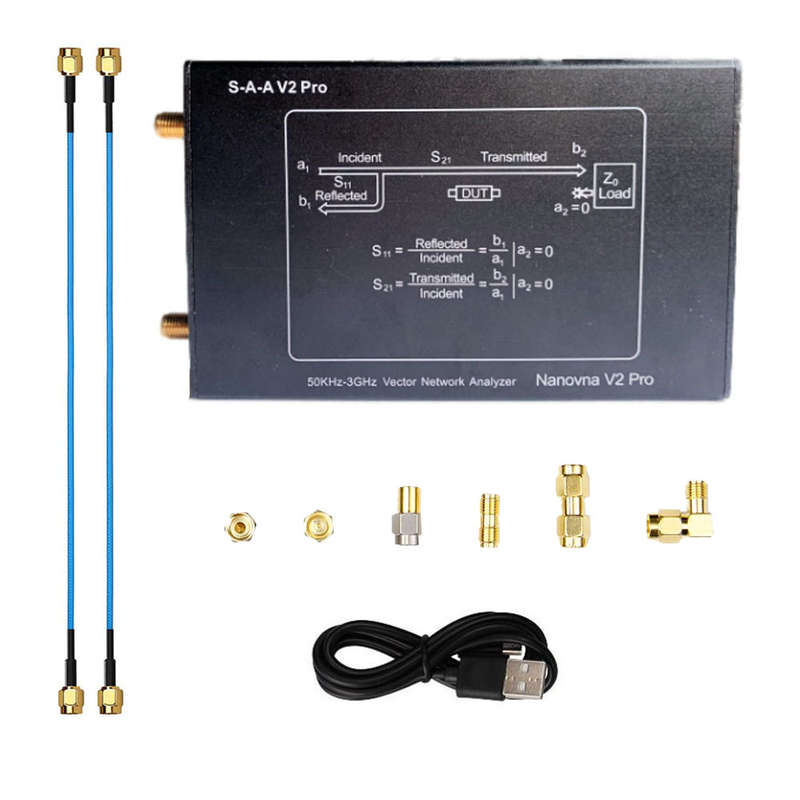

Package includes:
1 hdmb V2 Pro vector network analyzer host(built-in 1500mah battery according to the choice) 1 * type-C USB cable 2 * 200 mm SMA male to male ss405 RF cable 1 * SMA simple calibration setting open 1 * SMA simple calibration set 1 * SMA simple calibration kit load 1 * SMA female to female connector 1 * Industrial installed box

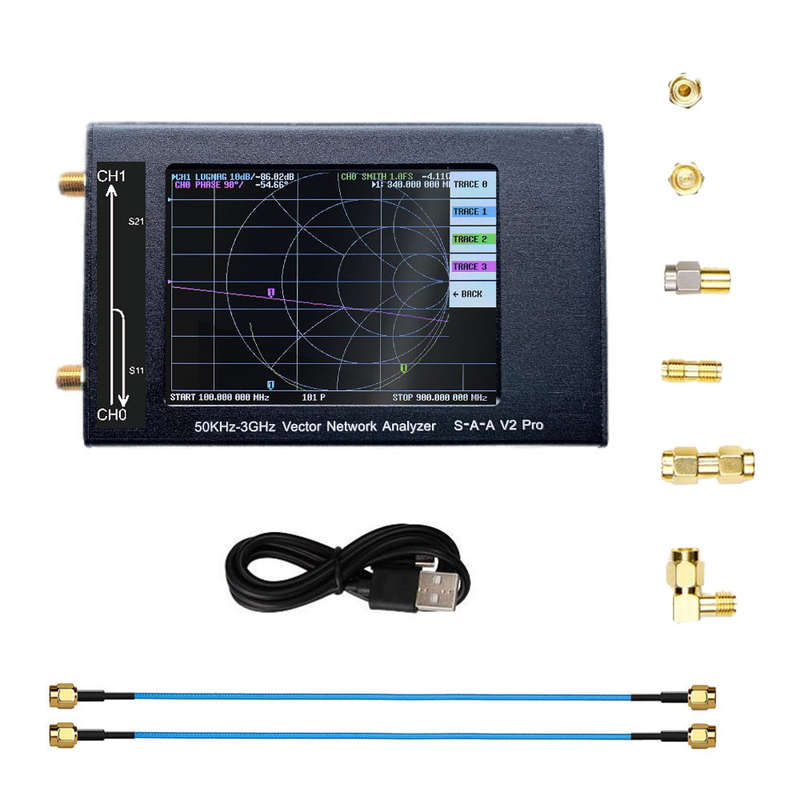

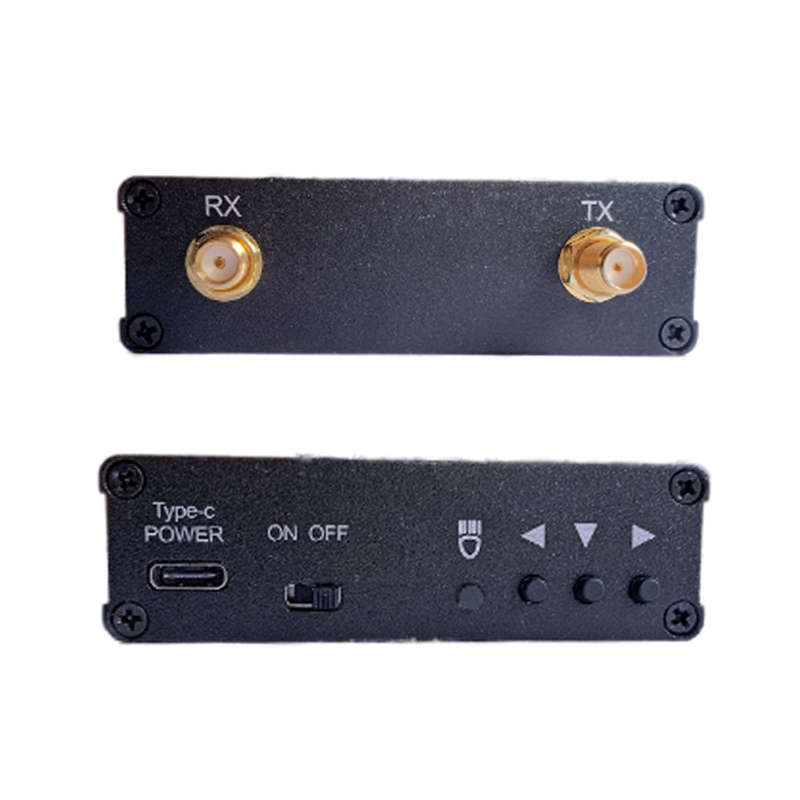

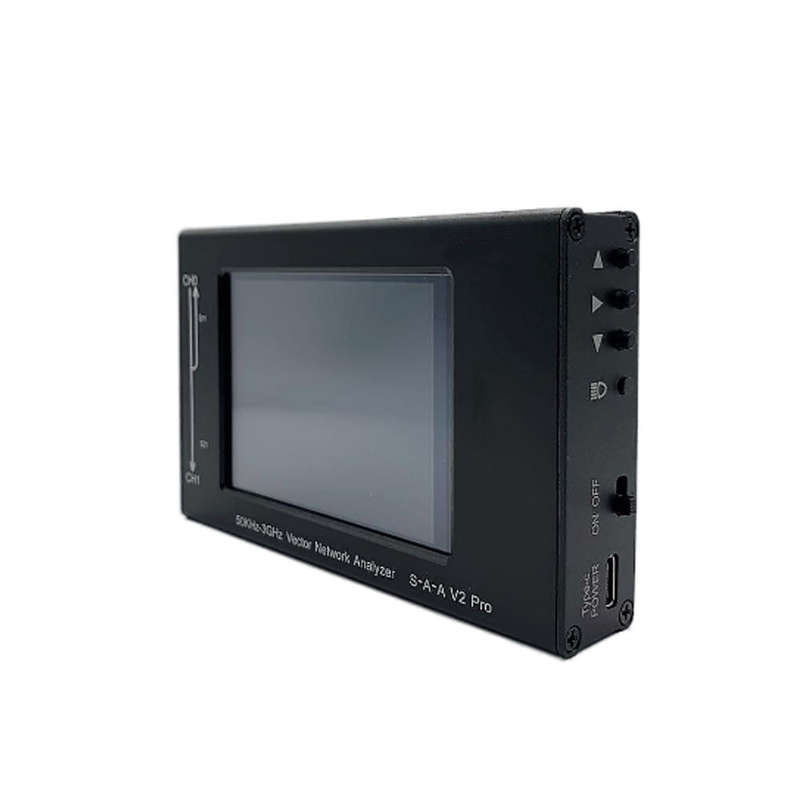

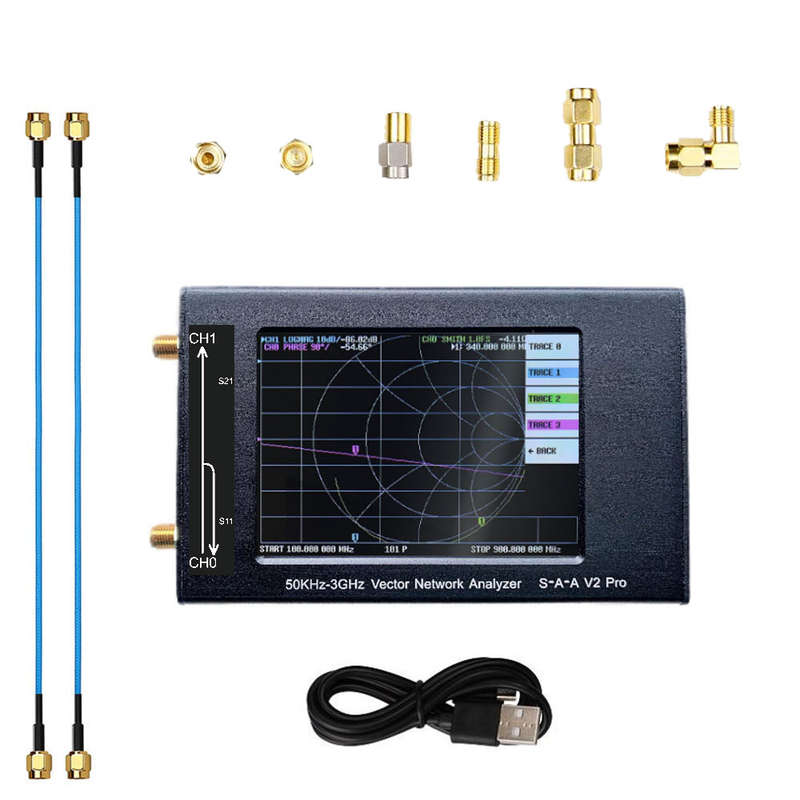

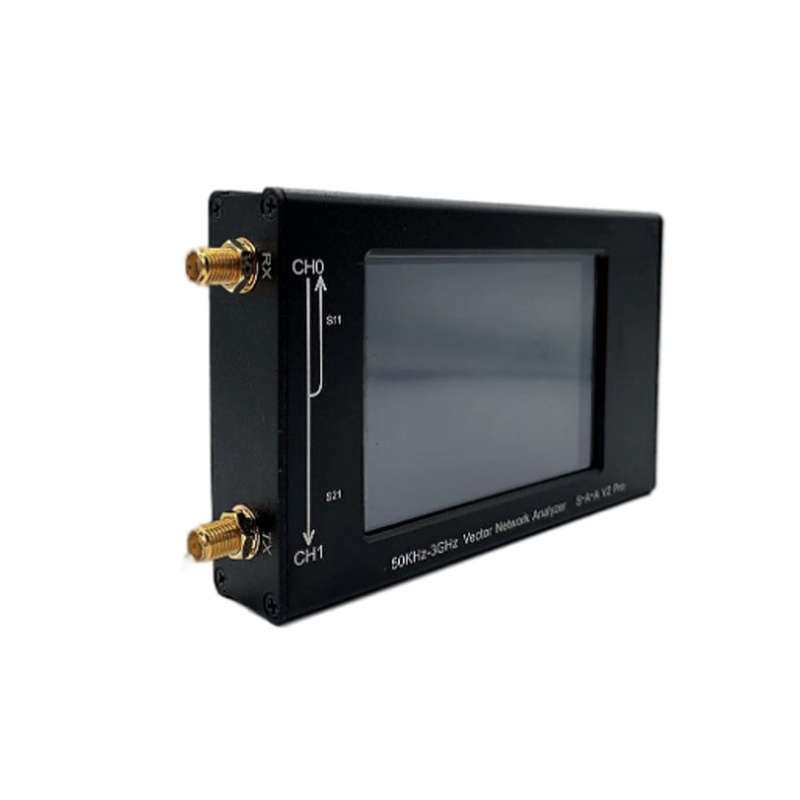

Details pictures:
