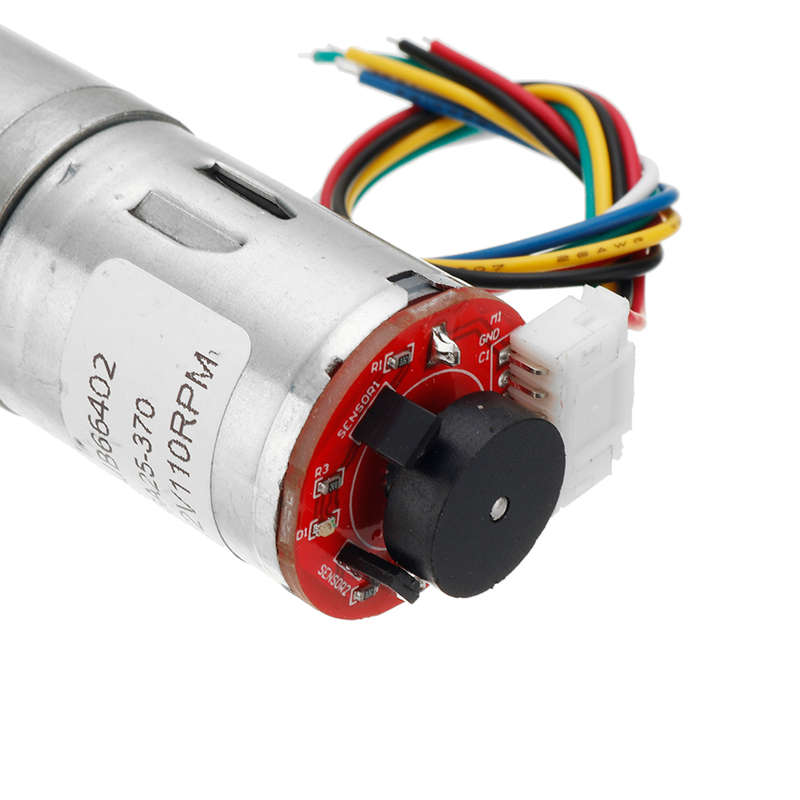

Machifit 25GA370 DC 12V Micro Gear Reduction Encoder Motor with Mounting B... (ROTATE SPEED: 190RPM)

20 available / new

R629.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3477

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128416

SELECTED OPTION:
ROTATE SPEED: 190RPM

Descriptions:

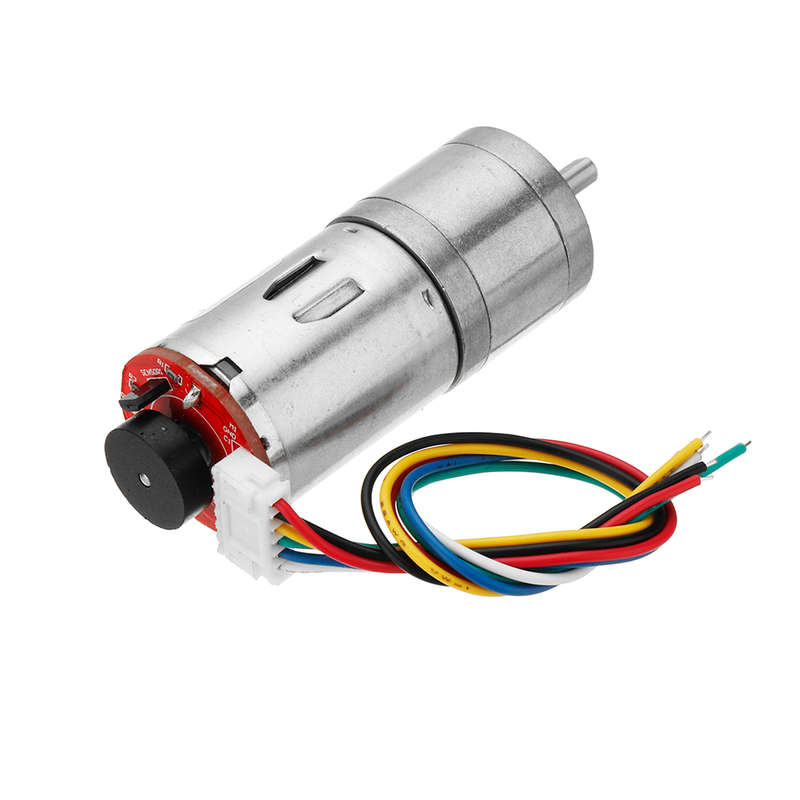

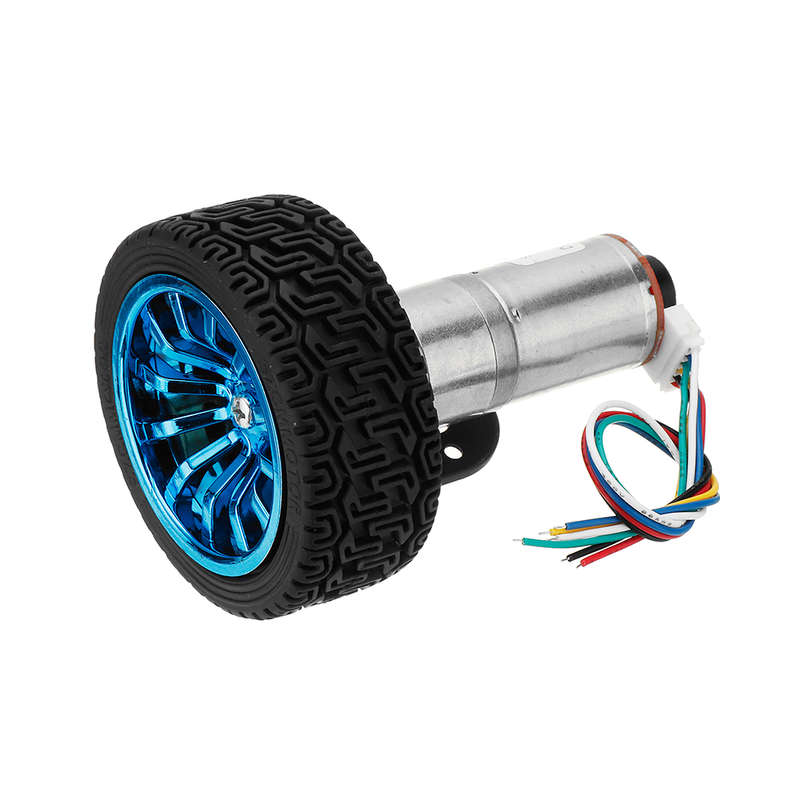

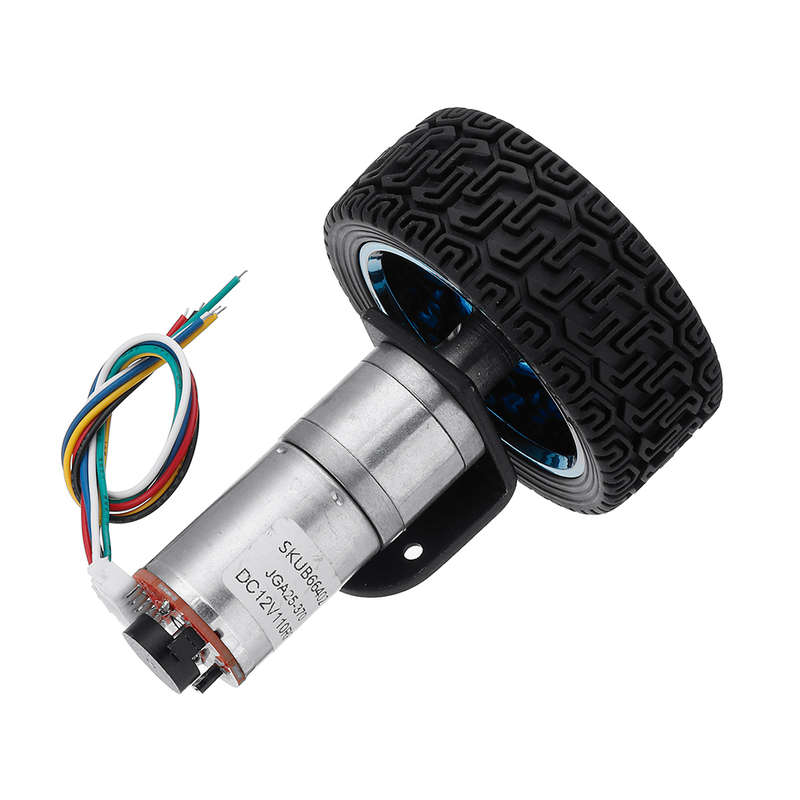

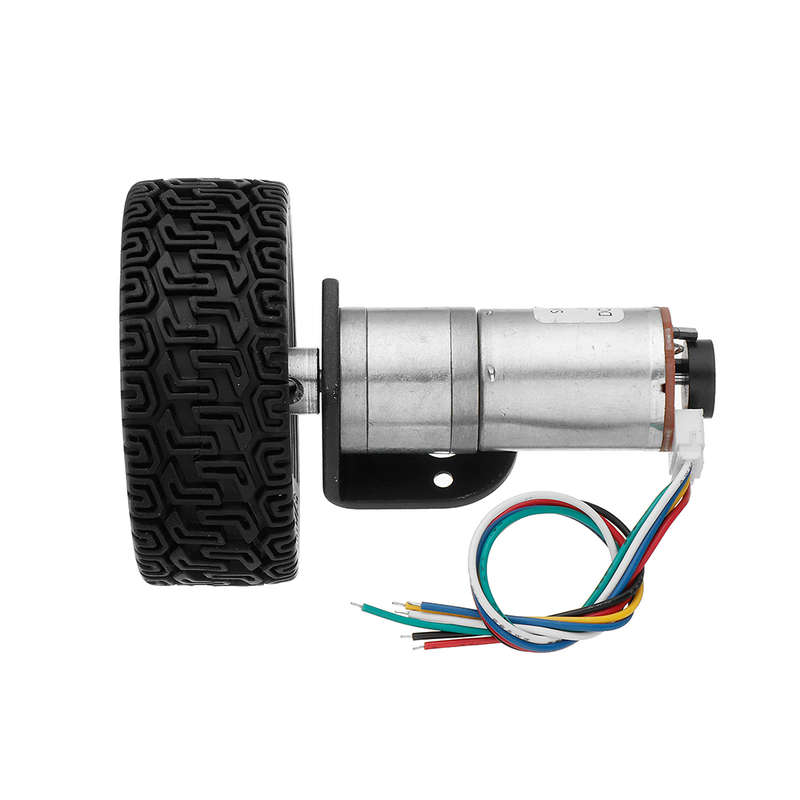

Machifit 25GA370 DC 12V Micro Gear Reduction Motor 25mm Extended Shaft with Mounting Bracket and Wheel

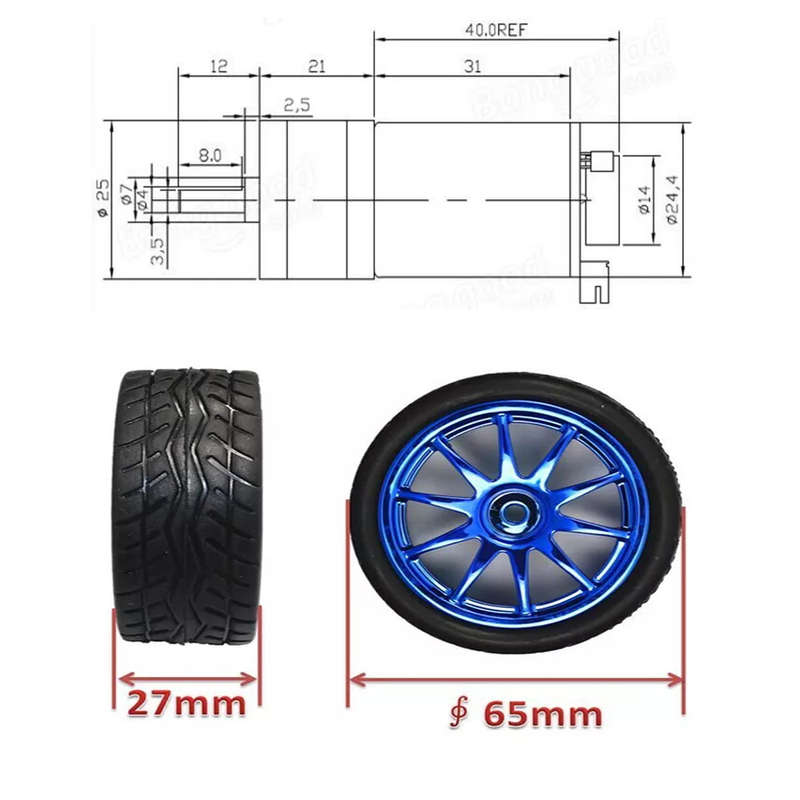

Specifications: Material: Metal Voltage: DC 12V Size(approach):
Output Shaft Dia.: 4mm
Output Shaft Length: 12mm Applications:For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Parameter:

Voltage	No-load Speed	RATIO	No-load		Rated-load			Stall
			Current (A)	Speed(rpm) &pm;10%rpm	Torque (kg.cm)	Speed(rpm) &pm;10%rpm	Current (A)	Torque (kg.cm)	Current (A)	L Size

DC 12.0V	110rpm	1:75	a0.15	110	8.0	65	a0.75	a9.0	1.8	23
DC 12.0V	190rpm	1:45	a0.15	190	5.0	100	a0.75	a9.0	1.8	21

Features:
- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - The terminal with red dot or + is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

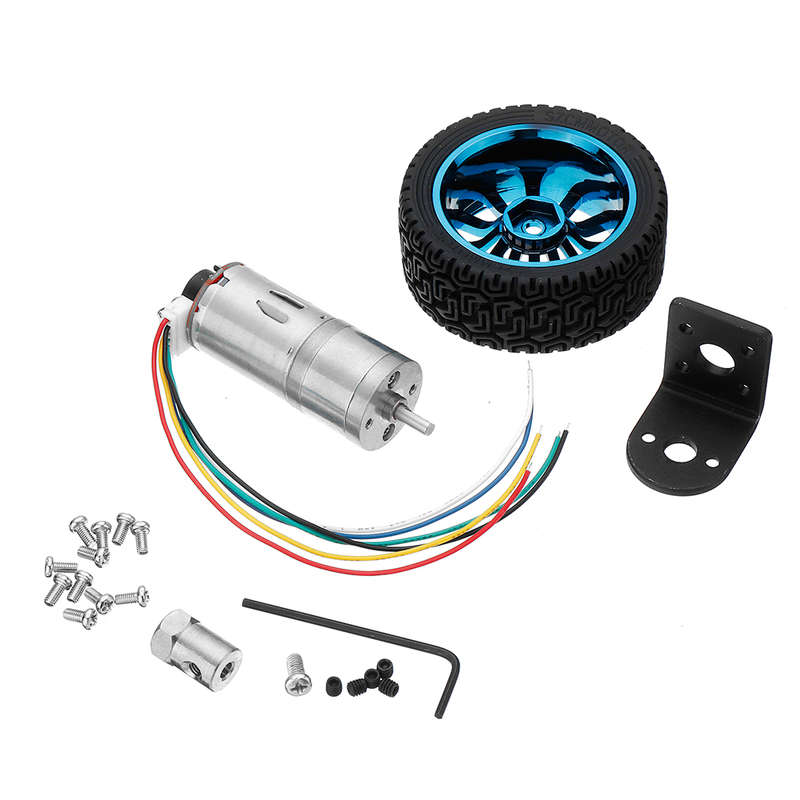

Package Included:

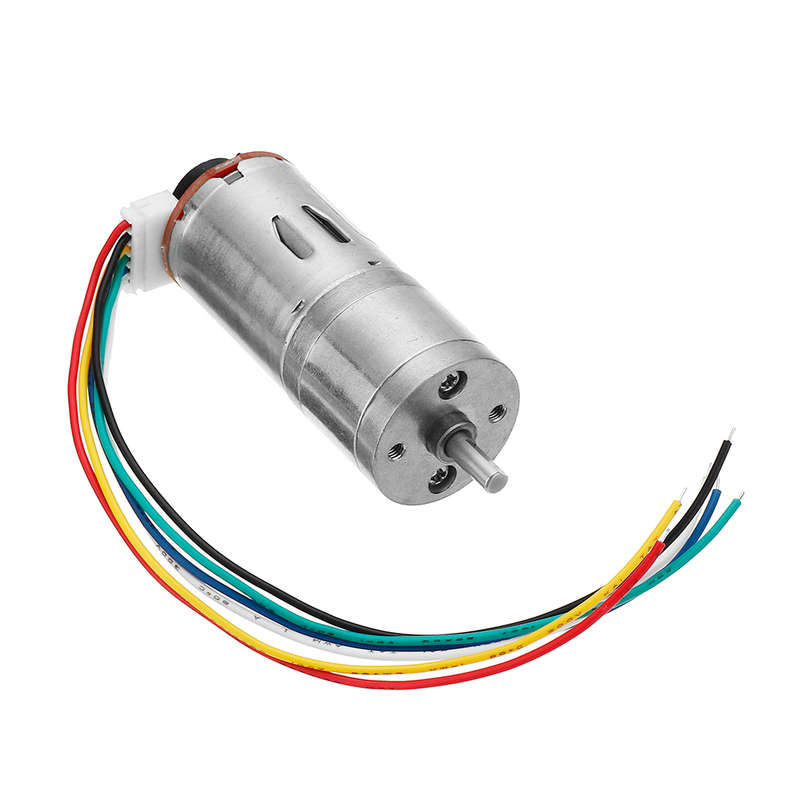

1 x Gear Motor

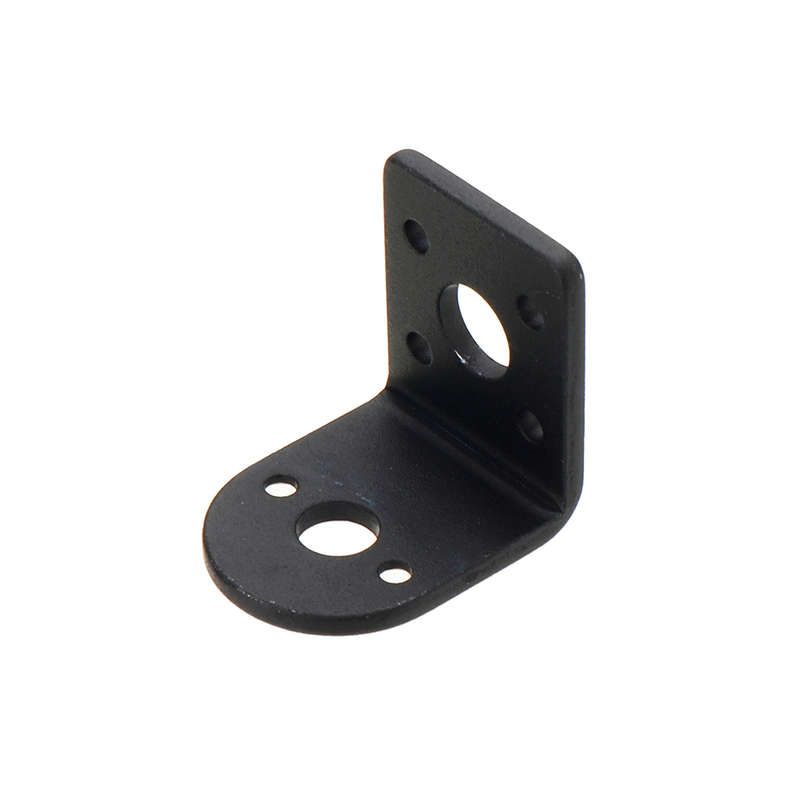

1 xMounting Bracket

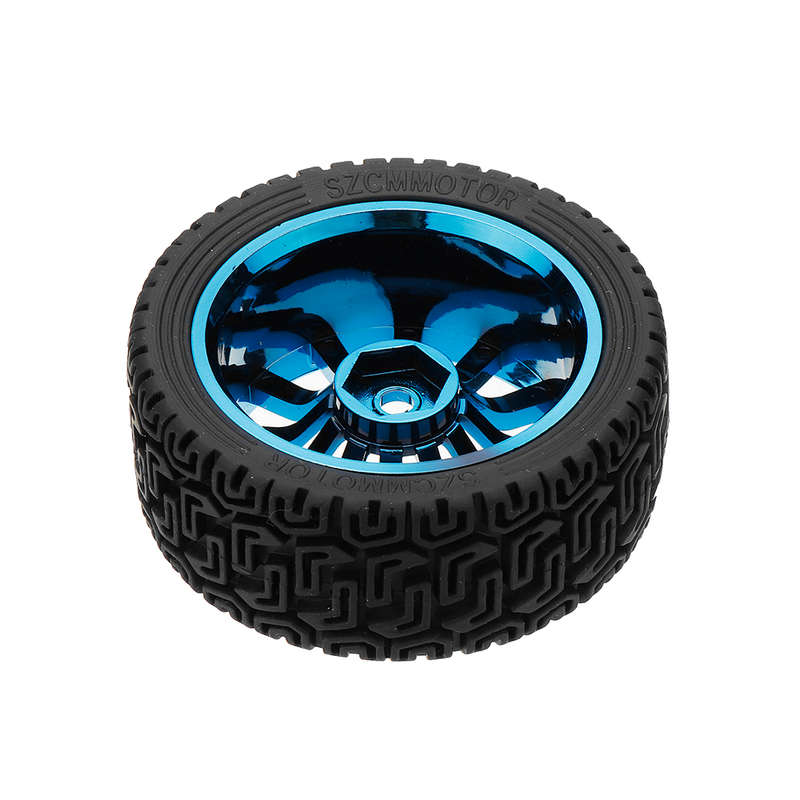

1 x Wheel

More Details:
