Machifit 25GA370 DC 24V Micro Gear Reduction Motor 25mm Extended Shaft Gea... (ROTATE SPEED: 130RPM)

20 available / new

R429.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3502

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128417

SELECTED OPTION:
ROTATE SPEED: 130RPM

Descriptions:

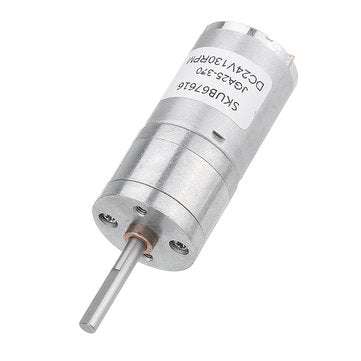

Machifit 25GA370 DC 24V Micro Gear Reduction Motor 25mm Extended Shaft Gear Motor
Specifications: Brand: Machifit Material: Metal Voltage: DC 24V
Power: 3W Speed Regulation: Yes
Rotate In Both Two Sides: Yes
Size(approach):
Output Shaft Dia.: 4mm
Output Shaft Length: 25mm
Motor: 50 x 24mm (without output shaft)

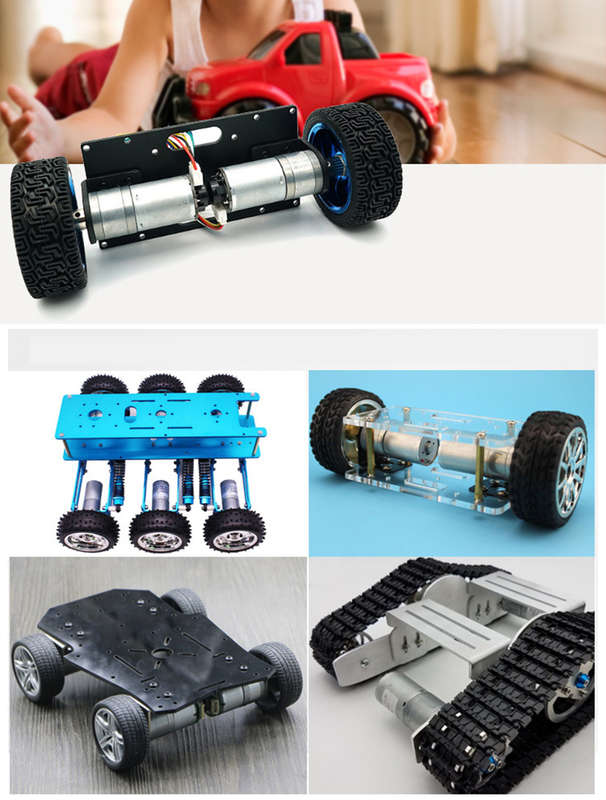

Applications:For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) &pm;10%rpm	Torque (kg.cm)	Speed(rpm) &pm;10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
		Current (A)	Speed(rpm) &pm;10%rpm	Torque (kg.cm)	Speed(rpm) &pm;10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
DC 24.0V	1:12	0.04	12	9.7	9	0.16			91	27
DC 24.0V	1:35	0.04	35	3.3	27	0.16			89	25
DC 24.0V	1:60	0.04	60	2	46	0.16	7.3	0.6	90	23
DC 24.0V	1:130	0.04	130	0.9	100	0.16	4.4	0.6	88	21
DC 24.0V	1:620	0.04	620	0.2	477	0.16	0.9	0.6	83	17.5

Features:
- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - The terminal with red dot or + is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 Pcs x 24V Micro Reduction Gear Extended Shaft Motor

More Details:
