SELECTED OPTION:
SIZE: 120

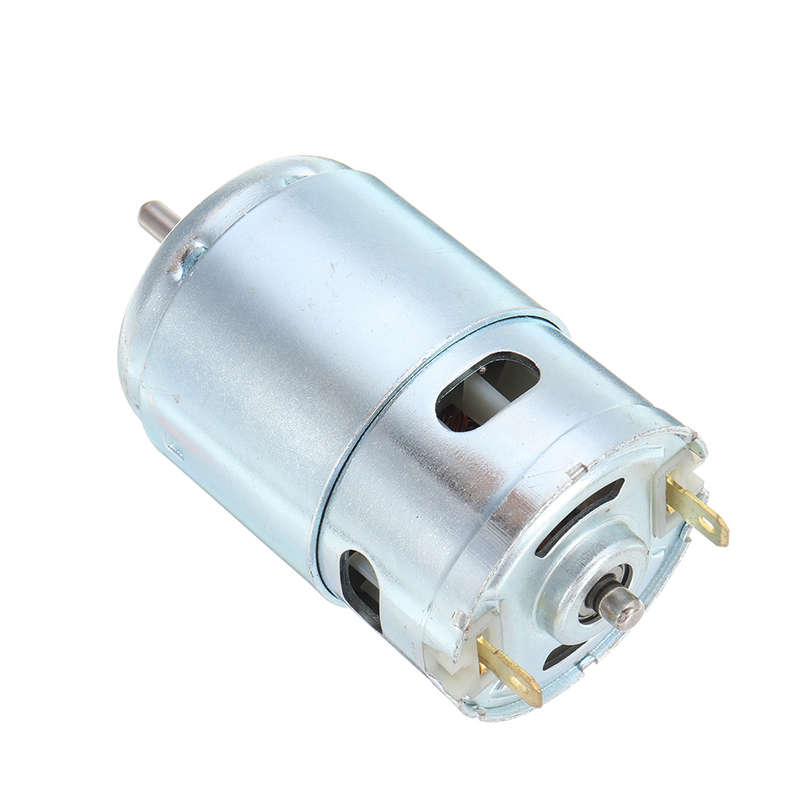

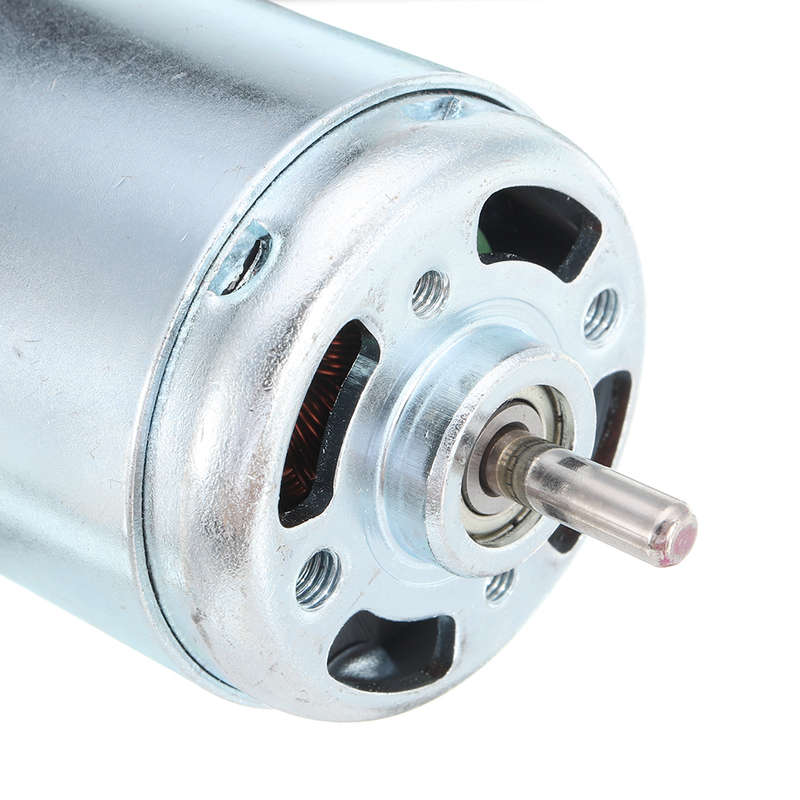

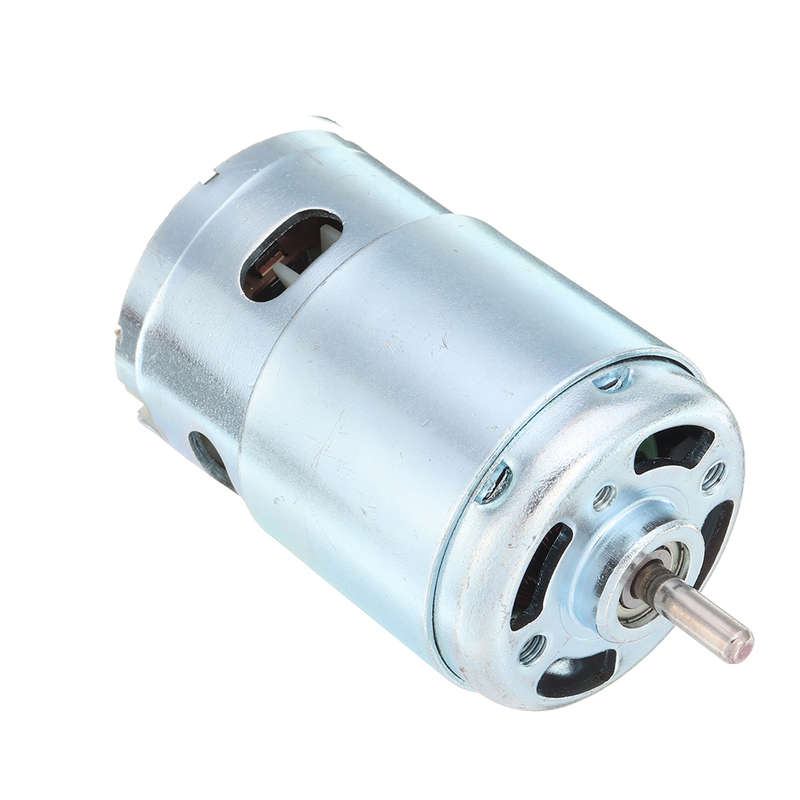

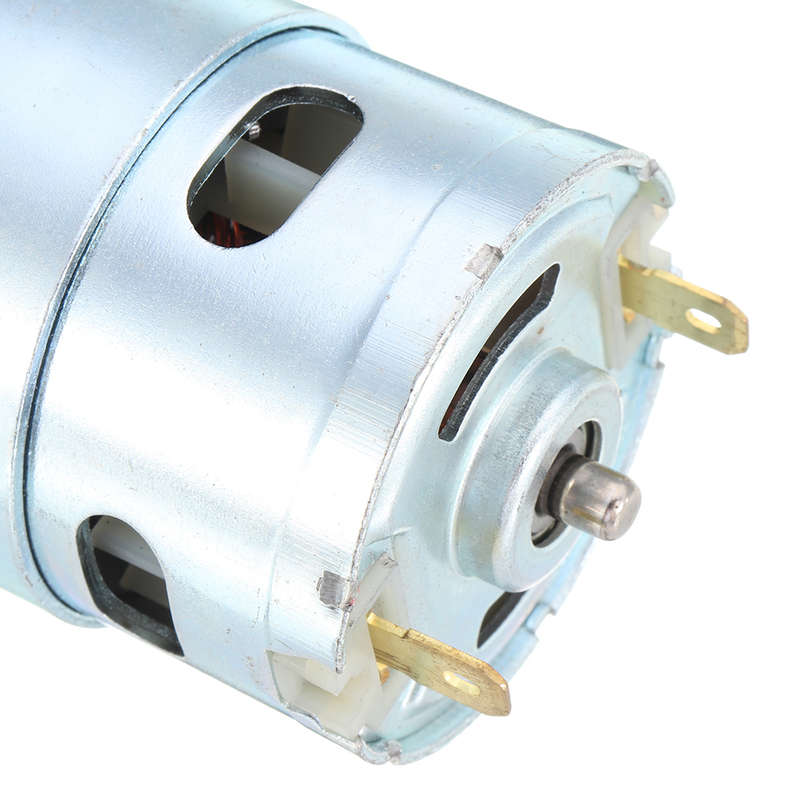

Description: DC 12-24V Lathe Press 895 Motor Table Saw Kit with Ball Bearing Mounting Bracket and Saw Blade for Woodworking Cutting Polishing Engraving

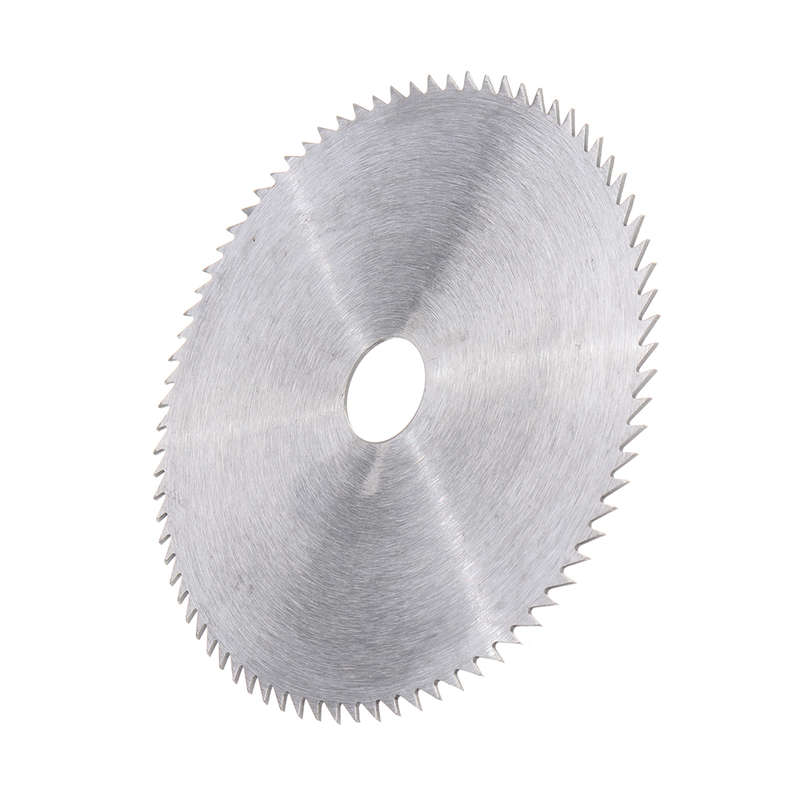

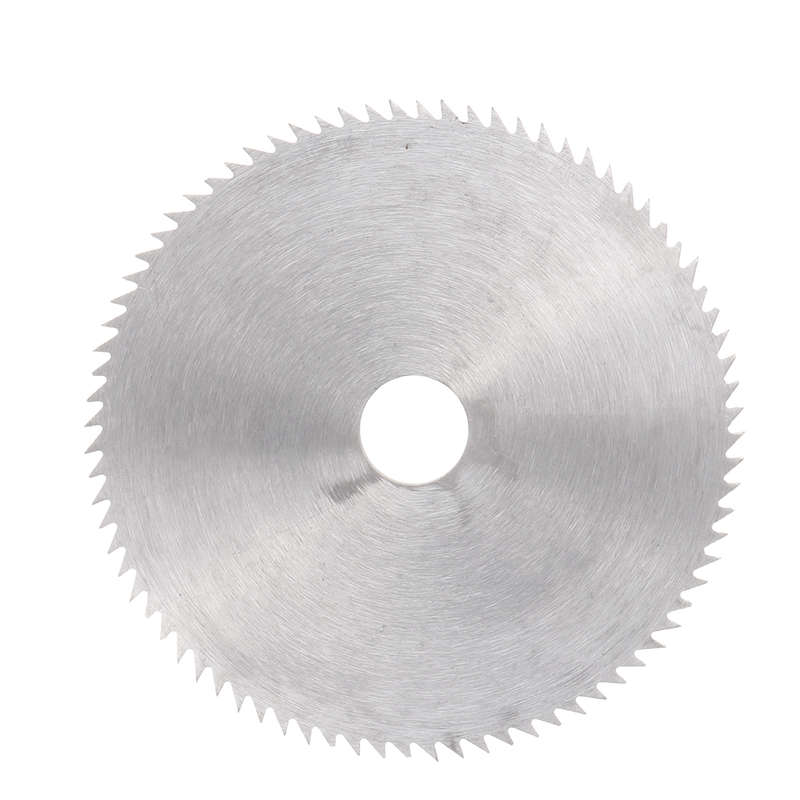

Specification: Type: 895 Motor Material: Aluminum Alloy + Stainless Steel Rated Voltage: DC 12-24 V No-load Speed: 6000-12000(rpm) Saw Blade Diameter: 100mm / 110mm / 120mm(optional)
Model | 895 |
Rated voltage | 12-24V |
Speed | 12V 6000rpm 24V 12000rpm |
Torque | 12V: 4.2kg.cm 24V: 8kg.cm |
Former high level | 4.5mm |
Front steps diameter | 18mm |
Body diameter | 48mm |
Shaft diameter | 5mm |
Body length | 72mm |
Length of output shaft at tail | 6mm |
Diagonal installation pitch | 29mm |
Mounting hole size | M4 M5 |
Power | 200W |
Features: - This small table saw can be used directly, but to DIY, you need to assemble it yourself. - The motor contains five windings of thick copper wire with a cooling fan. - The overall engine speed setting, not even high speed, but the torque is large. - Extensive power supply, all DC 12-24V power supply can be directly powered, and work perfectly. - It provides great help for use, and it is faster and more convenient. - Can be used for various applications of debris deflection, include PCB design, etching, polishing,
cutting, woodworking, remote control models, robotics, home and gardening, and so on.
Note: - Do not tighten the bolts and rotate at high speeds in the opposite direction of the bolts to avoid unnecessary problems when dropping, or cover with a protective cover.

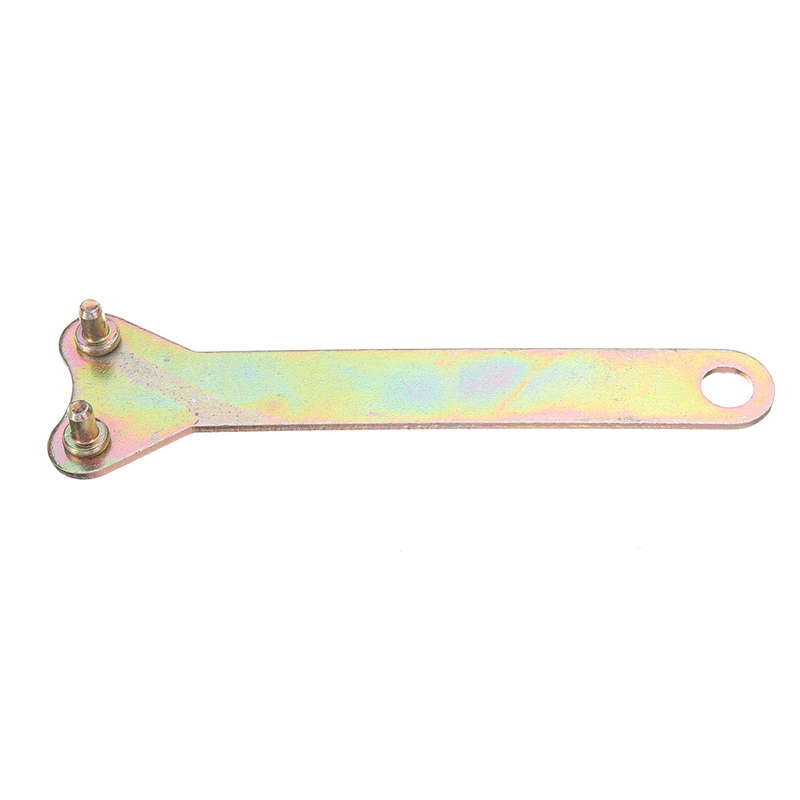

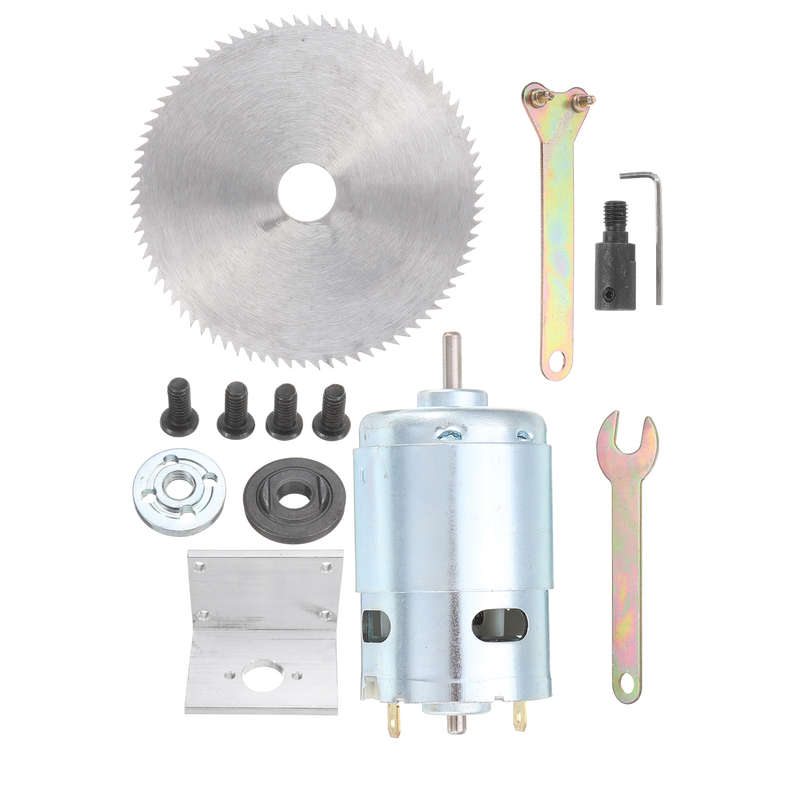

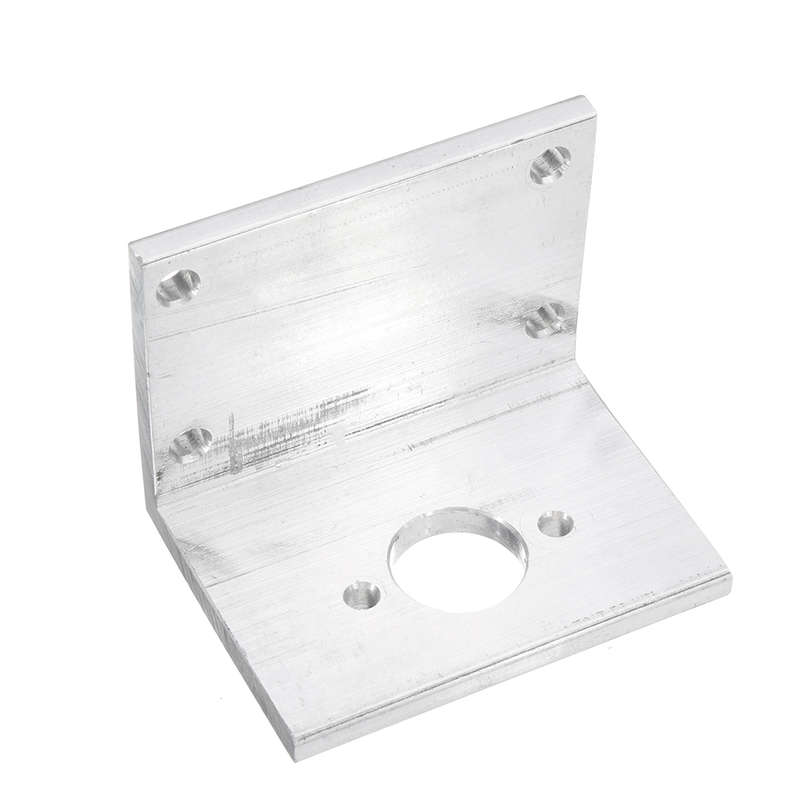

Package included: 1 x 895 Motor 1 x HSS Saw blade 1 x Mounting Bracket 1 x Saw Blade Connecting Rod 1 x Small Wrench 2 x Screws
More Details:
