Description:

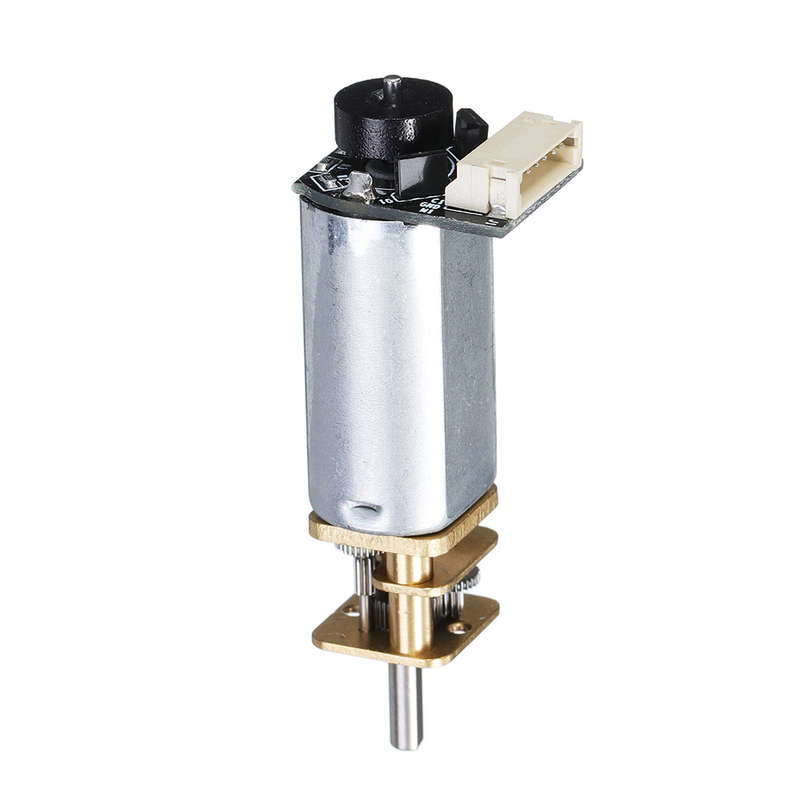

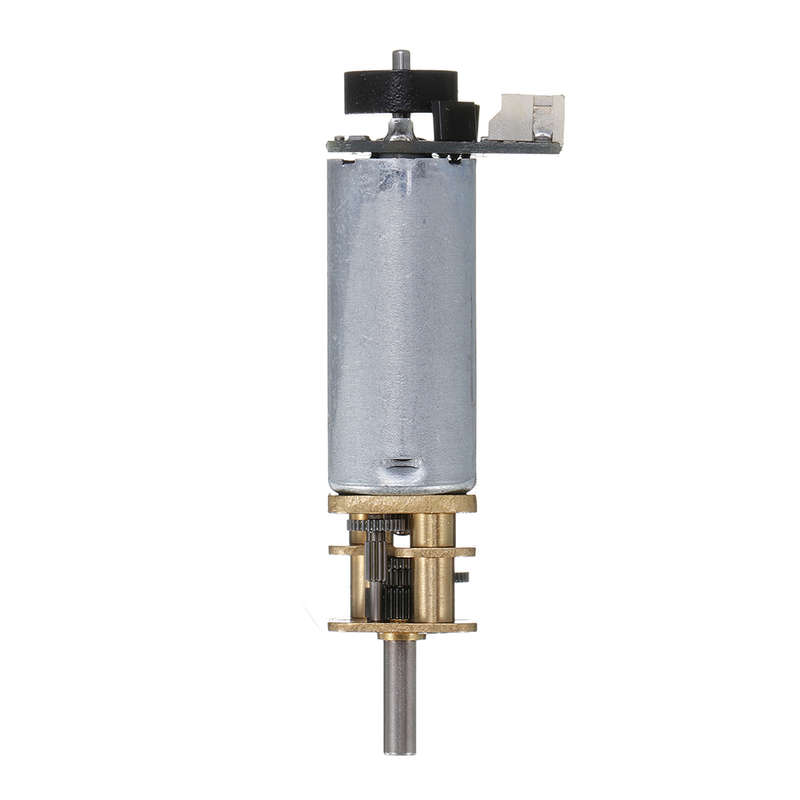

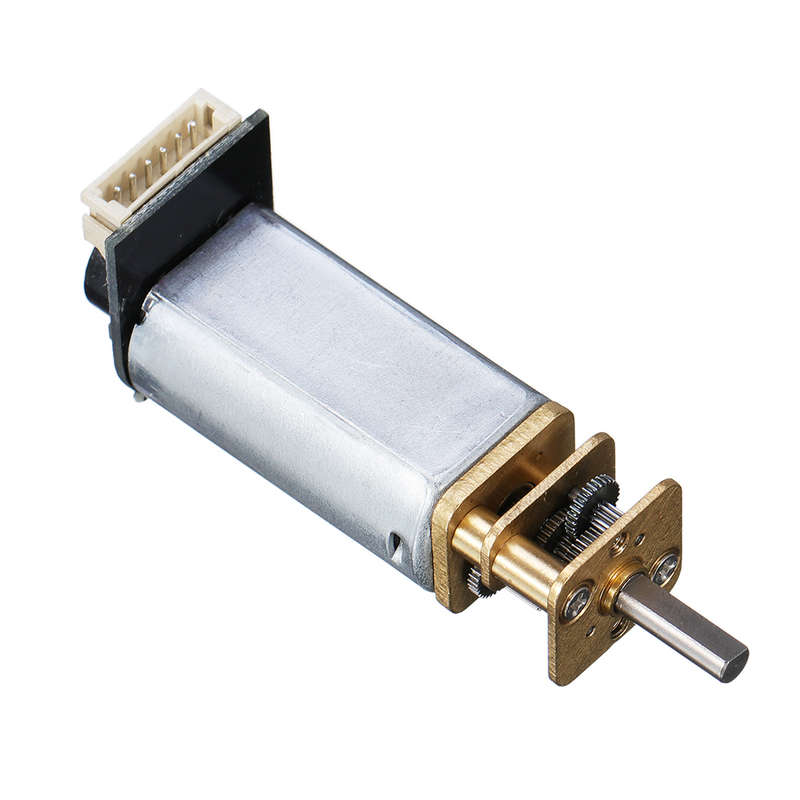

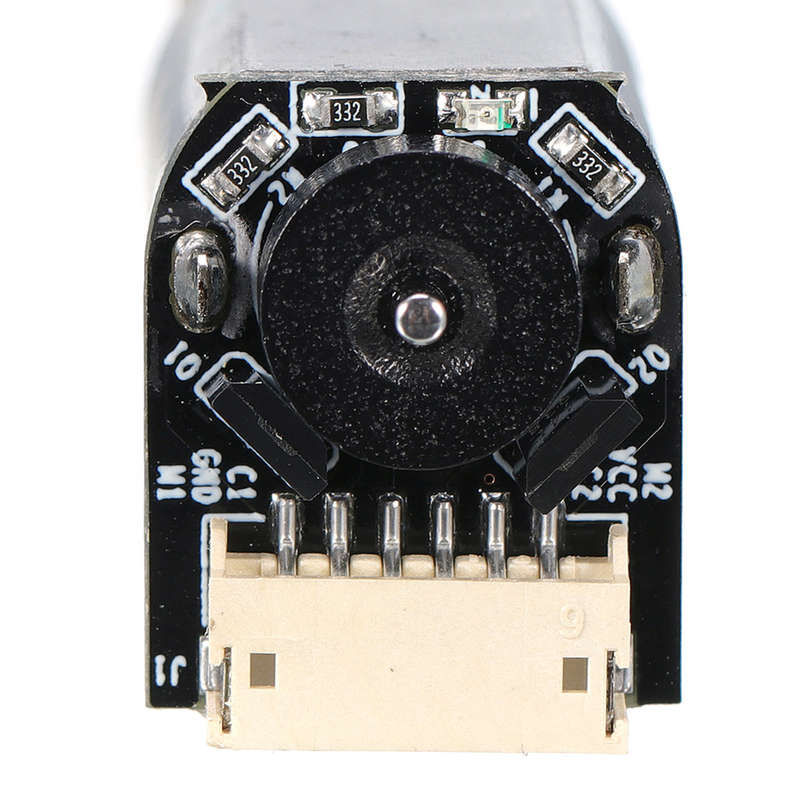

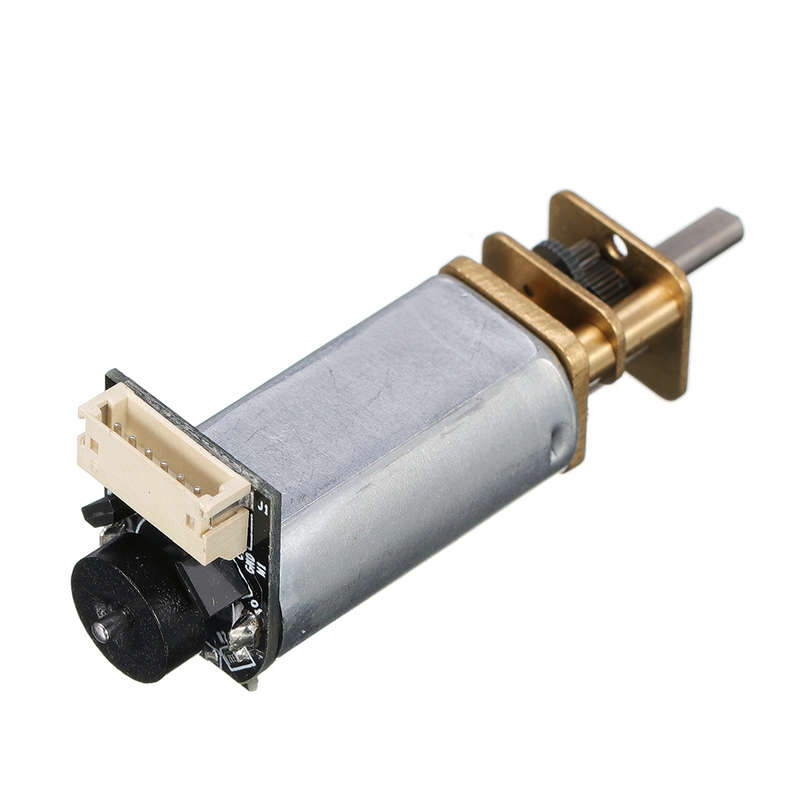

Chihai DC 12V Gear Motor Hall Encoder Motor

Specification:
Model:CHF-GM13-050SHV
Voltage:DC 12V
Quantity: 1pcs

Type	Ratio	Signal	No load speed (rpm/min)	No load current (mA)	Rated speed (rpm/min)	Ratedcurrent (A)	Rated torque (kg.cm)	Stall current (A)	Stall torque (kg.cm)
#1	1:10	70	1600	a80	1250	a0.35	0.15	a1.4	a0.6
#2	1:20	140	800	a80	630	a0.35	0.30	a1.4	a1.0
#3	1: 35	245	460	a80	355	a0.35	0.5	a1.4	a1.8
#4	1: 63	441	255	a80	200	a0.35	0.9	a1.4	a2.5
#5	1: 86	602	185	a80	145	a0.35	1.2	a1.4	can't exceed 3.0kg.cm
#6	1: 115	805	140	a80	110	a0.35	1.7	a1.4
#7	1: 150	1050	105	a80	83	a0.35	2.0	a1.4
#8	1: 250	1750	65	a80	55	a0.35	2.5	a1.4
#9	1: 360	2520	45	a80	38	a0.35	2.5	a1.4

Features:
High strength and high efficiency. Small resistance and strong conductivity.
Durable and long service life.
Package Included:

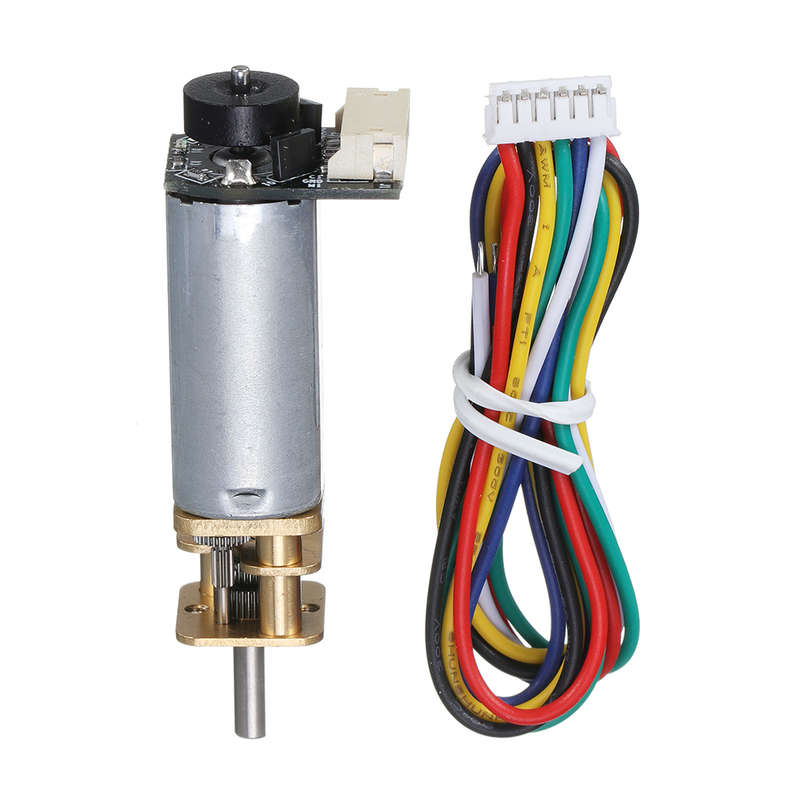

1 x Encoder Motor
