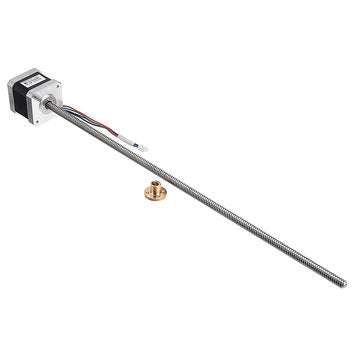

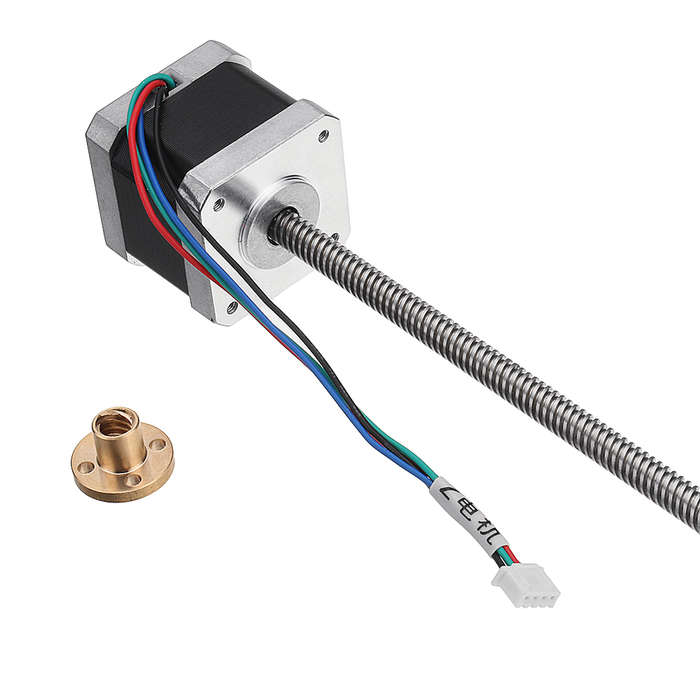

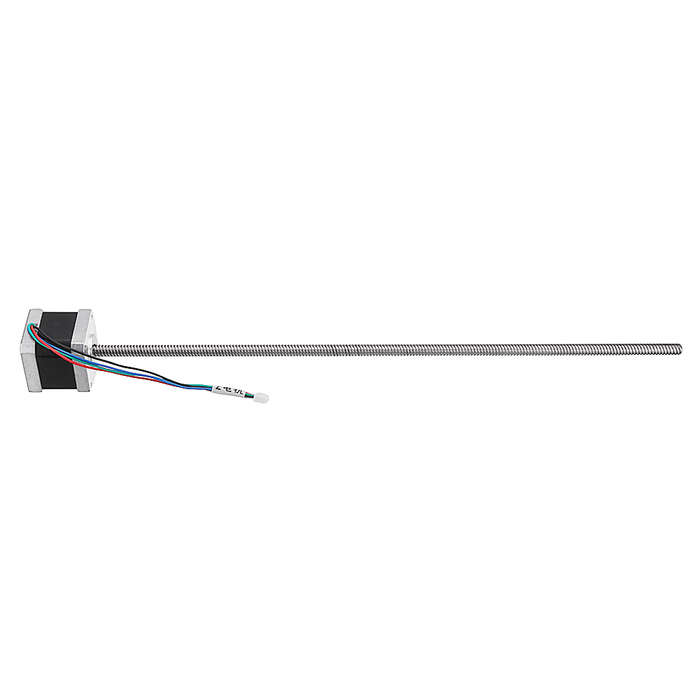

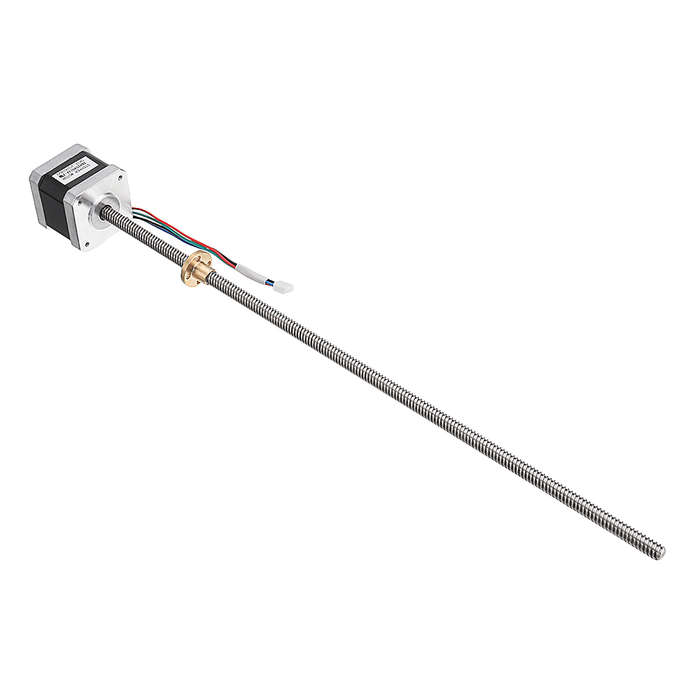

Machifit Nema17 42mm Stepper Motor with T8 380mm Lead Screw for CNC Engraving Machine

New

20 available

R845.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4030

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654102946

Description:
Machifit 42 stepper motor with T8 380mm leadscrewengraving machine fits for3D printer CNC tools.

Specification:

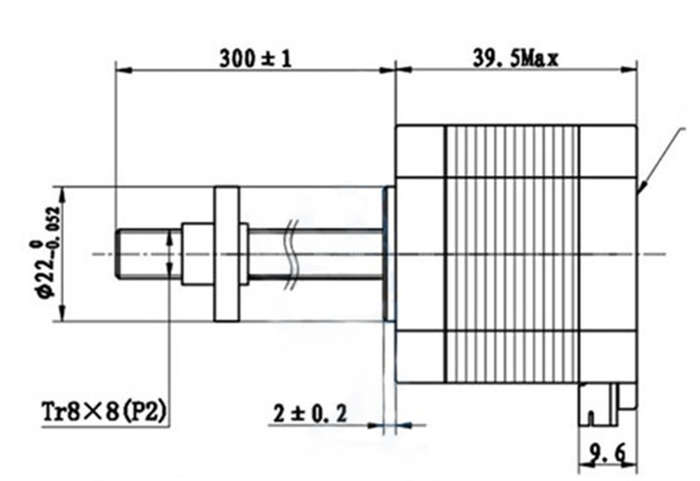

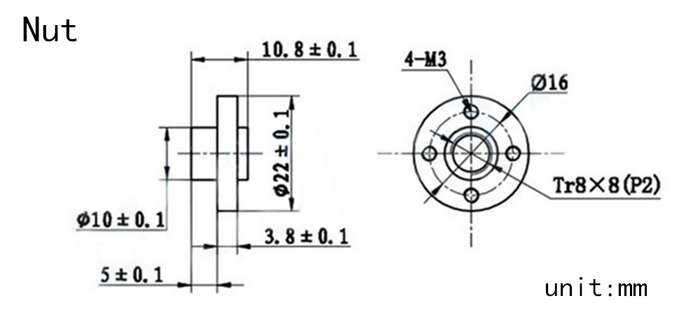

Screw: 8mm Lead: 8mm Length: 380mm Size: 42x39mm

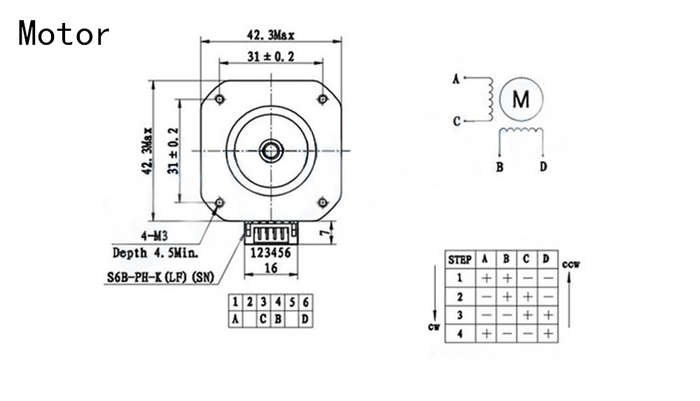

Technique parameter:

Phase	2
Step Angle	1.8ﾣ
Positions Accuracy	&pm;5%
Rotor Inertia	57 ( gf-c)
Holding Torque	4.0 (kg.cm)
RatedResistance/Phase	2.2&pm;10% () (20ﾣ)
Inductance/Phase	3.8&pm;20% (mH) (1kHz 1V rms)
Insulation Resistance	100 (M) Min. (DC 500V)
Insulation grade	B (130ﾣC)
Rated Current/Phase	1.5(A)
Rate Voltage	3.3V

Features:
1. Strengthen PCB board inside motor, high precision inside hole, stable speed. 2. The rotor has strong tightness, stable structure and no residue in the groove. 3. Stable torque, low noise, long service life.

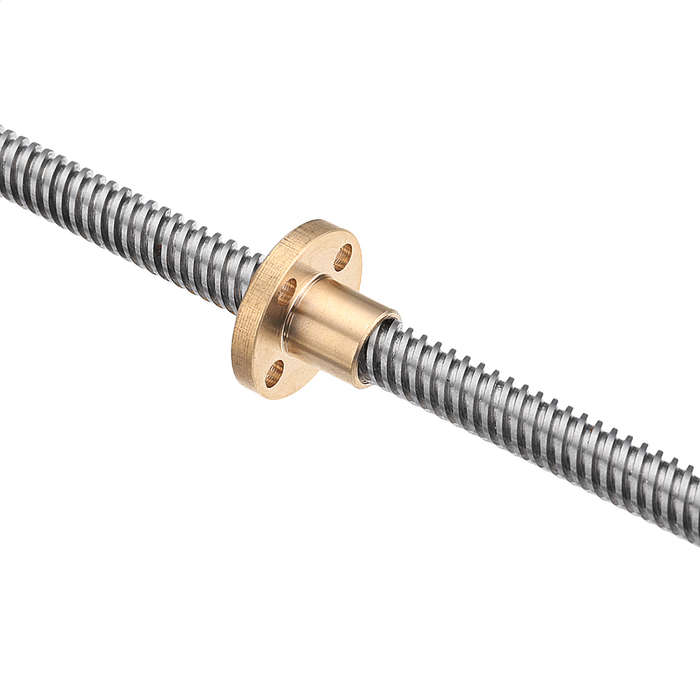

4. Screw mainly use for Stepping motor driving guide rail,machine tool, and other equipment.
5. Easy to install and convenient to use.
6. Suitable for Industrial automation equipment, stepper motor rails. 7. Fit for 3D printer; engraving machine; XYZ module; slider; lifts ect.
Package Included:

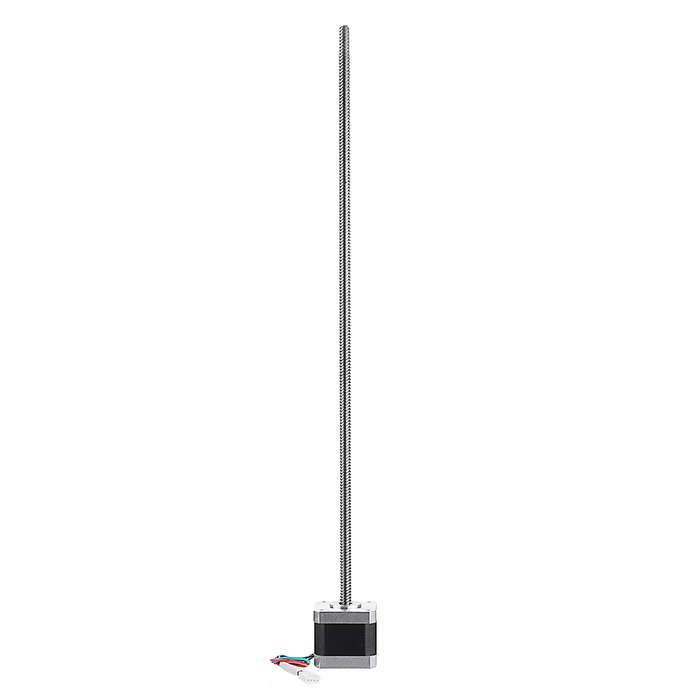

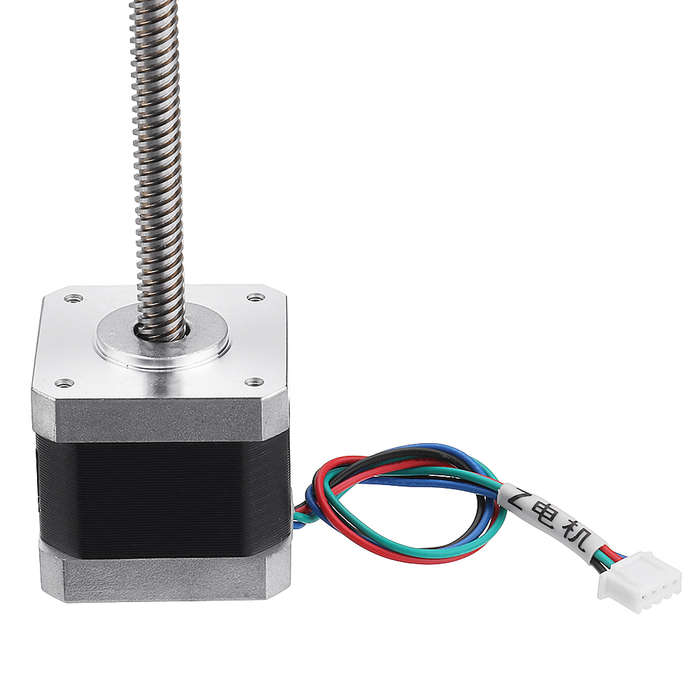

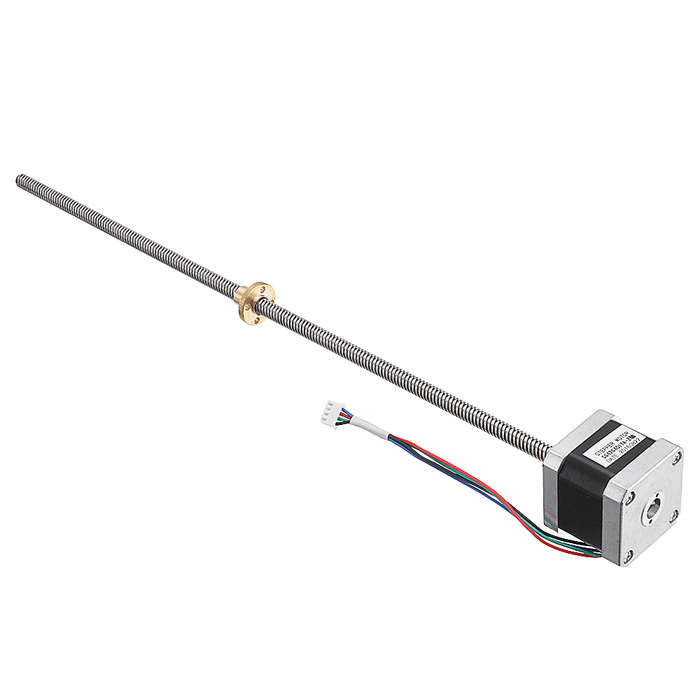

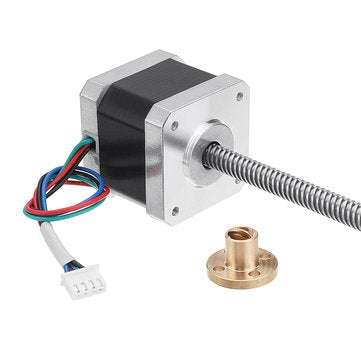

1 x 42 stepper motor(with 380mm screw)

More Details:
