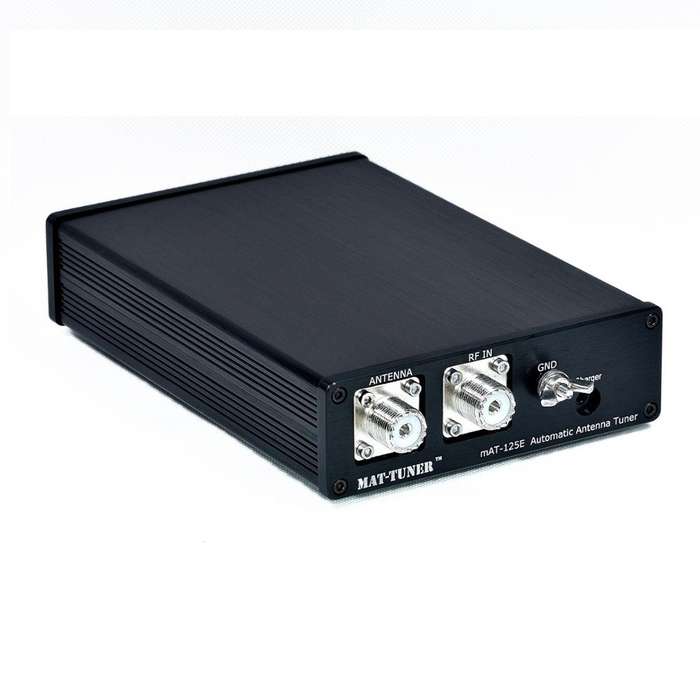

Magnetic Hold Version Mat-125E General Automatic Antenna Tuner 120W 1.8-54MHz HF Shortwave Built-in

Features:

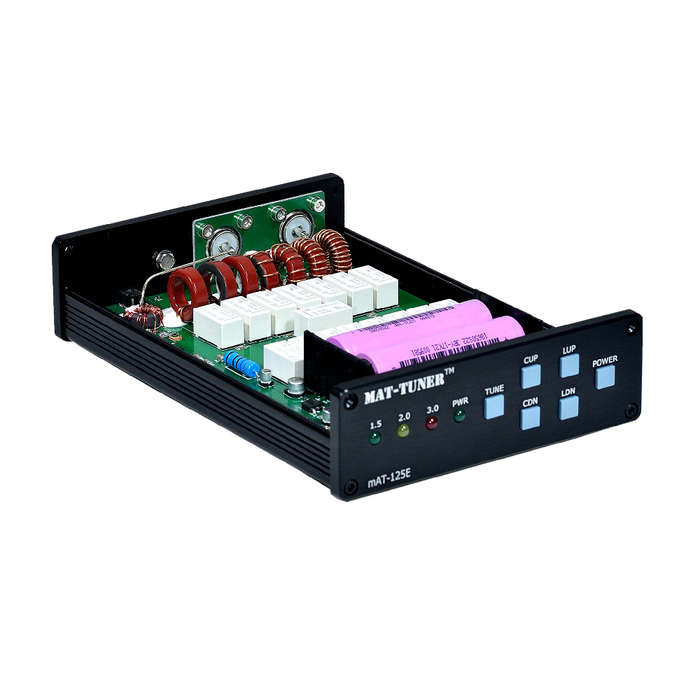

- The adjustment circuit uses Amidon magnetic ring and the original TDK capacitor to ensure stable operation, excellent performance and high efficiency; - The switch uses the silver-plated push button switch of the manufacturer C&K, which has a great feel;

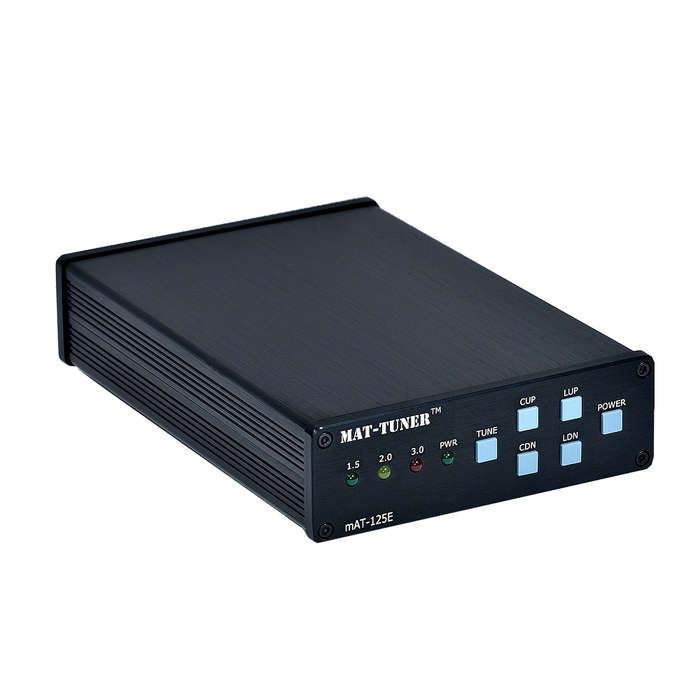

- The panel adopts LED to display the current standing wave ratio, which is intuitive and convenient; using macro-magnetic relay;
- The tuning speed is fast. The first adjustment is within 8 seconds. If the standing wave is less than or equal to 1.5, the data is automatically stored. The adjustment time is shortened to less than 0.5 seconds in the next use, and not afraid of power down;
- Small power can be adjusted, using 5-20W can be accurately adjusted, the minimum power of 5W, the maximum power of 120W.

Specification:
Maximum power: 120W Working frequency: 1.8M-54MHz Working mode: fully automatic + manual fine tuning Adjust standing wave: Most antennas can be adjusted to below 1.5 standing waves Working voltage: 8.4V, built-in two 18650 lithium battery, working current less than 0.02A, with special charger Antenna impedance: 5-1500?? Dimensions: 130mm(W)*200mm(L)*40mm(H) Net weight: 800g
Packing Includes:

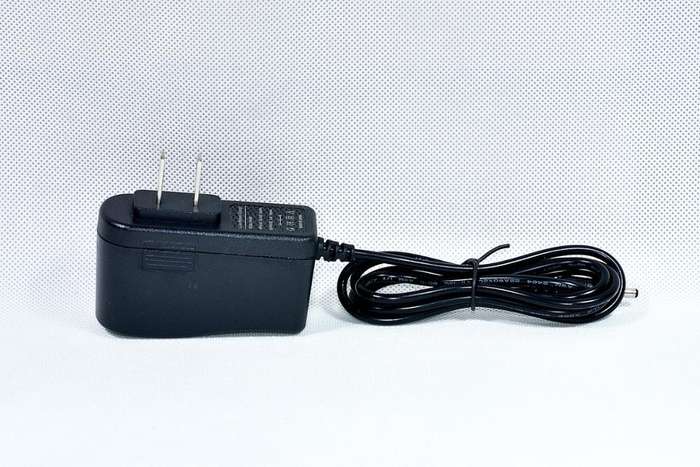

1*MAT-125E Automatic Antenna 1*Special Power Charger(US plug) 1*English Manual
Details Pictures:
