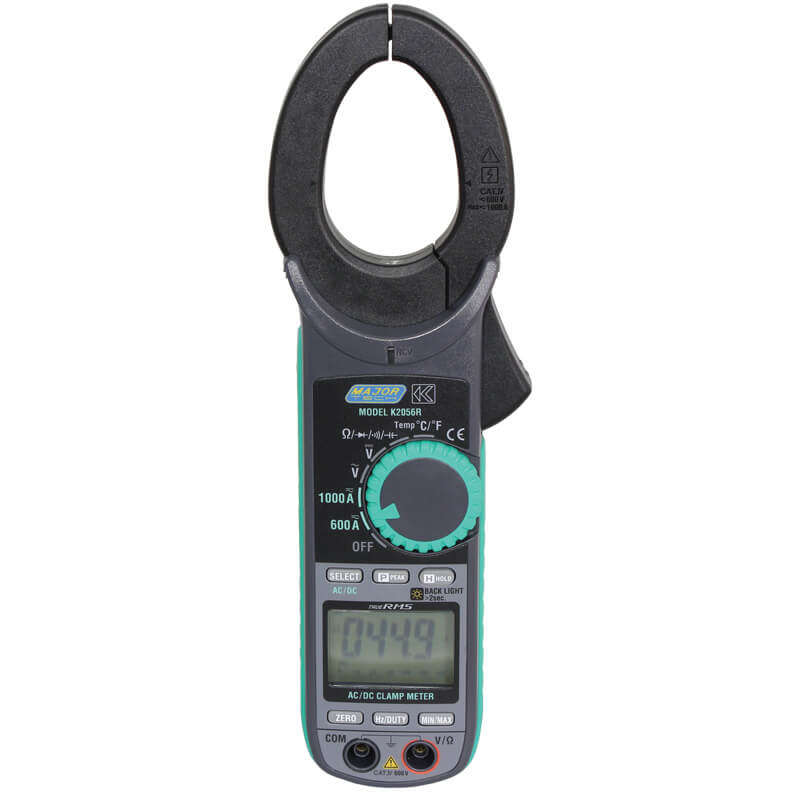

MAJOR-TECH - 1000A AC/DC TRMS Clamp Meter, CAT IV 600V K2056R

1000A AC/DC TRMS Clamp Meter, CAT IV 600V

6039 count backlit LCD display with 61 segment bargraph
Ø40mm Cable Clamp size
Measurement of AC/DC Current up to 1000A
Measurement of AC/DC voltage up to 600V
Temperature Measurement -50°C to 700°C
Capacitance to 4mF
Resistance to 60M
Frequency Measurement to 10kHz
Continuity Buzzer and Diode Test
Peak Hold and Data Hold
Relative Mode, MIN/MAX recording mode
Double Moulded housing provides comfortable palm grip

The K2056R is a 1000A AC/DC True RMS Clamp Meter, one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V and meets the demands for measuring voltage and current spikes. As electrical distribution systems become more complex, the chances of voltage spikes are always increasing, and these spikes are superimposed to normal mains voltage waveform. The instrument is not purposely designed to withstand these high voltage spikes, it will blow and a potential arc blast can create a life threatening situation for the end user. The K2056R is a digital clamp meter with the capability to read current up to 1000A AC/DC. The K2056R model features the ability to utilize True RMS measurements, providing greater accuracy on non-sinusoidal waveforms, thus useful for power distribution companies, power utilities and maintenance fields

Accessories:
Carrying Case
AA Batteries
Test Leads
Instruction Manual
COC
