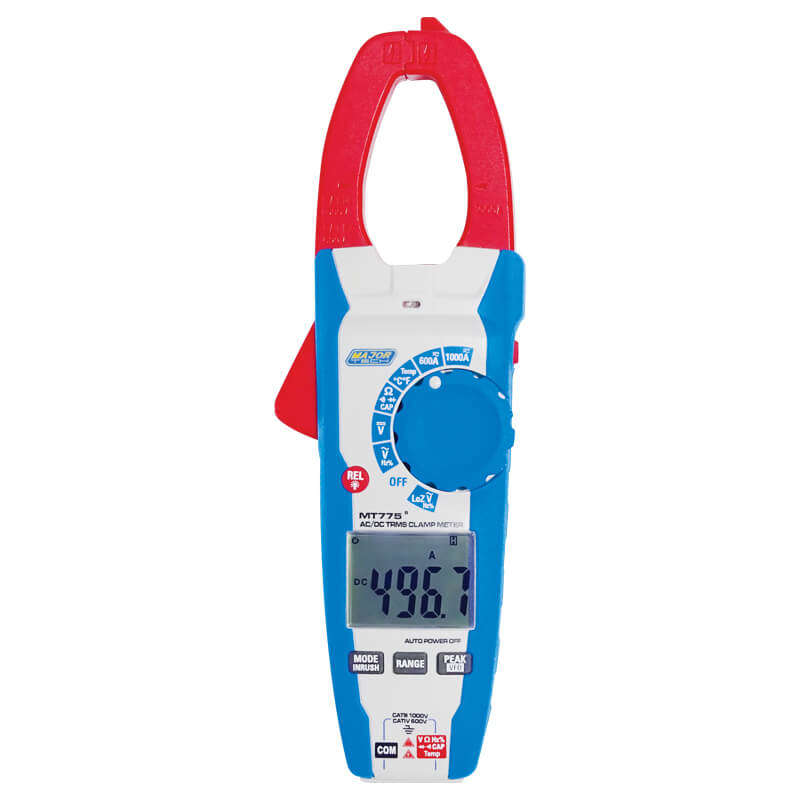

MAJOR-TECH - 1000A AC/DC TRMS Clamp Meter, CAT IV 600V MT775

1000A AC/DC TRMS Clamp Meter, CAT IV 600V

6000 count backlit LCD display
Ø33mm Cable Clamp size
Measurement of DC voltage and AC voltage up to 1000V
Capacitance to 100mF
Temperature measurement from -20C to 1000C
INRUSH Current Measurements
VFD Variable Frequency Drive voltage value
LoZ Low impedance mode prevents false readings due to "Ghost" voltage
NCV Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode and Data Hold function
Auto Power Off

The MT775 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by "Ghost" voltages. Added features include Relative mode for DCA and Capacitance Zero and offset adjustment, Non-Contact voltage detection, data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Accessories:
Test Leads
Type-K Wire Probe
Type-K Adaptor
Carrying Case
3 x AAA Batteries
Instruction Manual

Test Leads
Type-K Wire Probe
Type-K Adaptor
Carrying Case
3 x AAA Batteries
Instruction Manual
