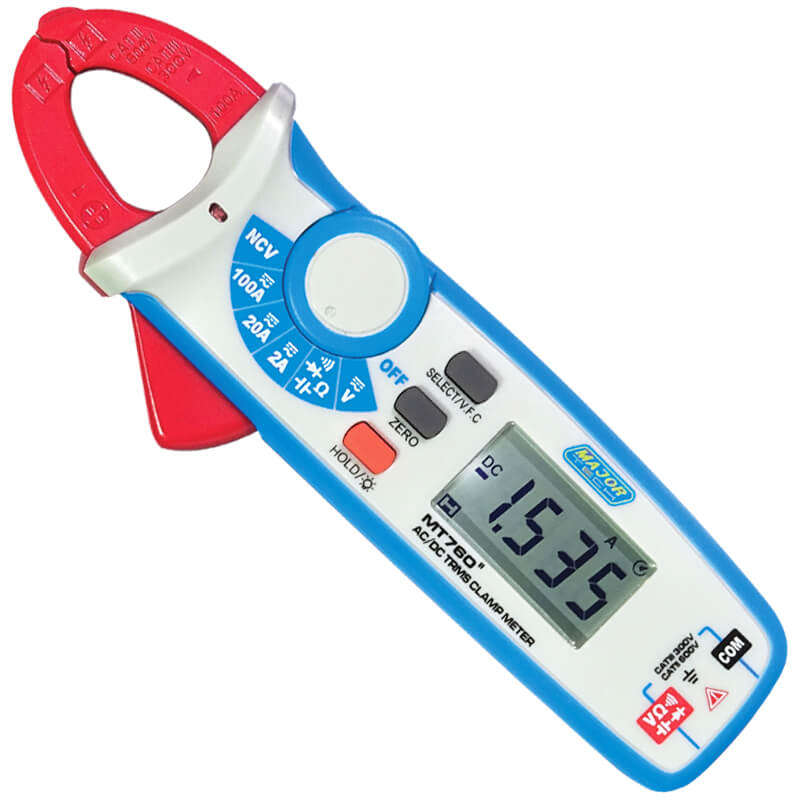

MAJOR-TECH - 100A AC/DC TRMS Clamp Meter, CAT III 300V MT760

100A AC/DC TRMS Clamp Meter, CAT III 300V

Current measurement from 1mA
Measures AC and DC current to 100 Amps
Ø17mm Cable Clamp size
2000 count backlit LCD display
Measurement of DC voltage and AC voltage up to 600V
Capacitance to 20mF
VFC Variable Frequency Drive voltage value
Microprocessor Zero adjustment
NCV Non-Contact Voltage Detector
Continuity buzzer and Diode Test
Data Hold function
Auto Power Off

The MT760 is a 100A AC/DC Clamp Meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/ Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non-Contact voltage detection. Housed in a modern double moulded rubber housing.

Accessories:

Test Leads
Carrying Case
2 x AAA Batteries
Instruction Manual
