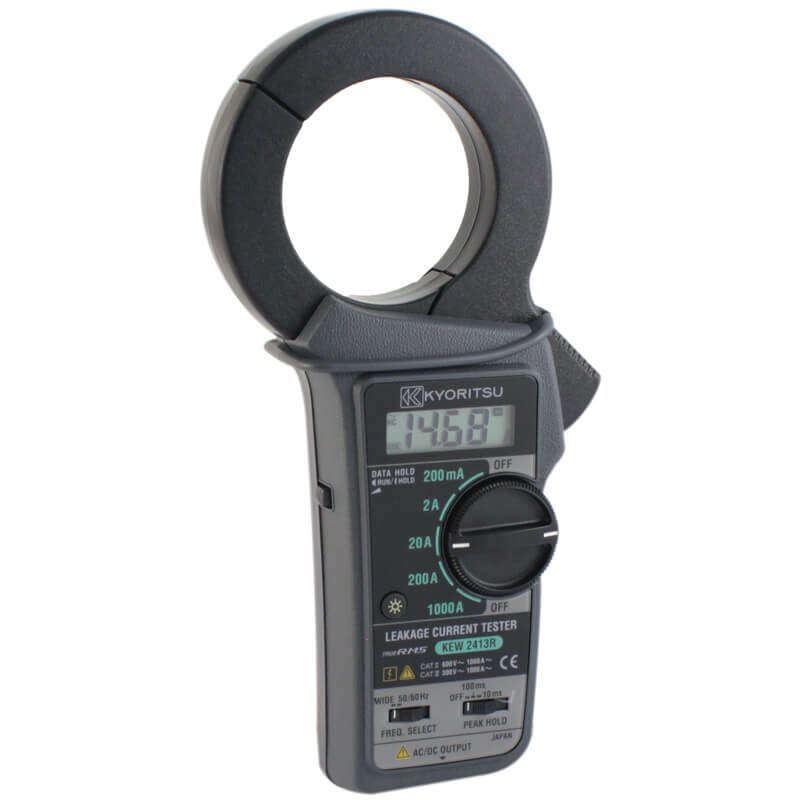

MAJOR-TECH - 100A AC TRMS Leakage Clamp, CAT III 300V K2413R

100A AC TRMS Leakage Clamp, CAT III 300V

True RMS
Ø68mm Cable
Measures AC current up to 1000 Amps
0.1mA Resolution
Extra wide transformer jaws for clamping on all wires
AC output terminal for waveform viewing on oscilloscopes
Output terminal for recording current input
Dual frequency response of fundamental 50/60Hz only or from 20Hz to 1kHz
Shielded transformer jaws minimize the effect of external or stray magnetic fields
Auto Power Off

The K2413R is a 1000A AC TRMS Leakage Clamp Meter, with the wide 68mm transformer jaws. The K2413R is best suited for clamping on all three or four wires together on three phase systems for leakage current measurements. The Peak Hold facility has a selectable response time of 10ms or 100ms and features a frequency filter switch which permits AC leakage current of 50/60Hz fundamental frequency only or including harmonics.

Accessories:
Carrying Case
9V Battery
Instruction Manual
Output Jack
COC
