MAJOR-TECH - 250/500/1000V Analogue Insulation Tester, CAT IV 600V MT500

250/500/1000V Analogue Insulation Tester, CAT IV 600V

Three test ranges 250V-500V-1000V
600V AC voltage range
Live Circuit warning and buzzer
Data Hold function
1mA output current on insulation test
200mA short circuit on continuity range
Automatic discharge after test
Front panel zero adjustment for test lead resistance
Lock down Test Button for continuous use
Hands free strap and magnet supplied as standard accessories
Rubber overmould housing
Illuminated display

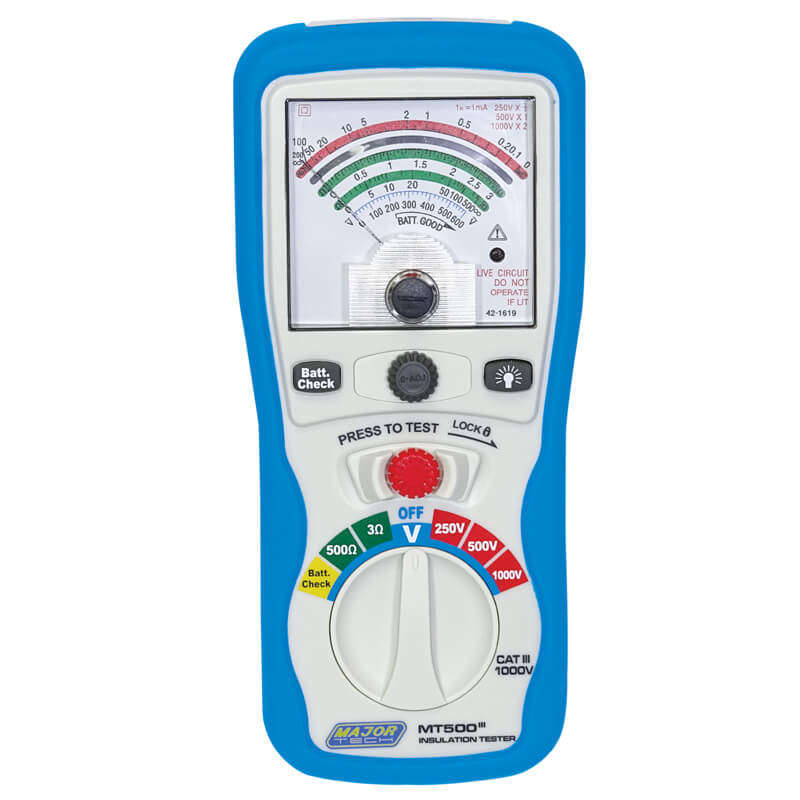

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3 continuity range and a 500 resistance range. This meter is not only equipped with a "Live Circuit Warning" but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.

Accessories:

Test Leads
Black Crock Lead
Magnetic Strip
Carrying Case
Adjustable shoulder strap
6 x AA Batteries
Instruction Manual
