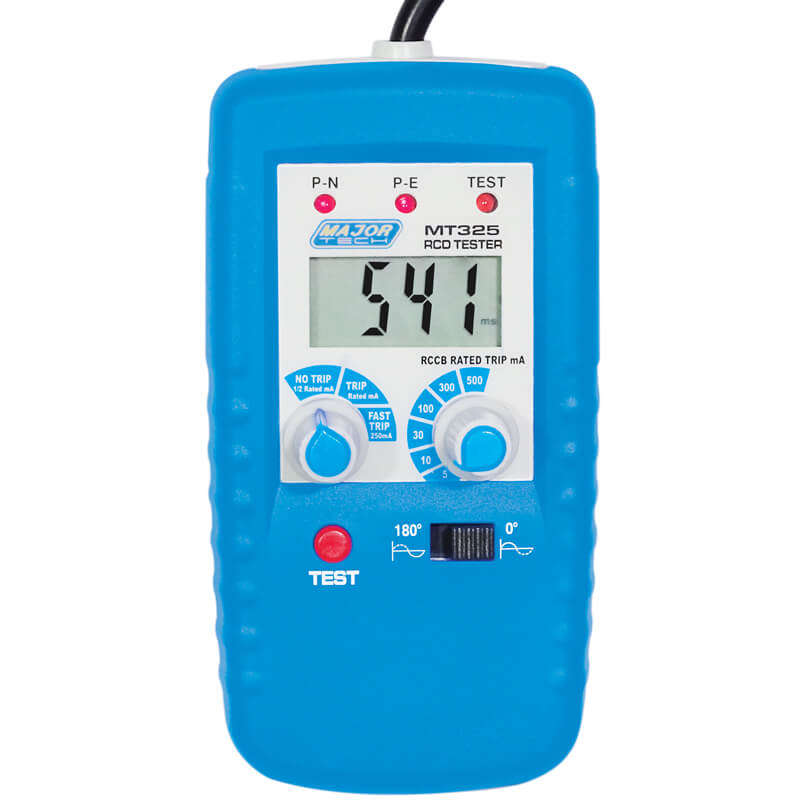

MAJOR-TECH - Digital RCD Tester, CAT IV 300V MT325

Digital RCD Tester, CAT IV 300V

CAT IV 300V and CAT III 600V
Double injection housing
Correct wiring indication
2000ms Direct readout of disconnection time
Fully programmed test current settings
Accurate readout of tripping time with a resolution of 1ms
Two LED lamps give quick check for correct wiring
Compact, lightweight and simple to use
0° or 180° Phase angle selection
Current setting from 5mA to 500mA
Operating voltage 230V AC
Data Hold function to freeze the digital trip time on the LCD

The compact MT325 is lightweight and easy to use and operates on 230V AC circuits while offering high accuracy measurement and good performance. Features include pre-programmed tripping current ranges for speed of use, with direct readout of disconnection time with a resolution of 1ms, neon indication of correct wiring status. Consistent results are obtained with the 0° and 180° phase angle select switch, thus eliminating the need for repeat tests.

Accessories:
Instruction Manual
