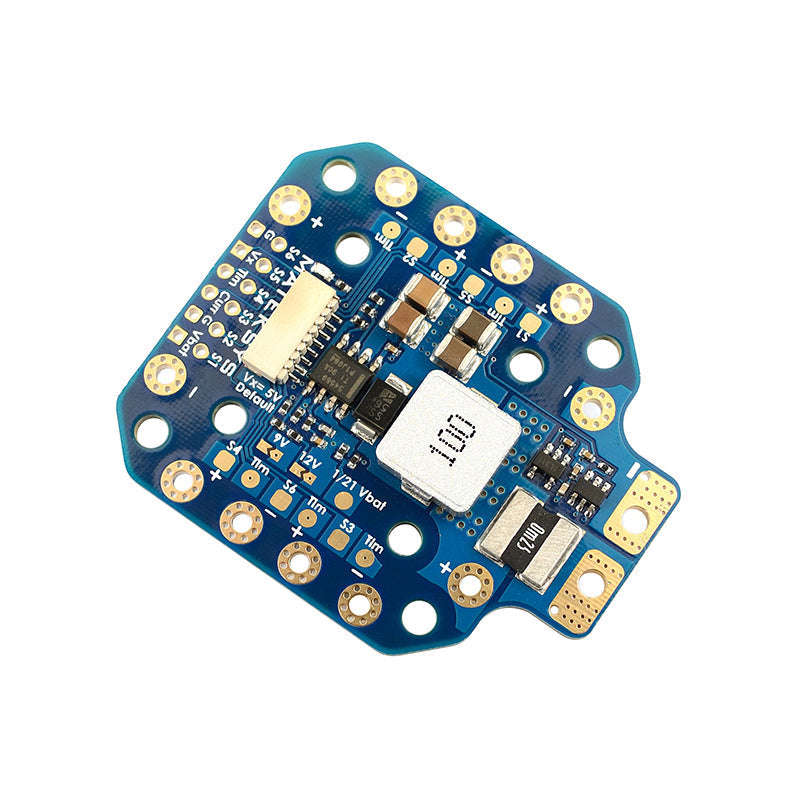

Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S
Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S Matek PDB-HEX, 12S

Matek PDB-HEX, 12S

5 available / new
Only 5 left – grab it before it’s gone!
R511.25
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAT036
Bob Shop ID
619972871

PDB

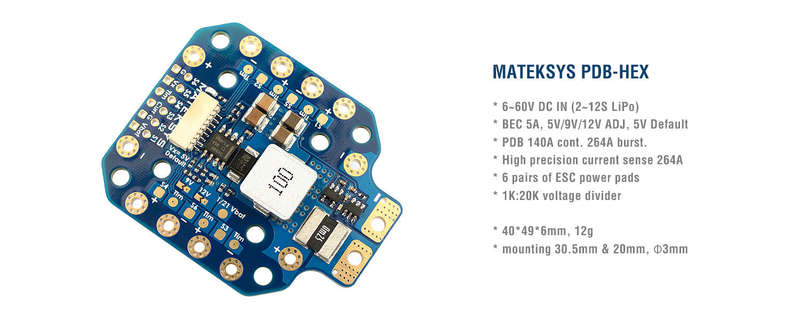

  • Input voltage range: 6~60V (2~12S LiPo)
  • PDB/current sense resistor: 140A cont, 264A burst.
  • ESC power pads: 60A cont. 100A burst
  • 6x ESC power /signal/ telemetry pads
  • Current Senor: 264A,  3.3V ADC
  • Current Scale 125(INAV/BF), BATT_AMP_PERVLT 80 (ArduPilot)

JST-SH-8P Connector and Pads

  • Vbat: Battery voltage
  • G: ground
  • Curr: current signal
  • Tlm: Duplicates Tlm pads for ESC telemetry
  • S1/S2/S3/S4/S5/S6: ESC signal
  • Vx: Regulator output

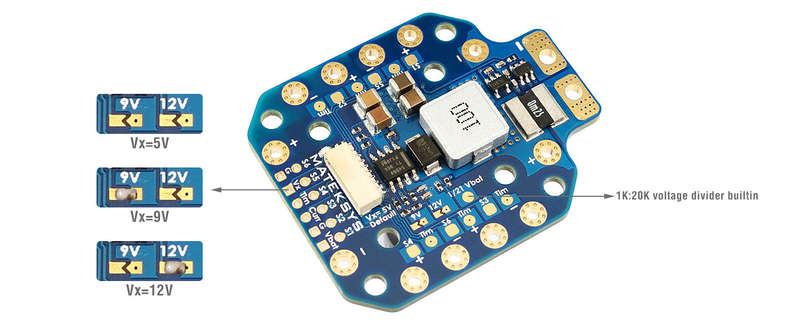

BEC Vx output (5V default)

  • Vx= 5V by default,  Continuous 5 Amps
  • Bridge 9V jumper, Vx= 9V, Continuous 4 Amps, Max.5A
  • Bridge 12V jumper, Vx= 12V, Continuous 4 Amps, Max.5A
  • Output Short-circuit tolerant (1 seconds)
  • Overcurrent protection & self-recovery

Voltage divider

  • 1K:20K resistors
  • Output 1/21 Vbat voltage

Physical

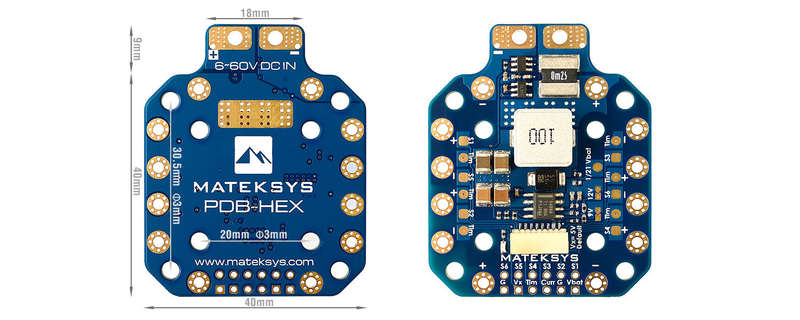

  • Mounting: 30.5 x 30.5mm, 20 x 20mm, 3mm
  • Dimensions: 49 x 40 x 6 mm
  • Weight: 12g

Including

  • 1x PDB-HEX

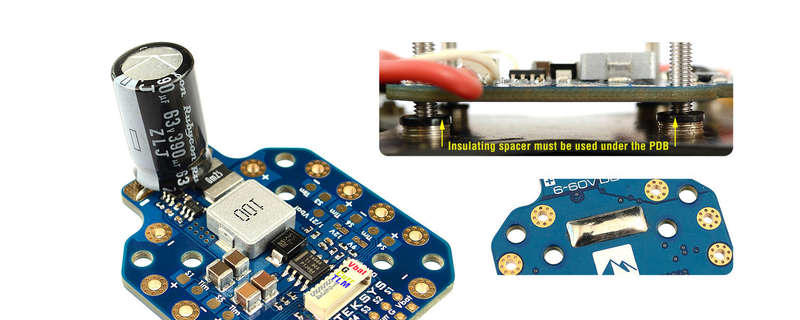

  • 1x Rubycon ZLJ 63V 390uF
  • 1x JST-SH1.0_8pin cable, 5cm
  • 2x JST-SH1.0_8pin connectors
