Matek AP_PERIPH CAN MAGNETOMETER RM3100

• CAN-L4-3100 is a professional grade CAN Magnetometer based on RM3100 & ArudPilot AP_Periph firmware.
• RM3100 sensor technology provides high resolution, low power consumption, large signal noise immunity, a large dynamic range, and high sampling rates. Measurements are stable over temperature and inherently free from offset drift.

Specifications

• PNI RM3100 Geomagnetic Sensor

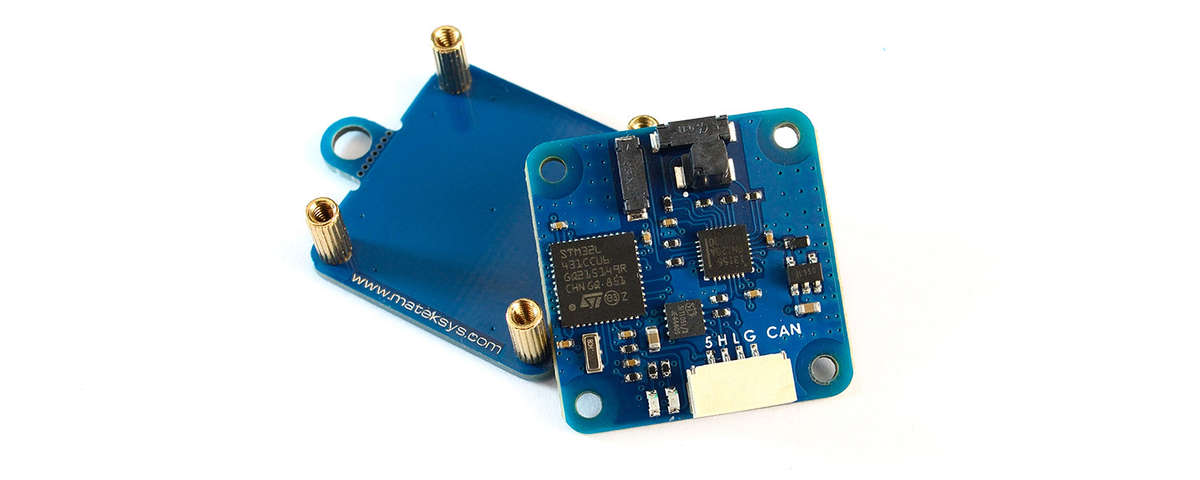

• CAN node MCU: STM32L431xC, 256KB Flash

• Interface
  • CAN, DroneCAN Protocol
  • UART2, MSP output (MatekL431-Periph fw)
  • UART3, for external GNSS module
  • ST debug, SWCLK & SWDIO

• LED
  • Blue, Fast blinking,  Booting
  • Blue, Slow blinking, working
  • Red, 3.3V indicator

• Power supply for CAN-L4-3100 board : 4.5~5.5V  @5V pad/pin
• Power consumption: 22mA
• Operating Temperatures: -40~85 °C

• Physical

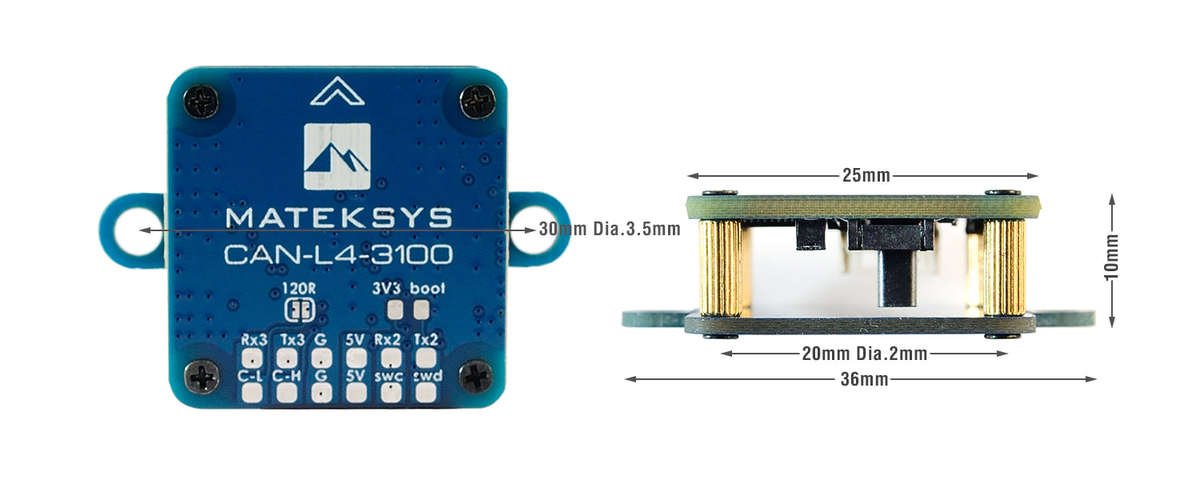

  • Board Size: 36mm*25mm*10mm.  6g
  • 3D File CAN-L4-3100_step.zip

• Firmware
  • ArduPilot AP_Periph: MatekL431-GPS  or MatekL431-Periph
  • Update via DroneCAN GUI Tool or Mission Planner (AP_Periph.bin)
  • Update via STLink (AP_Periph_with_bl.hex)

• Parameters
  • CAN_P1_DRIVER = 1 if attached to CAN bus1 port or CAN_P2_DRIVER = 1 if attached to CAN bus2 port
  • COMPASS_AUTODEC  = 1

Packing

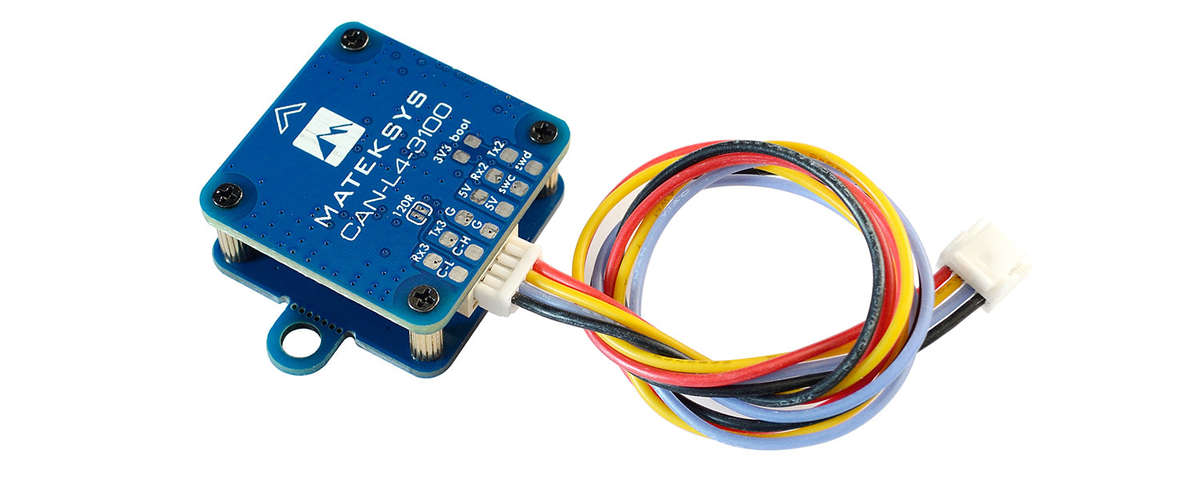

• 1x CAN-L4-3100 board
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

Tips

• CAN-L4-3100 is pre-installed with "MatekL431-GPS" firmware.
• MSP feature is disabled in "MatekL431-GPS".   If you want to use MSP feature,  reflash it with "MatekL431-Periph" firmware(AP_Periph_with_bl.hex) over SWC/SWD pads via ST-LINK.
• Put magnetometer far from power lines/ESC/motors/iron based material. >=10cm
• 2 ears for mounting can be cut off if you don't need it.
• If the CAN wires are too long, bridge the "120R" jumper.
