Matek AP_Periph CAN RC Input Adapter

Matek AP_Periph CAN RC Input Adapter

9 available / new
R348.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAT068
Bob Shop ID
597987253
  • CAN-L4-RC is an Adapter Node based on ArudPilot AP_Periph firmware.
  • Using this adapter to turn Serial receiver into CAN receiver.

Specifications

  • MCU: STM32L431xC, 256KB Flash
  • 1x CAN, DroneCAN Protocol
  • 1x UART(UART3, Tx3/ Rx3)
  • ST debug, SWCLK & SWDIO
  • LED
    • Blue, Fast blinking,  Booting
    • Blue, Slow blinking, working
  • Input voltage range: 4.5~5.5V  @5V pad/pin
  • Power consumption: 10mA
  • Operating Temperatures: -40~85 °C
  • Physical
    • 1x JST-GH-4P(SM04B-GHS-TB) for CAN
    • 2.54mm pitch holes for UART3

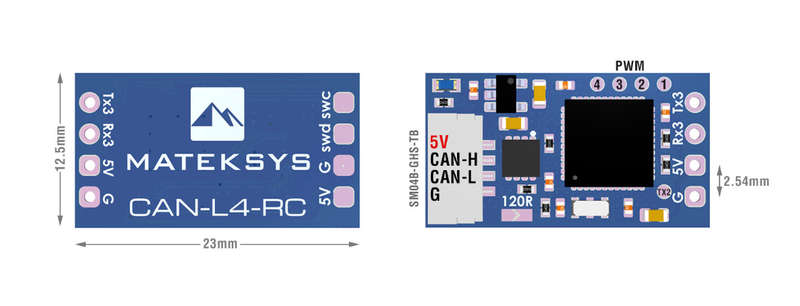

    • Board Size: 23mm*12.5mm.  2.5g
    • 3D file : CAN-L4-RC_STEP.zip
  • Firmware
    • ArduPilot AP_Periph  MatekL431-RC
    • Update via DroneCAN GUI Tool

Packing

  • 1x CAN-L4-RC board
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

CAN-L4-RCSerial Receiver
CRSFSBUSF.PortSRXL2
Tx3RXF.PortSRXL2
Rx3TXSBUS
5V5V5V5V5V
GGNDGNDGNDGND
SLCan Mode CAN1  > Parameters
or DroneCAN GUI > Node Properties
RC1_PORT_OPTIONS
0 default374


Tips

  • Supported by ArduPilot 4.5 or newer.
  • Receiver telemetry has not been implemented over DroneCAN
  • If the CAN wires are too long, bridge the "120R" jumper.
  • PWM 1~4 applications and setup,  pls refer CAN-L-PWM page.
  • CAN-L4-RC board can also be flashed with MatekL431-GPS firmware to convert serial GPS into CAN GPS.
