Material Kit: Fibreglass lining for 5m x 10m concrete swimming pools (upto 92m2)

Interior surface area or size of swimming pool:

• Upto 92 square meter

• 5m x10m pool with a depth of 1.4m


Overview of fibreglass pool lining or re-lining:

Click here for an overview the installation process of fibreglass swimming pool linings.

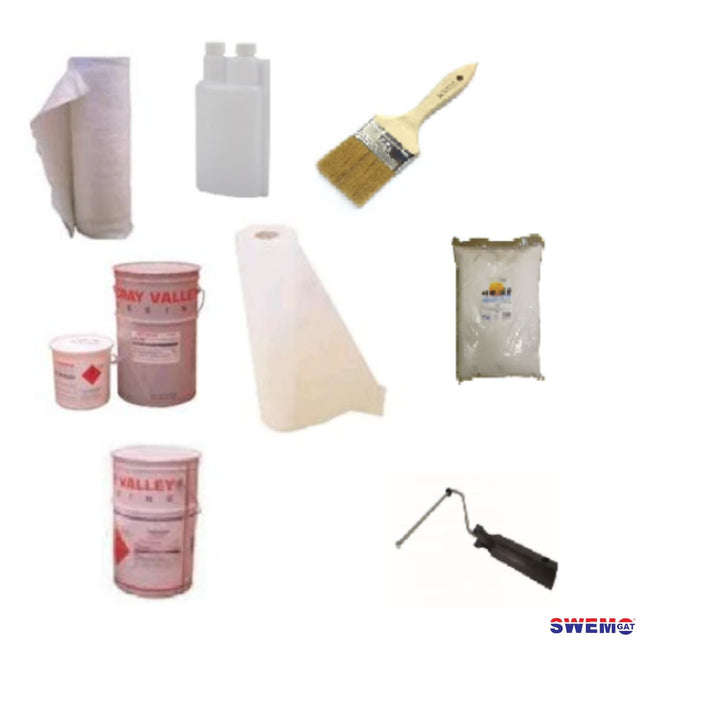

Contents of the kit:

The fibreglass materials, resin, top coat and consumables should of the kit should be enough in most cases for lining of swimming pools up to 92 m2 (square meter).

• • Fibreglass Mat
  • Surface Tissue
  • Top Coat
  • Resin
  • Catalyst Hardener
  • Fibreglass putty powder
  • Acetone
  • Rollers, paint brushes etc
• To view a list of quantities:
  • Add product to cart and go to checkout
  • A detail list of items will be displayed before confirmation of order


  Materials required for pattern on waterline and steps:


  1. Fibreglass tissue sheets with a mosaic-pattern on the waterline to hide scum-marks and to make underwater steps visible
  2. Clear Top Coat mixed with Catalyst to "glue and seal" the tissue sheets

  Other materials or tools that may be required:

  1. Other pictures and/or motifs are optional
  2. A paint & resin mixer to use with a drilling machince is good to ensure proper mixing
  3. Masking Tape

  4. P36 sanding disc and paper
  5. Rigid Sanding Disc C16


  Important:


  •  Add catalyst hardener to all top coats and resins (otherwise it will not cure and harden). Mix with Resin or Top Coat to a ratio of 1% to 3% per volume. Thus, mix 10ml catalyst in hot weather to 30ml in cold weather per 1L Top Coat or Resin to activate hardening process.

  • Fibreglass putty powder should be mixed with resin and catalyst to fill gaps and cut-ins where mat will be tucked in under coping tile; around the weir and inlet-spouts

  For specialist advise - us
