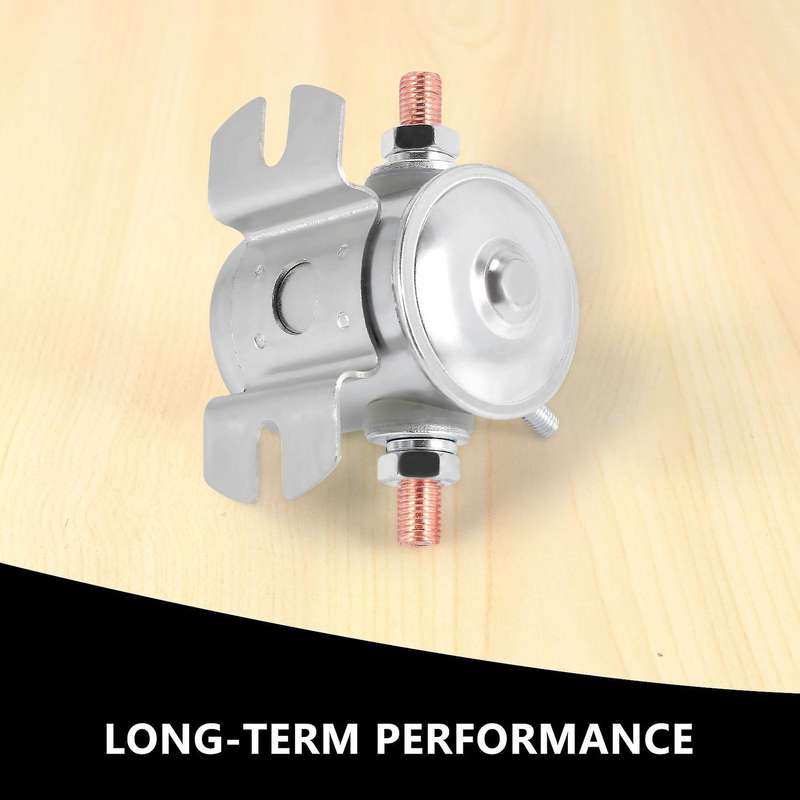

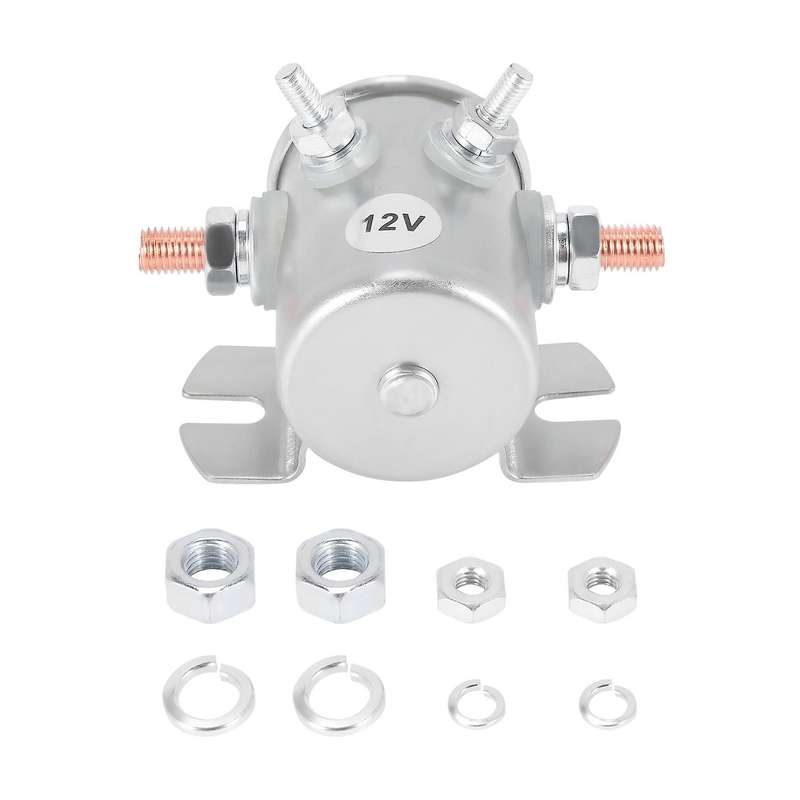

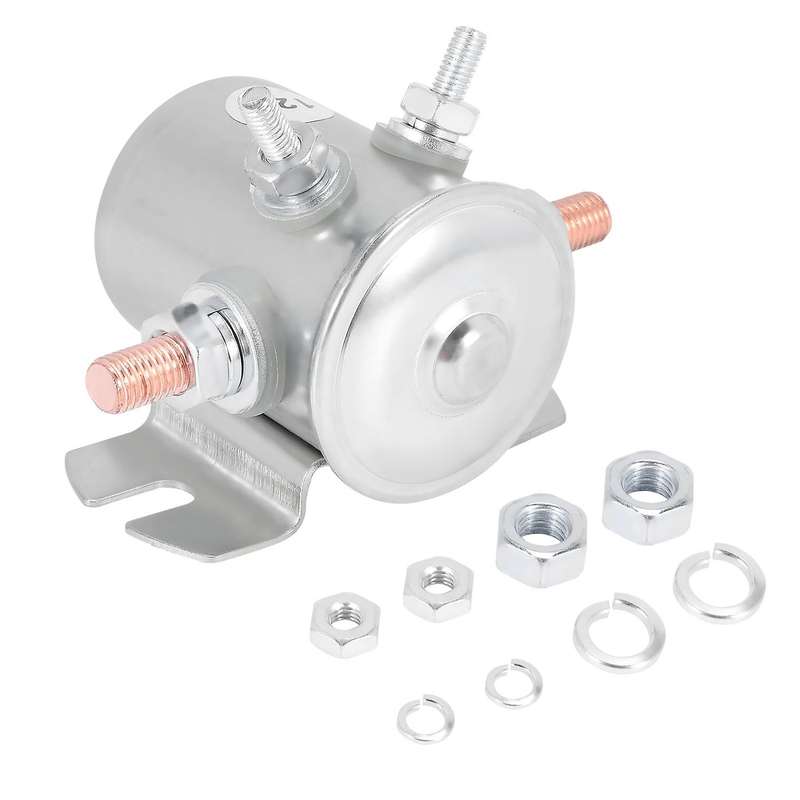

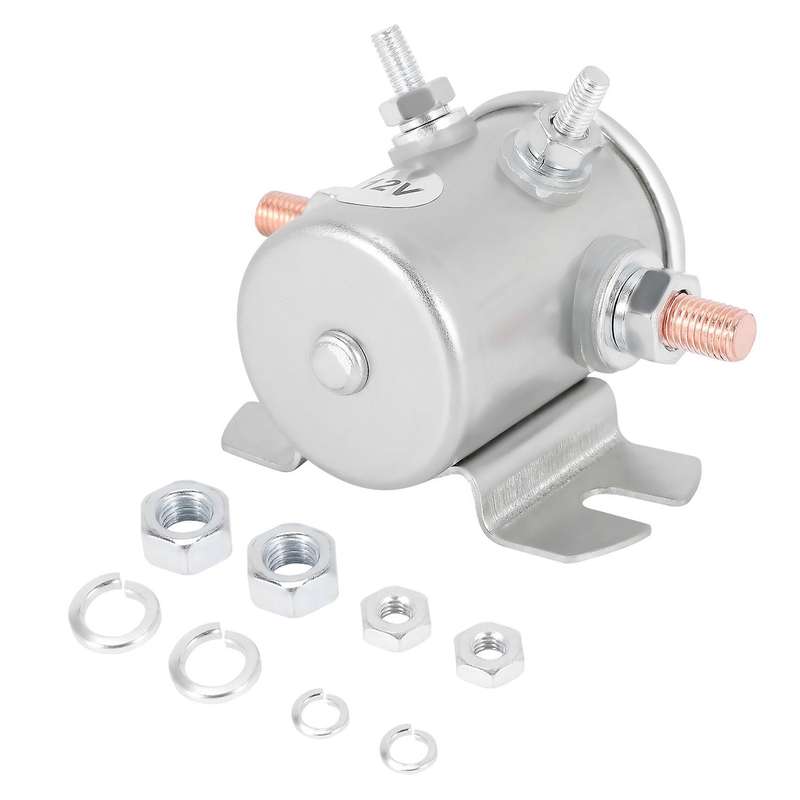

Max 300a Continuous Duty Solenoid Relay 12v Dc Solenoid for Golf Carts, ,marine In Rush

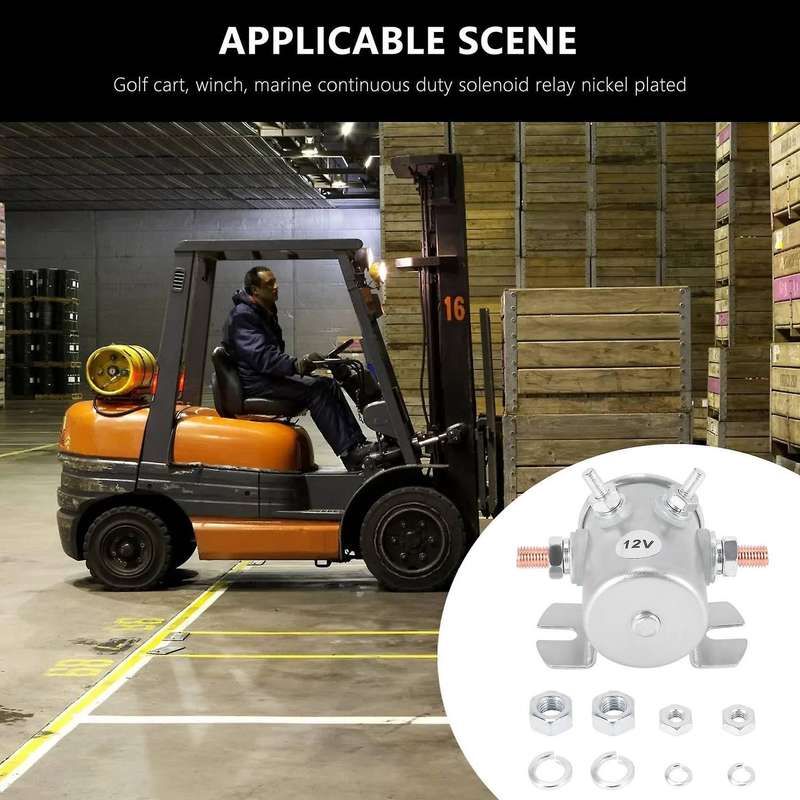

CIRCUIT CHARACTERISTICS-Single pole single throw with 2 Silver POINT. Resistance is 14, Capacity is 10.2W,12 V DC.HIGH QUALITY-Copper wire temperature resistance: 180 . Cover is -Plating, Meet Environmental Plating Requirment, and Avoid Rusting, ShiningFITMENT-300A Continuous Duty Solenoid Relay -Plating for Golf Carts,, MarineREPLACES-70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547.1. The product conforms to OC \/ t695-2002 relay standard2. There are no missing parts and fasteners are not loose;3. Voltage: 12 0.48v4. Circuit characteristics: single pole single throw5. Coil parameters: wire diameter: 0 . 4, number of turns: 1200, temperature resistance: 180 6. 12V: the starting voltage Less than 8V, the releasing voltage Less than 2.5V7. Coil winding resistance value test: 12V resistance value = 10 . 5Q 5 % ( 20 )8. White zinc plating on shell, 8 thick, 48 hours salt spray9. Insulation resistance: the sine wave voltage is 550V and the test lasts for 1min. The insulation will not be broken down10. Use temperature range (- 30 - + 85) degrees11. Relative humidity less than 90%12. Contact load current 300A, duration 3S; contact voltage drop less than 0.2V (20A)13. Maximum instantaneous current 600A (within 3 seconds)14. Winding skeleton 30% reinforced retardant nylon15. The durability of relay is tested more than 80000 when it is powered on aloneMaterial:metalcolour:SilverPackage Contents:1 x Solenoid Relay with accessoriesOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
