MAX7219 Dot Matrix Module 4-in-1 LED Display Module

20 available / new

R324.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128790

MAX7219 Microcontroller 4-in-1 Display Dot Matrix Module For

Specifications:

A single module can drive a 8x8 dot matrix common cathode
Working voltage: 5V

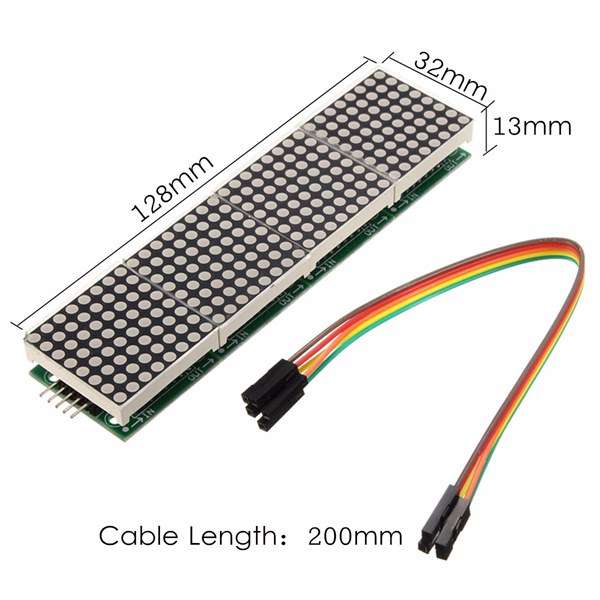

Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
With 64 fixing screw holes, hole diameter: 3mm

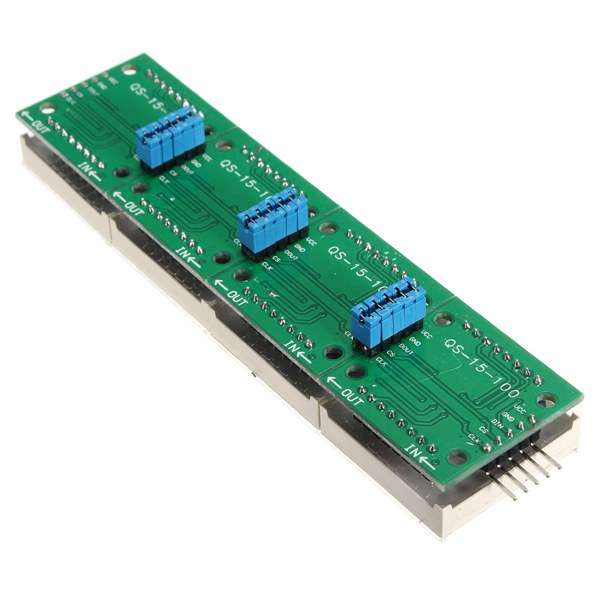

Module with input and output interfaces, support for cascading multiple modules

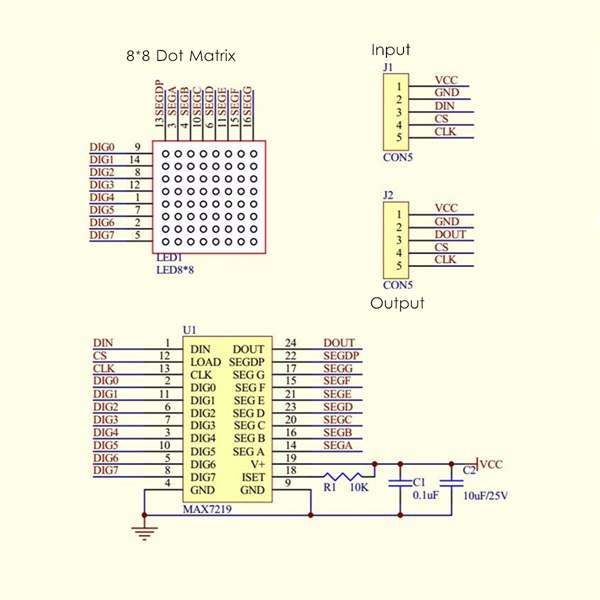

Wiring:

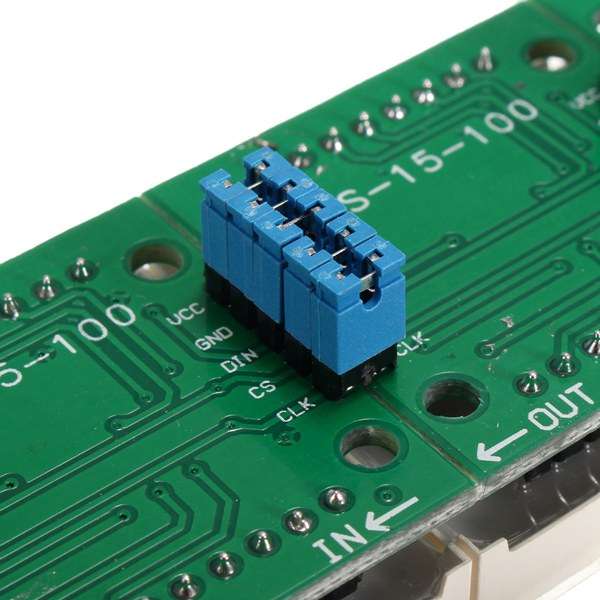

1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCCa5V
GNDaGND
DINaP2.2
CS aP2.1
CLKaP2.0

Package included:

1 x MAX7219 Dot Matrix Module
1 x 5pin Dupont Cable
