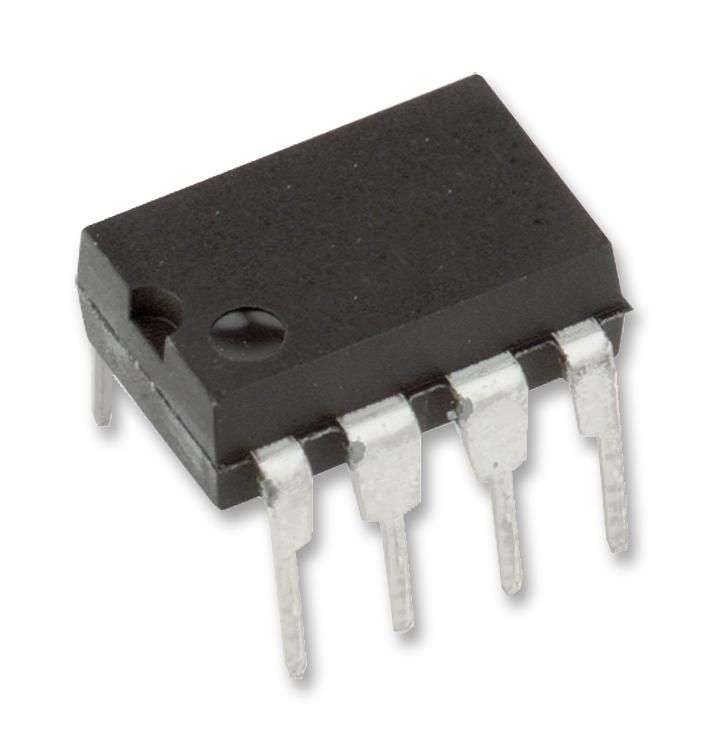

Maxim Integrated (ICM7555IPA+) Timer, Oscillator & Pulse Generator IC

Timer, Oscillator & Pulse Generator IC, CMOS RC Timer, 500 kHz, 2 V to 18 V,DIP-8Product OverviewThe ICM7555IPA+ is a general purpose timer in 8 pin DIP package. This singlegeneral purpose RC timer is capable of generating accurate delay or frequency.The primary feature is an extremely low supply current, making it ideal forbattery-powered system. Additional features include low threshold, trigger(complementary), reset (complementary) currents and improved performance at highfrequency. This CMOS low power device offers significant performance advantageover the standard 555 bipolar timer. The low power consumption combined withvirtually non- existent current spike during output transitions making timer theoptional solution in many applications. It is used in pulse generator, precisiontiming, pulse width modulation, pulse position modulation, sequential timing andmissing pulse detector.Supply voltage range is 2V to 18VOperating temperature range from -20°C to 85°CImproved 2nd sourceNo crow-barring of supply during output transitionAdjustable duty cycleTTL compatibleMonolithic, low power CMOS designThreshold voltage of 0.66VMaximum oscillator frequency fmax is 500KHz(min)ApplicationsClock & TimingProduct InformationFrequency: 500kHzSupply Voltage Min: 2VSupply Voltage Max: 18VDigital IC Case: DIPNo. of Pins: 8PinsOperating Temperature Min: -20°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
