Maxim Integrated (MAX7221ENG+) Display Driver, LCD 8 Digits, 7 Segments

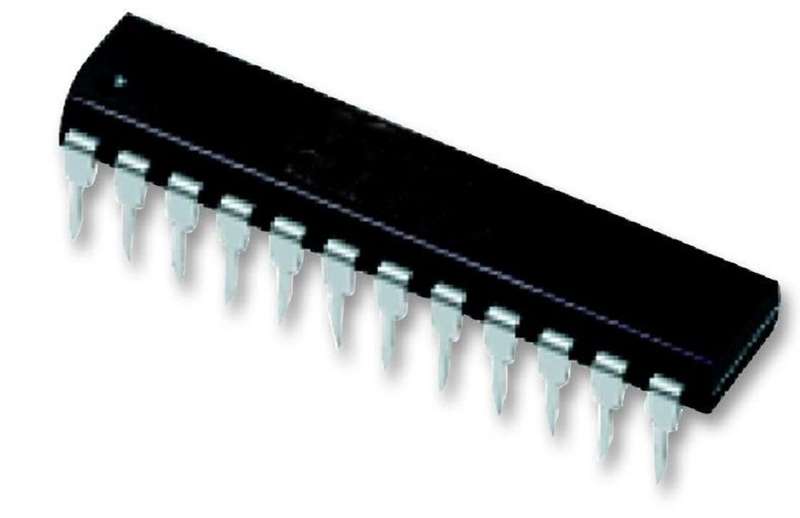

Product OverviewThe MAX7221ENG+ from Maxim Integrated Products is a serially interfaced, 8-digitLED display driver in in 24 pin narrow DIP package. It is a compact, serialinput/output common-cathode display driver that interfaces microprocessors to7-segment numeric LED displays of up to 8 digits, bar graph displays or 64individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scancircuitry, segment and digit drivers and an 8x8 static RAM that stores eachdigit. Only one external resistor is required to set the segment current for allLEDs. The MAX7221 also allow the user to select code-B decoding or no-decode foreach digit. The device include a 150µA low power shutdown mode, analogue anddigital brightness control, scan limit register that allows the user to displayfrom 1 to 8 digits and test mode that forces all LEDs on. It is used in bargraph displays, industrial controllers, panel meters and LED matrix displays.Supply voltage range is 4V to 5.5V, operating temperature range from -40°C to85°CCompatible with SPI, QSPI and MICROWIRE and has slew rate limited segmentdrivers to reduce EMI10MHz serial interfaceIndividual LED segment controlDisplay blanked on power-upOperating supply current of 8mA at RSET = open circuitDisplay scan rate of 800Hz (8 digits scanned)Digit drive sink current of 320mA (V+ = 5V, VOUT = 0.65V)Digit drive leakage of -10µA, segment drive leakage of 1µA, segment current slewrate of 20mA/µsIndividual digits may be addressed and updated without rewriting the entiredisplayApplicationsIndustrial, Portable DevicesProduct InformationNo. of Digits: 8No. of Segments: 7Driver Case Style: DIPNo. of Pins: 24PinsSupply Voltage Min: 4VSupply Voltage Max: 5.5VInterface Type: SPIOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 1 - Unlimited
