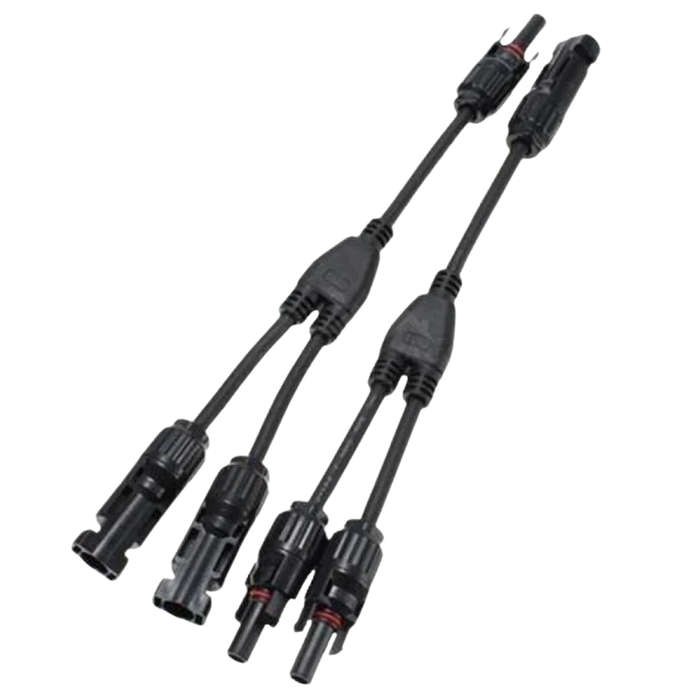

MC4 2-1 1in2out Y Connector
The MC04 2-1 Y MC4 Connector Pair offers a secure and weather-resistant solution for connecting solar panels in photovoltaic systems. Designed for quick installation and long-term reliability, these connectors support high-voltage operation and are compatible with a variety of cable sizes. Ideal for residential, commercial, and industrial solar setups.
Features:
Fast and tool-compatible crimp connection
Stable electrical contact with low resistance
Snap-in locking mechanism for secure mating
UV and weather-resistant housing
Compact, durable, and flame-retardant design
IP67-rated sealing for outdoor use
Specifications:
Product No.: MC04 2-1 Y
Rated Voltage: TÜV 1000V DC / UL 600V DC
Rated Current: 20A30A
Cable Compatibility: 2.5mm²6.0mm² / 14AWG10AWG
Pin Diameter: 4.0mm
Proof Voltage: 8kV DC (1 min)
Contact Resistance: 5m
Material (Contacts): Tin-plated copper
Material (Housing): PPO (Polyphenylene Oxide)
Ingress Protection: IP67 (IEC 60529)
Operating Temperature: -40°C to +85°C
Withdrawal Force: 50N
Insertion Force: 50N
Pollution Degree: 2
Protection Class: Class II
Flame Class: UL94-V0
What's in the box:
1x MC4 2-1 1in2out Y Connector
