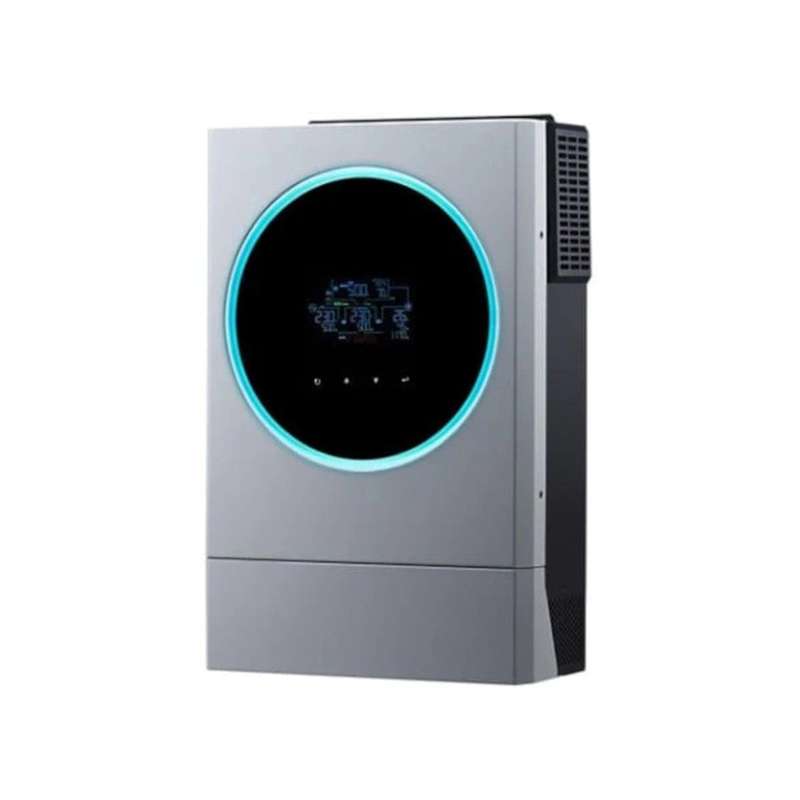

MECER 5.6kW 6kWMPPT 48V - High Voltage Inverter

Mecer Inverter

Axpert MKS IV is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformer less design provides reliable power conversion in a compact size. The new generation of Axpert MKS comes with a built-in Wi-Fi function, mobile monitoring can be carried out through mobile applications. Data can be accessed and recorded in the inverter, which is convenient for tracking the operation status of the inverter. It also supports USB On -The go function for easy rewriting of internal parameters, data downloads, and software updates.

Features:
Pure sine wave MPPT Solar Inverter
Customizable status LED ring with RGB lights
Touchable button with large 4.3 coloured LCD
Wide DC input range
Supports USB On-the-Go function
Data log events stored in the inverter
Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
Reserved communication port for BMS
Battery-independent function
Parallel operation with up to 9 units
Rated power 5600va/5600w
Voltage 230 vac

Selectable voltage range:
170-280 vac (for personal computers)
90-280 vac (for home appliances)
Frequency range 50Hz/60 Hz (auto sensing)

Output:
Ac voltage regulation (batt. Mode) 230 vac +/- 5%
Overload capacity 5s at ?150% load; 10s at 110%~150% load; 100ms at ?200% load
Efficiency (peak) 93 %
Transfer time 10ms (for personal computers) ; 20ms (for home appliances)
Waveform pure sine wave
Dual outputs -Yes

Battery
Battery voltage 48 vdc
Floating charge voltage 54 vdc
Overcharge protection 66 vdc

Solar charger & AC charger:
Solar charger type MPPT 6000w
MPPT range at operating voltage 120 ~ 430 vdc
Maximum pv array open circuit voltage 450 vdc
Maximum solar charge current 120a
Maximum ac charge current 120a

Operating Environment:
Humidity 5% to 95% relative humidity(non-condensing)
Operating temperature -10 Degrees C to 50 Degrees C
Storage temperature -15 Degrees C to 60 Degrees C
