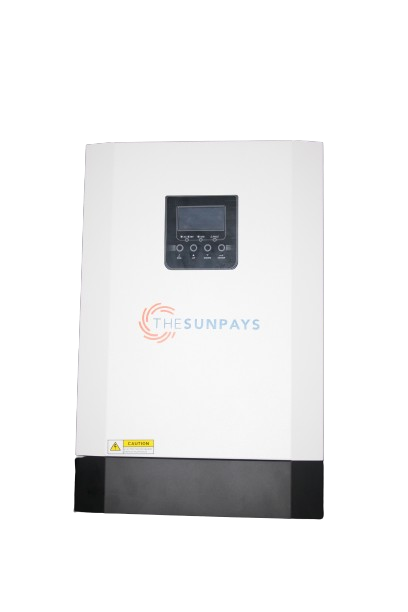

5.5kW High Voltage MPPT Inverter, 500Voc, 48V Pure Sine wave, Can parallel connect, WIFI Compatible

5.5kW 110A Pure Sine Wave Inverter - High voltage, can work without batteries.

IP Rating:

• IP20
• Not recommended for installation location with high humidity.
• If the inverter needs to be installed close to the ocean please make use of a dehumidifier.

Features:

• Programmable supply priority for PV, Battery or Grid.

• User adjustable charge current & voltage.
• Wide PV input range 120 - 500Vdc, 110A MPPT SCC.
• Can operate without batteries.
• Can be parallel connected , also 3-phase.
• Output power factor 1.0
• Wi-Fi monitoring function (Optional).
• PV & Grid complementary.
• Pure sine-wave Inverter.
• High voltage inverter.

Max Watt Output:

• Continuous: 5.5kW
• Surge: (5 seconds) : 11kW

Output and Charging Source Settings:

• Solar-Utility-Battery & Solar-Battery-Utility.

• Solar only: 110A (maximum).
• Grid only: up to 80A.

Solar input specifications:

• 120 - 450Vdc and 20A solar input is the optimal working voltage range for these inverters.
• If operation without batteries is required, this input condition must be met.

Monitoring & Setting :

• LCD screen.
• Wifi dongle (optional) monitoring system via PV Keeper phone app.


Expansion: Single Inverter

• PV Panels maximum: 6000W
• 9 x 550W panels MAX
• PV Panels connection : series only.
• Batteries minimum: 4 x 100Ah 12V / 48V LiFePo4
• Can operate without batteries
• Peak Efficiency: 95%
• No Load Power Consumption: <50Watt

Expansion: More Inverters

• Can be used as single inverter.

• Single phase & 3-phase up to 6 units
• Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.

 Physical dimensions

• 472 x 297 x 133 mm
• 10.5KG

What's in the box

• Inverter
• User manual
• Communication Cable
• Parallel Cable
• Power Sharing Cable

IMPORTANT: THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE.

Warranty:

12 Months Warranty

Please take note of the full warranty terms and conditions.

**FREE DELIVERY NATIONWIDE!!!**

Free nationwide delivery on inverters.

PLEASE NOTE : transport costs of warranty claims to The Sun Pays's Rayton office will be at the cost of the customer.
