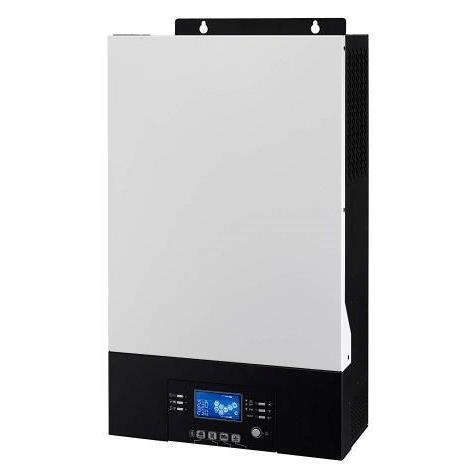

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter SOL-I-AX-8M

Features

• Customisable status LED bar with RGB breathing lights.

• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).

• Supports USB On-the-Go function.

• Reserved communication port for BMS (RS485, CAN-BUS or RS232).

• Replaceable fan design for ease of maintenance.

• Battery independent function.

• Enhanced AC/Solar charger to 120A.

• Built-in anti-dust kit.

• Parallel operation up to 6 units.

Specifications

• Model: SOL-I-AXMAX-8K48V.

• Rated Power: 8000VA/8000W.

• Parallel Capability: Yes, 6 units.

Input

• Voltage: 230 VAC.

• Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).

• Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.

• Efficiency (Peak): 90% ~ 93%.

• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).

• Waveform: Pure sine wave.

• No Load Power Consumption: <70W.

Efficiency

• Battery Voltage: 48 VDC.

• Floating Charge Voltage: 54 VDC.

• Overcharge Protection: 66 VDC.

• Solar Charger & AC Charger

Solar Charger Type: MPPT.

• Maximum PV Array Power: 8000W (4000W x 2).

• MPP Range - Operating Voltage: 90 ~ 450 VDC.

• Maximum PV Array Open Circuit Voltage: 500 VDC.

• Number of MPP Trackers: 2.

• Maximum Solar Charge Current: 120 A.

• Maximum AC Charge Current: 120 A.

• Maximum Charge Current: 120 A.

• Physical

• Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.

• Net Weight (kgs): 18.4.

• Communication Interface: USB/RS232/RS485/Wifi/Dry contact.

• IP Rating: IP21.

Environment

• Altitude: 1000m and de-rate by 1% for every 100m above 1000m.

• Humidity 5% to 95% Relative Humidity (Non-condensing).

• Operating Temperature: -10°C to 50°C (with over-temp protection in case inner component temperature reaches protection level.).

• Storage Temperature: -15°C to 60°C.
