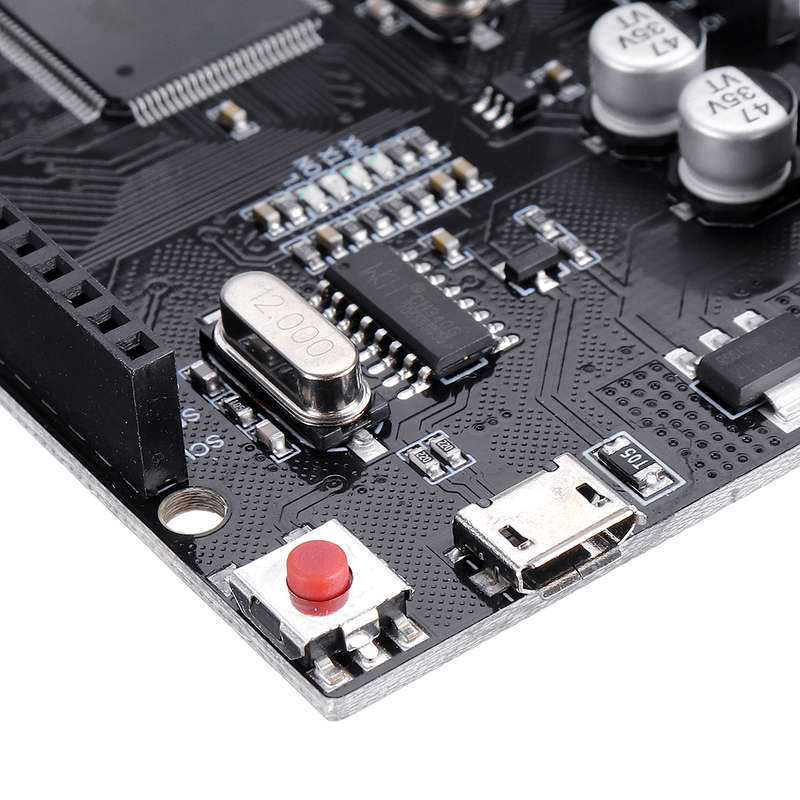

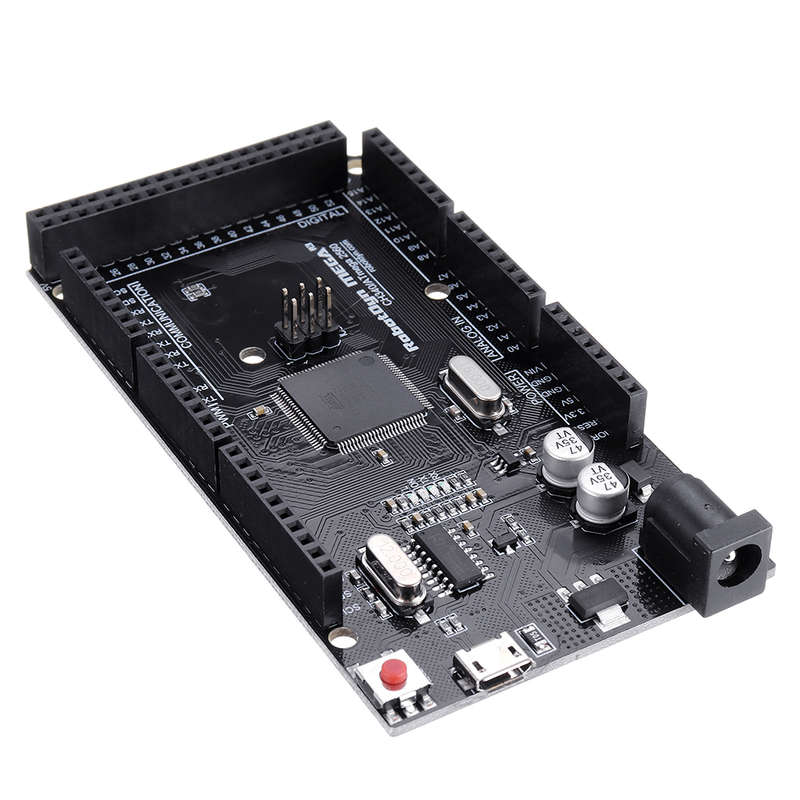

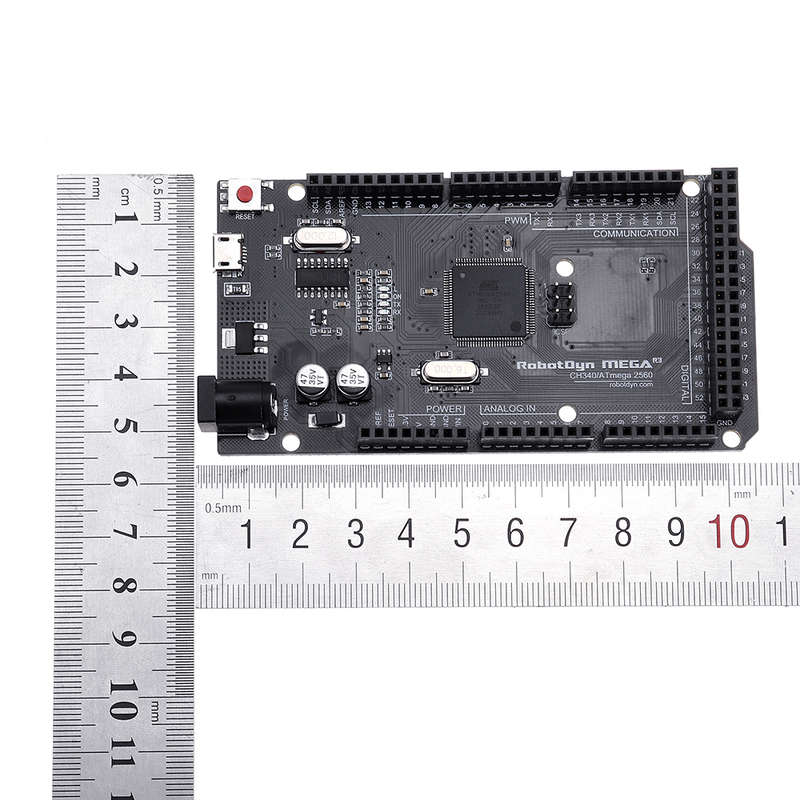

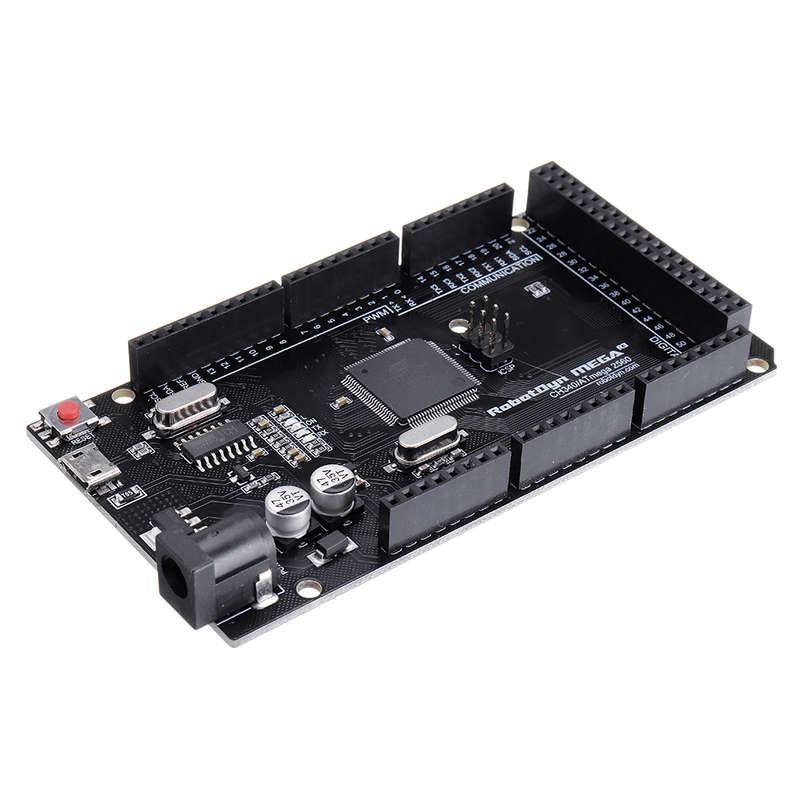

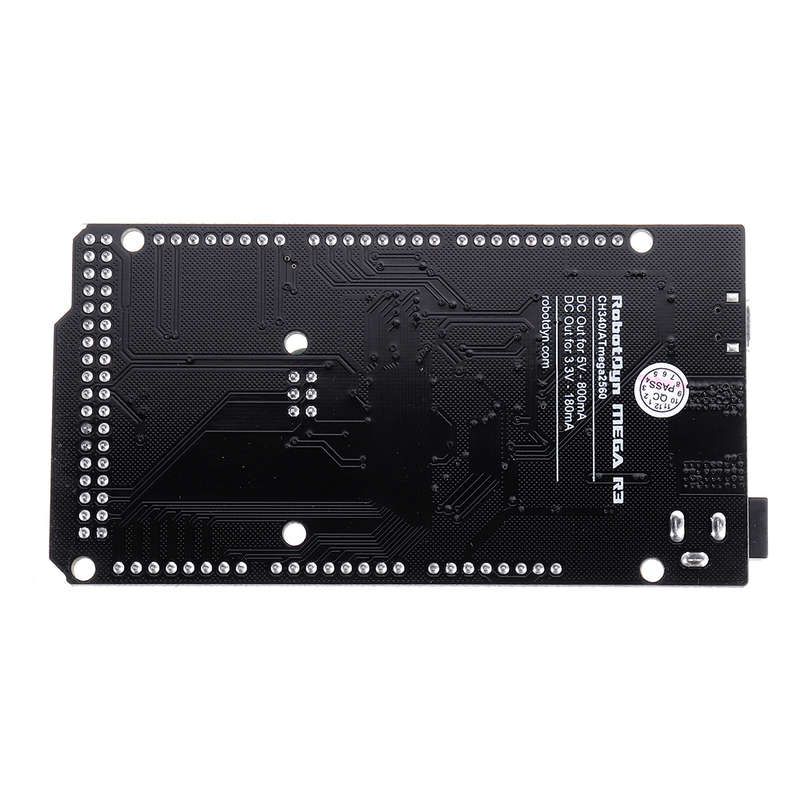

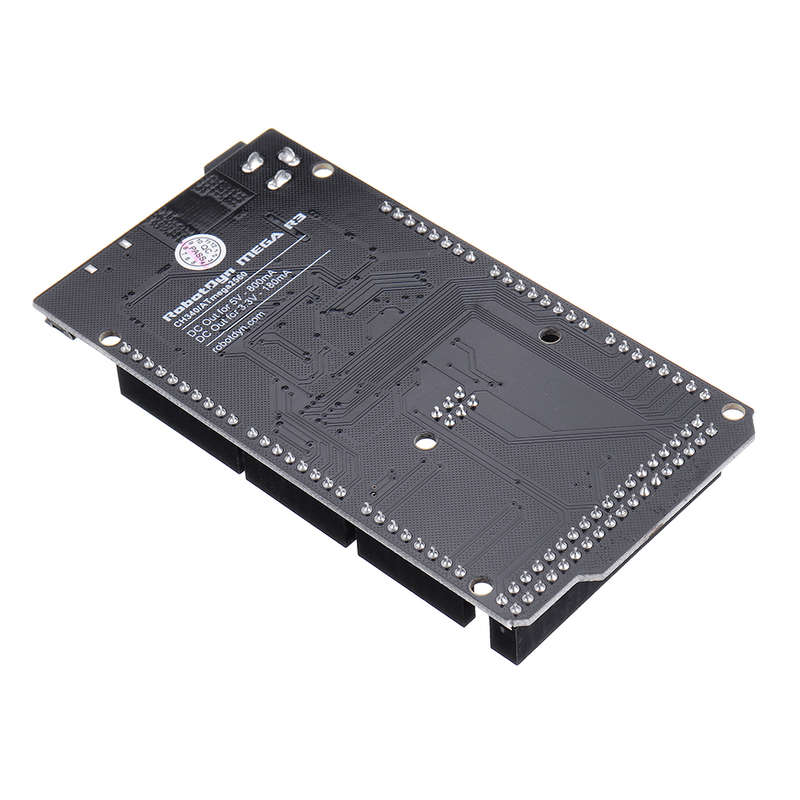

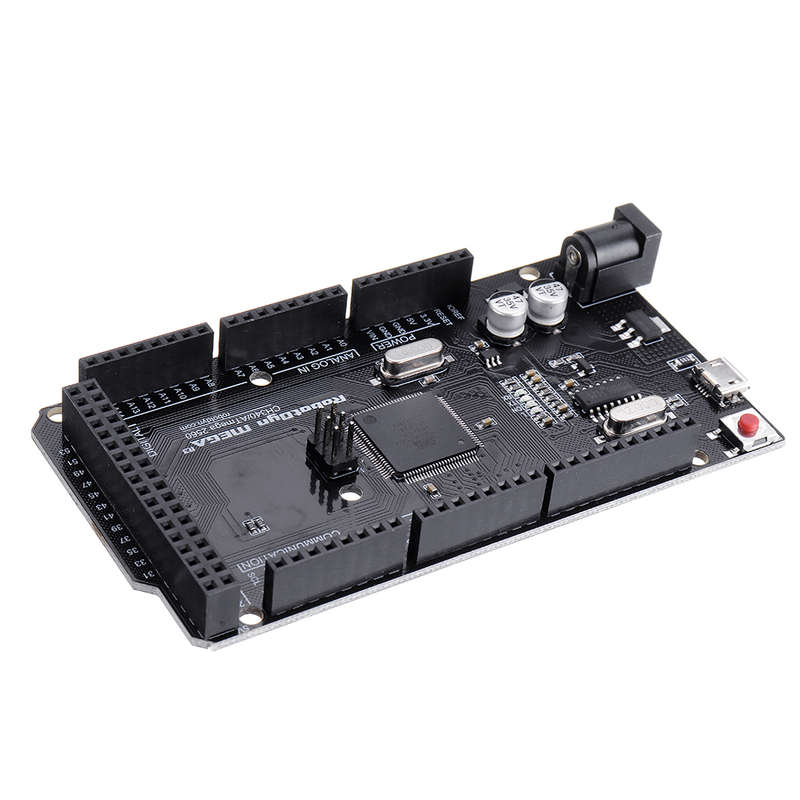

MEGA 2560 R3 CH340G ATmega2560-16AU Micro Usb Cable Module

20 available / new

R707.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128866

Feature:

Compatible with Mega 2560 board. Built on the ATmega2560 microcontroller and USB-UART interface chip CH340G.
Board for functionality similar to the Mega 2560.
It is a budget, but the same stable, and uses the original chips ATmega2560 (16 MHz).
The board used the chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. When you work in the frequency 12Mhz, giving a stable result of data exchange (need install drivers to computer).
Mega 2560 CH340G / ATmega2560 - connects to the computer via microUSB cable (used for almost all Android smartphones).

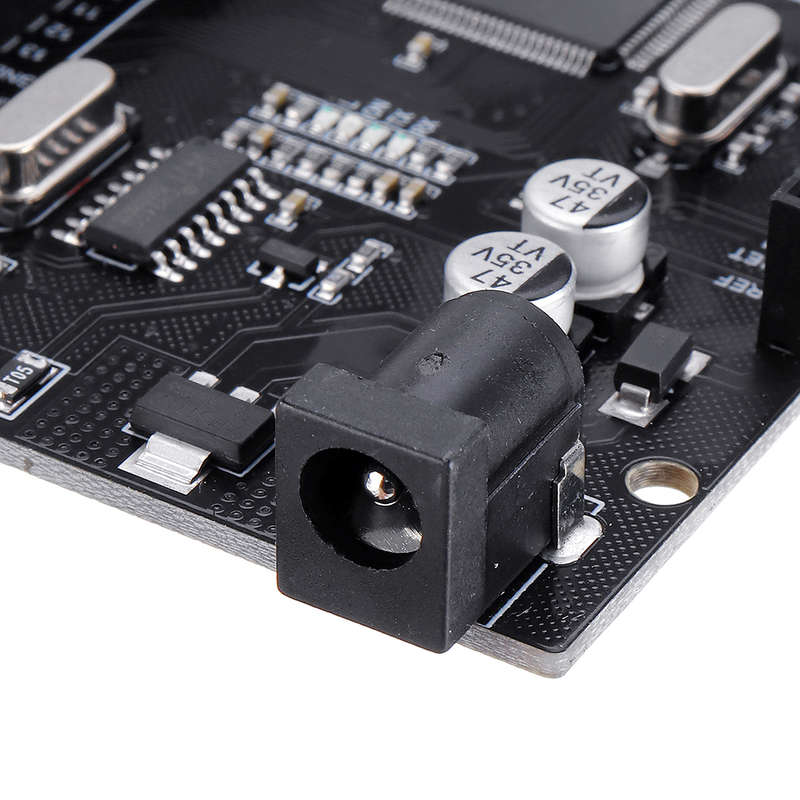

You can supply power to board through the MicroUSB connector or DC Barel Jack power connector.
The voltage regulator (LDO) can deal with incoming voltage from 6V to 12V (peack 18V) DC. Output current for 5V - about 800mA, for 3.3V - about 180mA (Please note that the higher the input voltage the lower the outgoing current).
That will provide a reliable power most of your initial projects.

Specification:

Microcontroller: ATmega 2560 (16Mhz)
USB-UART interface: CH340G
Input voltage: 6-18V (normal 6-8V)
PC connection socket: MicroSUB
power socket: DC Barel Jack
70 digital I/O
16 analog inputs
14 PWM
4 bus of UART

Package includes:

1 x Mega 2560 board
