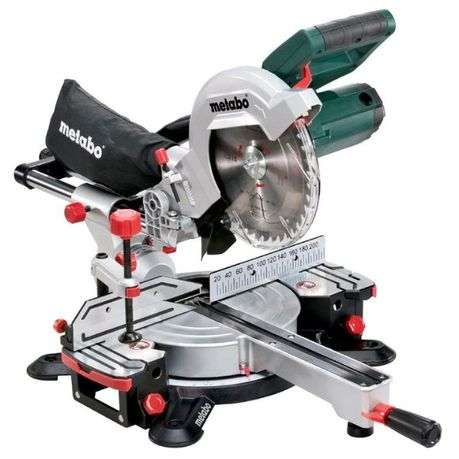

Metabo - KGS 216 M (619260000) Mitre Saw:
- Sliding function for wide workpieces.
- Compact lightweight, suitable also for one-handed transport.
- Robust die-cast aluminium design for the highest demands.
- Easy transport thanks to ergonomically designed handles and saw headlock.
- Effective dust extraction via integrated dust scoop.
- Fast and precise setting of common angles using stop points.
- Laser for exact display of the cutting line (mains powered, no batteries required).
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath.
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required).
- Sliding high rear fence profiles for safe sawing.
- Material clamp for secure fixing of the workpiece from the top or front.
- Depth guide for easy creation of grooves.
- Saw head can be inclined to the left, with an additional angle range for undercuts.
- All scales and operating elements are visible from the working position and can be operated intuitively.
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required.
Characteristics:
- Dimensions: 760 x 475 x 340 mm / 2.5 x 1.6 x 1.1 ft mm
- Support surface: 345 x 730 mm
- Maximum cutting width: 90°/45°305 / 205 mm / 12 / 8 1/16"
- Maximum cutting depth at: 90°/45°65 / 36 mm / 2 9/16 / 1 13/32"
- Cutting capacity: 90°/90°305 x 65 mm / 12 x 2 1/2"
- Cutting capacity: 45°/45°205 x 36 mm / 8 1/16 x 1 13/32"
- Turntable setting left/right: 47 / 47 °
- Saw blade tilt left/right: 47 / 2 °
- Saw blade: 216 x 30 mm / 8 1/2 x 1.181"
- Rated input power S1 100%: 1200 W
- Rated input power S6 20%: 1500 W
- No-load speed: 5000 rpm
- Revolutions at rated load: 3750 rpm
- Cutting speed: 57 m/s / 187 ft/s m/s
- Weight: 13.5 kg / 29.8 lbs kg
- Cable length: 2 m / 7 ft m
Noise emission:
- Sound pressure level: 97 dB(A)
- Sound power level (LwA): 104 dB(A)
- Uncertainty of measurement K: 3 dB(A)
Includes:
- Carbide saw blade (40 teeth)
- Material clamp
- Tool for saw blade change
- Cable winder
- Chip Collection Bag
- 2 Table length extensions
- Length Guide

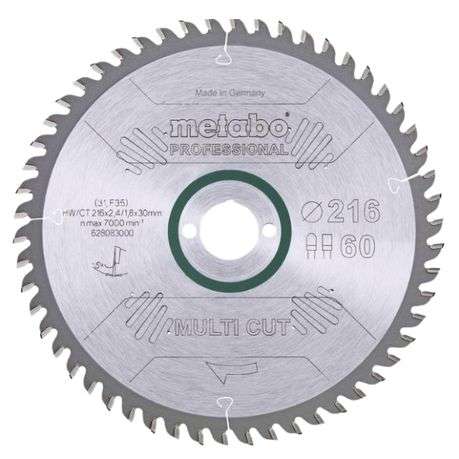

Metabo - Saw Blade Multi-Cut Z60 FZ/TZ, 5°NEG - (628083000):
- Universal use for demanding materials
- For the highest standards in cutting quality, e.g. for laminate, thin-walled plastic, aluminium, copper and bronze materials
- Ideally suited for many interior work applications
- Perfect cutting results, also for cross-cuts in solid wood, coarse, coated or veneered chipboards, MDF
- The circular saw must have a very high-performance power
- Particularly long tool life thanks to best carbide quality and finely-ground teeth
- Precise, low-noise and vibration-minimised cuts thanks to lasered expansion slots (and partially laser ornaments) as well as lasered steel blades made from sintered steel
- Secondary holder for circular saw blades with Ø 216, 250, 254 and over 300 mm
Characteristics:
- Diameter x cutting width x bore: 216 x 2.4 x 30 mm
- Material: HW/CT
- Number of teeth: 60
- Tooth shape: FZ/ TZ
- Steel blade thickness: 1.8 mm
- Rake angle: 5° neg.
- Suitable for: KS 216 M Lasercut / KGS 216 M / KGS 216 Plus / KGSV 216 M / KGSV 72 Xact / KGSV 72 Xact SYM
What's in the box

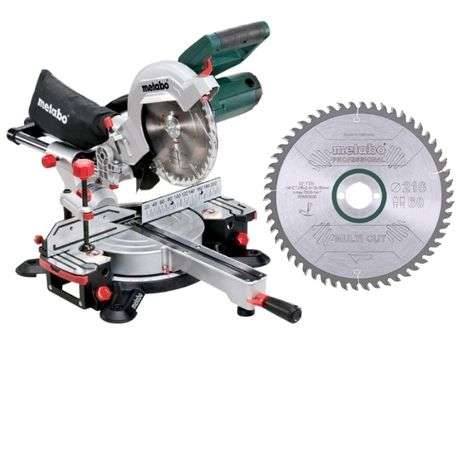

1 x Metabo - KGS 216 M (619260000) Mitre Saw
1 x Metabo - Saw Blade Multi-Cut Z60 FZ/TZ, 5°NEG - (628083000)
