Metabo - Mitre Saw - KGSV 216 M (619261000)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Description:
- Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
- With saw blade "multi cut" (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminium profiles
- Sliding function for wide work pieces.
- Compact light weight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw head lock
- Effective dust extraction via integrated dust scoop
- Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)

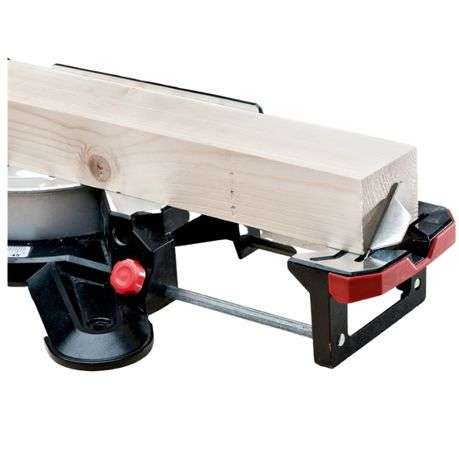

- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing

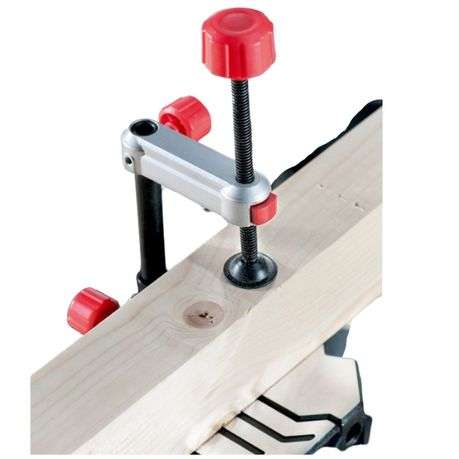

- Material clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- Saw head can be inclined to the left, with additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
Characteristics:
- Dimensions: 760 x 475 x 340 mm
- Support surface: 345 x 730 mm
- Maximum cutting width 90/45: 305 / 205 mm
- Maximum cutting depth at 90/45: 65 / 36 mm
- Cutting capacity 90/90: 305 x 65 mm
- Cutting capacity 45/45: 205 x 36 mm
- Turntable setting left/right: 47 / 47
- Saw blade tilt left/right: 47 / 2
- Saw blade: 216 x 30 mm
- Rated input power S1 100%: 1350 W
- Rated input power S6 20%: 1700 W
- No-load speed: 2500 - 5500 rpm
- Revolutions at rated load: 5500 rpm
- Cutting speed: 28 - 62 m/s
- Weight: 13.5 kg
- Cable length: 2 m
Noise emission
- Sound pressure level: 97 dB(A)
- Sound power level (LwA): 104 dB(A)
- Uncertainty of measurement K: 3 dB(A)
What's in the box
1 x Metabo - KGSV 216 M Mitre Saw - (619261000)
1 x Carbide saw blade (60 teeth)
1 x Material clamp
1 x Tool for saw blade change
1 x Cable winder
1 x Chip Collection Bag
2 x Table length extensions
1 x Length Guide
