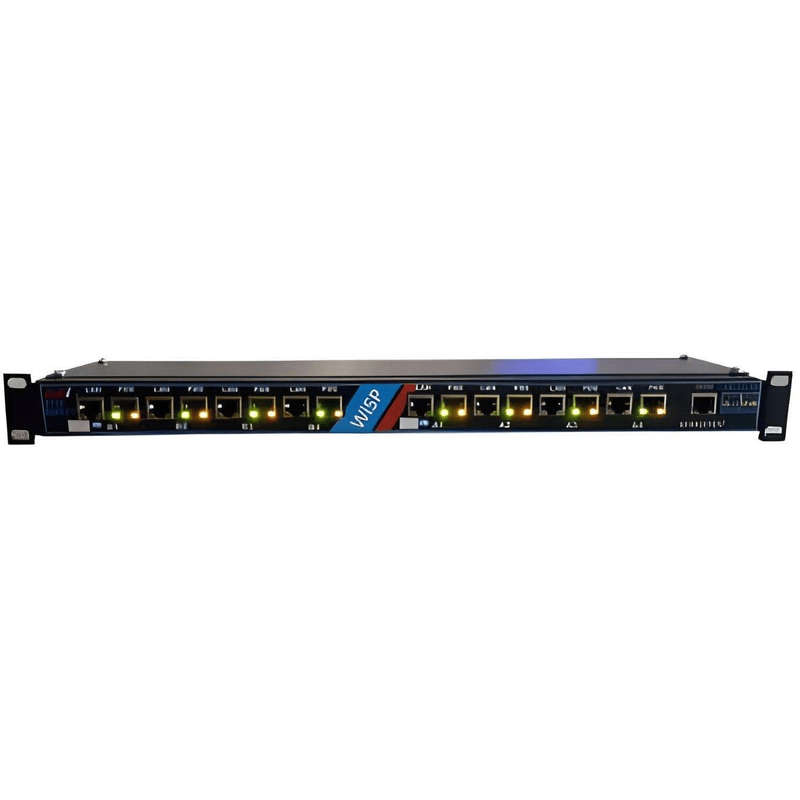

Micro Instruments 8-Channel Gigabit PoE Injector

Micro Instruments 8 channel Gigabit PoE injector with a remote management Ethernet Port, Supports Mode-B & Phantom PoE modes selectable per 4 Ports

The POE4+4GM is an 4+4 = 8 Channel Gigabit DC passive power over Ethernet injector unit with a 10Mbs management Ethernet interface to allow the user to toggle the power output of each one of the 8 POE power outputs via a web-browser interface.

POE output ports is Grouped into GroupA (4 POE channels) and GroupB (4 POE channels) - The user can select the MODE (MODE B-2 pair power or PHANTOM POWER-4 pair power) and voltage (24VDC or 48VDC- input dependant) for each group of 4 POE outputs individually via changing power connections at the rear of the unit.

Specifications:

• Micro Instruments 8 channel Gigabit PoE injector with a remote management Ethernet Port,
• Supports Mode-B
• Phantom PoE modes selectable per 4 Ports
