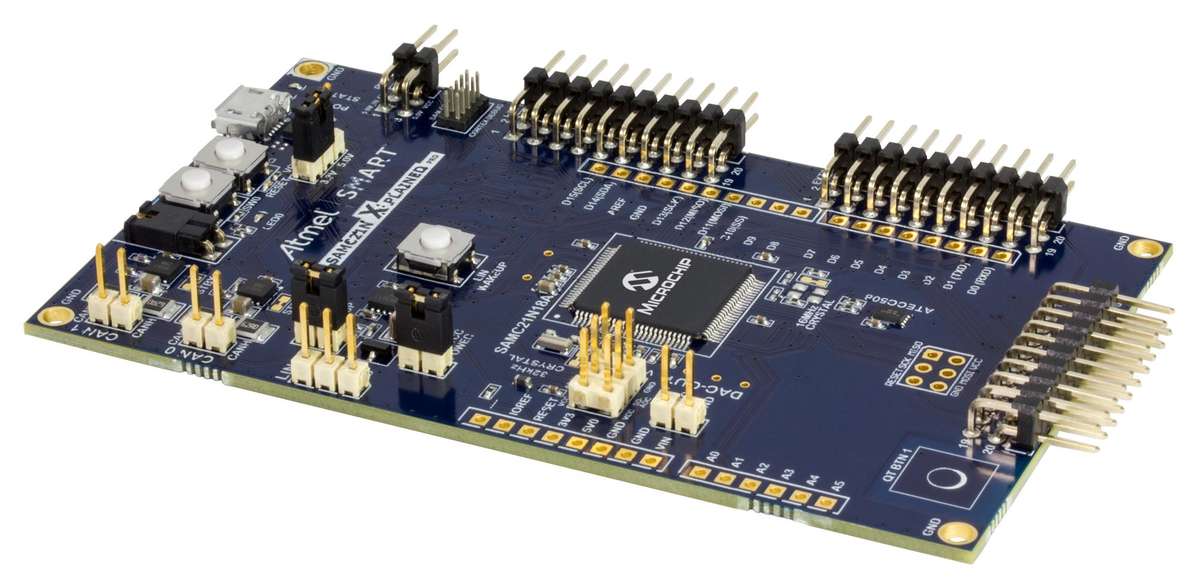

Microchip (ATSAMC21N-XPRO) Evaluation Kit, SAMC21N Xplained Pro MCU

Product InformationSilicon Manufacturer: MicrochipNo. of Bits: 32bitSilicon Family Name: SAM CCore Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: ATSAMC21N18AKit Contents: C21N Xplained Pro Development BoardProduct Range: -Product OverviewThe ATSAMC21N-XPRO from Microchip is a SAMC21N Xplained Pro evaluation kit. Itis a hardware platform for evaluating ATSAMC21N18A microcontroller (MCU). Thekit offers a set of features that enables ATSAMC21J18A user to get started withSAM C peripherals right away and to get an understanding of how to integrate thedevice in their own design. Supported by the Studio integrated developmentplatform, the kit provides easy access to the features of ATSAMC21N18A andexplains how to integrate the device into a custom design. The Xplained Pro MCUseries evaluation kit includes an on-board embedded debugger, eliminating theneed for external tools to program or debug the ATSAMC21N18A. The kit offersadditional peripherals to extend the features of the board and ease developmentof custom designs. It features USB interface, auto-ID for board identificationin Atmel Studio, one yellow status LED, one green board power LED and symbolicdebug of complex data types including scope information.Two mechanical buttons (user and reset button), one QTouch® button, one yellowuser LEDTwo selectable target voltages ( 3.3V and 5V), three Xplained Pro extensionheadersLevel converters between target section and EDBG sectionTwo CAN transceivers, 32.768KHz crystal mounted, 16MHz crystal footprint (notmounted)Programming and debugging of on-board SAMC21N through serial wire debug (SWD)LIN transceiver, wake-up button, alternate LIN power jumperDAC output connectorAnalogue voltage reference connector with filtered power supply (SDADC VREF,ADC/DAC VREF)Supported with application examples in Atmel Software FrameworkSPI, I2C, four GPIOs, virtual COM port (CDC) data gateway interface
