Microchip (RN42-I/RM630) Class 2 Bluetooth® v2.1 Module + EDR

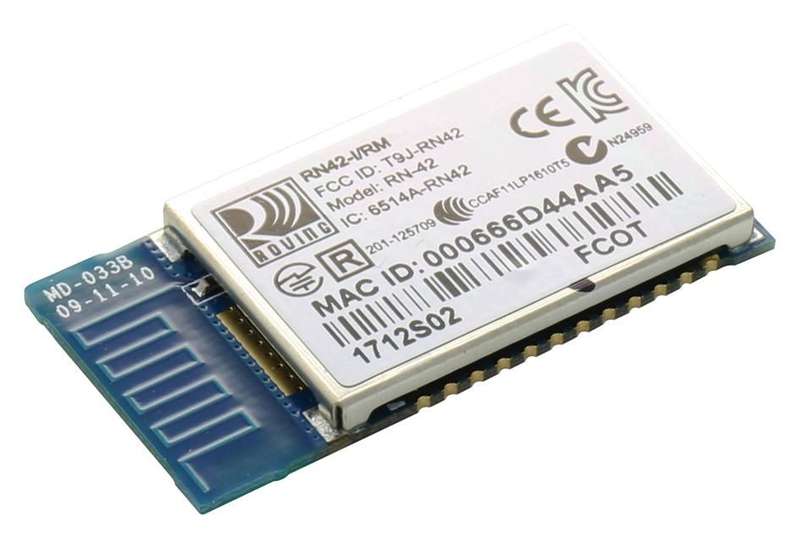

Class 2 Bluetooth® v2.1 Module + EDR, 2.4GHz, 3MBPSProduct OverviewThe RN42-I/RM630 from Microchip is a Bluetooth data module with firmware version6.30. The RN42 is a small form factor, low power, Class 2 Bluetooth radio fordesigners who want to add wireless capability to their products. The RN42supports multiple interface protocols, is simple to design in and is fullycertified, making it a complete embedded Bluetooth solution. The RN42 isfunctionally compatible with the RN41. With its high-performance PCB traceantenna and support for Bluetooth EDR, the RN42 delivers up to 3Mbps data ratefor distances up to 20meters.Fully certified class 2 Bluetooth 2.1 + EDR module, SPP profileOnboard embedded Bluetooth stack (no host processor required)UART data connection hardware interfacesSupports Bluetooth data link to iPhone/iPad/iPod TouchVDD range from 3V to 3.6V, temperature of -40°C to +85°C, package size is 13.4mmx 25.8mm x 2.4mmSupports HID profile for making accessories such as keyboards, mouse, pointingdevicesProgrammable low power modes, secure communications, 128bit encryptionUART local and over-the-air RF configuration, auto-discovery/pairing requires nosoftwareCastellated SMT pads for easy and reliable PCB mountingSupports SPP and DUN profiles, Bluetooth SIG qualifiedApplicationsIndustrial, WirelessProduct InformationBluetooth Version: Bluetooth 2.1 + EDRSupply Voltage Min: 3VSupply Voltage Max: 3.6VSignal Range Max: 100mData Rate: 3MbpsBluetooth Class: Class 1Receive Sensitivity: -80dBmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -
