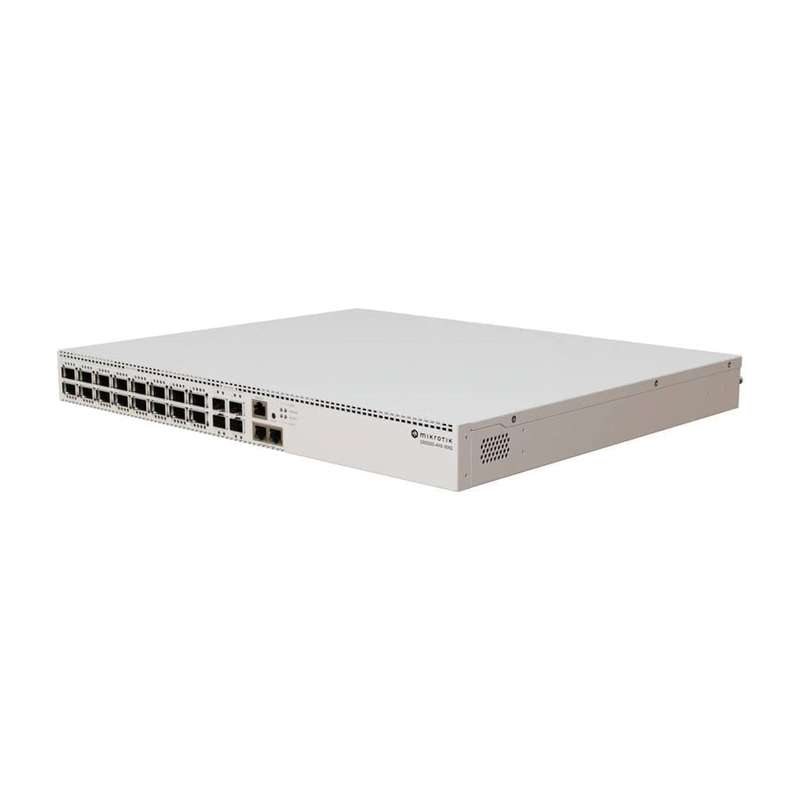

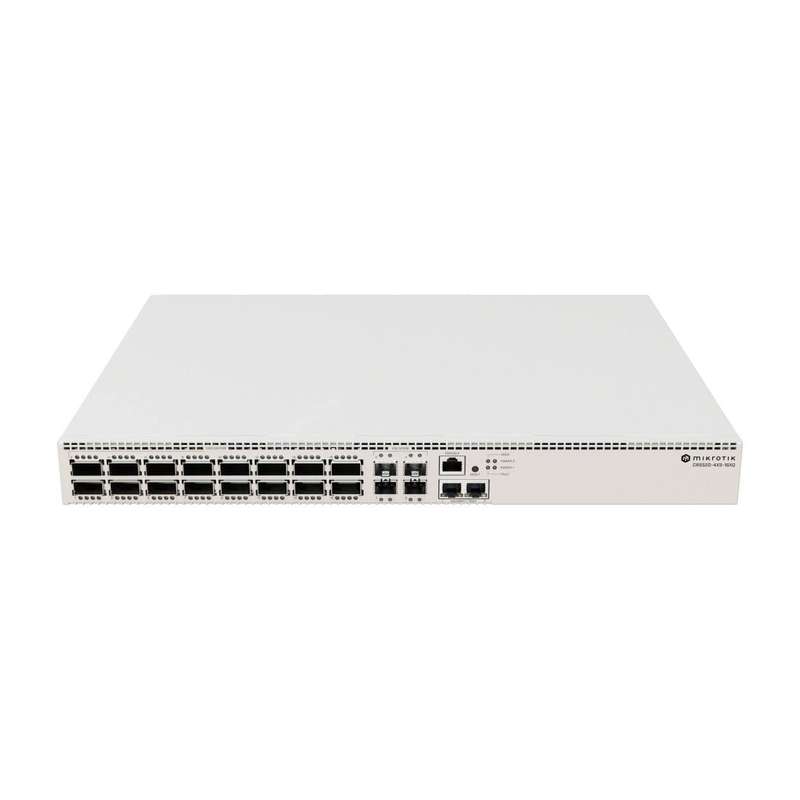

MikroTik CRS520 16-port QSFP28 Cloud Router Switch with 2x 10GbE and 4x SFP28 Ports
An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!
Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we've seen so far.
With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now — a single CRS520 can do the trick!
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask — why would a switch need all that power? Two reasons:
- CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing
- Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

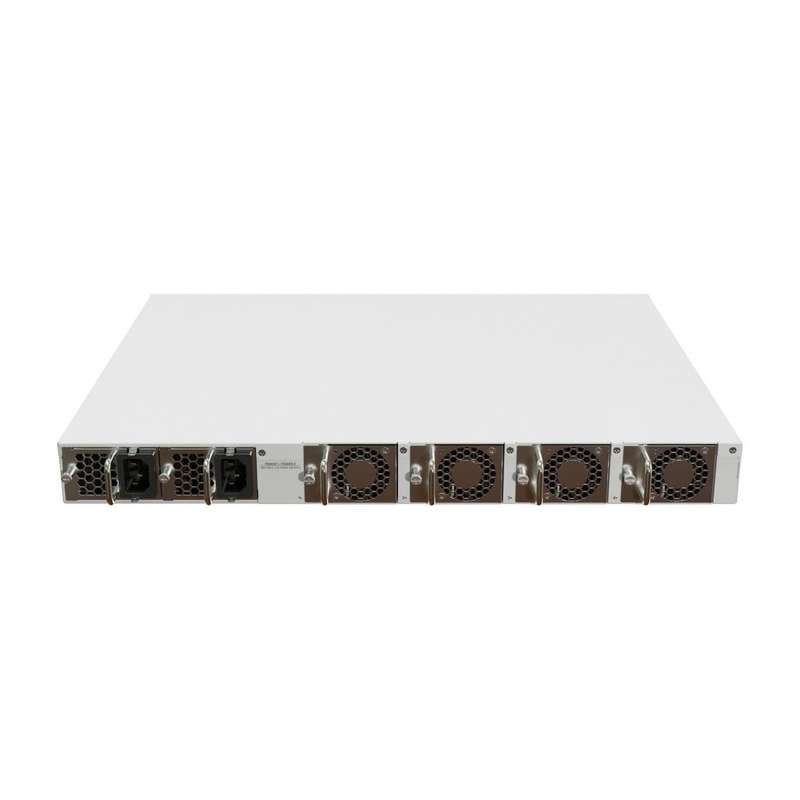

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.
Technical Specification
Product: MikroTik CRS520-4XS-16XQ-RM
Architecture: ARM 64bit
CPU: AL52400
CPU core count: 4
CPU nominal frequency: 2 GHz
Switch chip model: 98CX8410
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 4 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Powering
- Number of AC inputs: 2x
- AC input range: 100-240
- Number of PSU slots: 2
- Frequency (Hz): 50-60
- Max power consumption: 150 W
- Max power consumption without attachments: 123 W
- Cooling type: 4 fans
Ethernet
- Ethernet ports: 2x 1G/2.5G/5G/10G
Fiber
- Number of 25G SFP28 ports: 4x
- Number of 100G QSFP28 ports: 16x
Peripherals
- Serial console port: 1x RJ45
