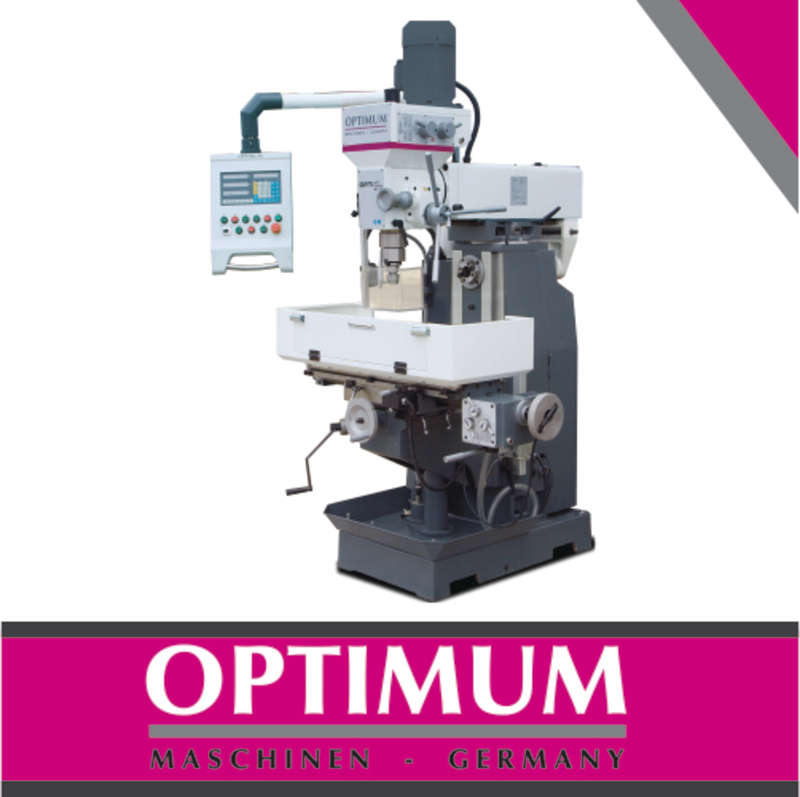

Universal milling machine for horizontal and vertical milling tasks
Milling machines with 3 axes position display
Technical Specifications
Motor power / Electrical connection 4.5 kW / 400 V / 3 Ph ~50 Hz
Driving motor vertical spindle 1.1 kW / 2.2 kW
Driving motor horizontal spindle 1.5 kW
Kühlmitteleinrichtung 40 W
Drilling capacity in steel (S235JR) 30 mm
Continuous drilling capacity in steel (S235JR) 25 mm
Messerkopfgröße max. 100 mm
Schaftfräsergröße max. 25 mm
Spindle seat vertical ISO 40 DIN 2080
Spindle stroke 120 mm
Throat vertical 240 650 mm
Spindle speeds vertical 115 1,750 min-1
Gear speeds vertical 8 gear stages
Spindle seat horizontal ISO 40 DIN 2080
Throat horizontal 0 185 mm
Spindle speeds horizontal 60 1,350 min-1
Gear speeds horizontal 9 gear stages
Table length x width 1,000 x 240 mm
Load of cross table max. 160 kg
T-slot size / number 14 mm / 4
Travels X axis manual 580 mm
Travels X axis automatic 500 mm
Table feed X-axis (8 steps) 24 720 mm/min
Travels Y axis manual 200 mm
Travels Z axis manual 340 mm
Dimensions (L x W x H) 2,270 x 1,500 x 2,100 mm
Total weight 900 kg
Description
Universal milling machine for horizontal and vertical milling tasks with digital 3 axes position display DPA 2000
Heavy, solid type made of high-grade vibration-absorbent grey cast iron
Spindle sleeve feed via spindle sleeve lever or by means of the fine feed handwheel
It is possible to adjust the X-axis either by means of the handwheel or by means of the feed equipment
Vertical position for working for e.g. drilling, slant drilling
It is possible to turn the spindle head carrier by 180°
Equipment details
OPTI-Operating panel
Integrated control panel
Integrated position display
Easy-to-operate
Considerable reduction of the manufacturing times
Turnable round the own axis
Coolant equipment
Dosing and stop valve
Flexible metal hose
Milling head
may be swivelled by 90° to the right and to the left
Spindle head carrier
can be moved backwards and forwards
OPTIMUM LED machine lamp
concentrated halogen light
Anodized, semi-wide radiating round reflector
Cross table
Solid
Precise
Largely dimensioned
Precisely machined surface
Cooling pump
Horizontal milling position
For operations in horizontal milling position with counter support and support for side milling cutters
Operating panel
Slewable to the left and right side of the machine
Digital position display DPA 2000
Considerable reduction of the manufacturing times
Easy-to-operate
High working accuracy
Error rate is reduced
Clearly-arranged keyboard
Glare-free display
Table feed
Motor-driven table height adjustment
Motor with gear table infeed X axis
Cross table housing
Foldable
Removable
Delivery Information
Cog Drill Chuck 1 16 mm / B 18
Mandrel Drill Chuck ISO40 / B18
Milling spindle Horizontal millilng Ø 22 mm / 27 mm
Milling Chuck Ø 4-16 mm
Reducing ISO 40-MK 3 / ISO 40-MK 2
Drawbar vertical and horizontal
T-Nuts
Expeller
Operating tool
