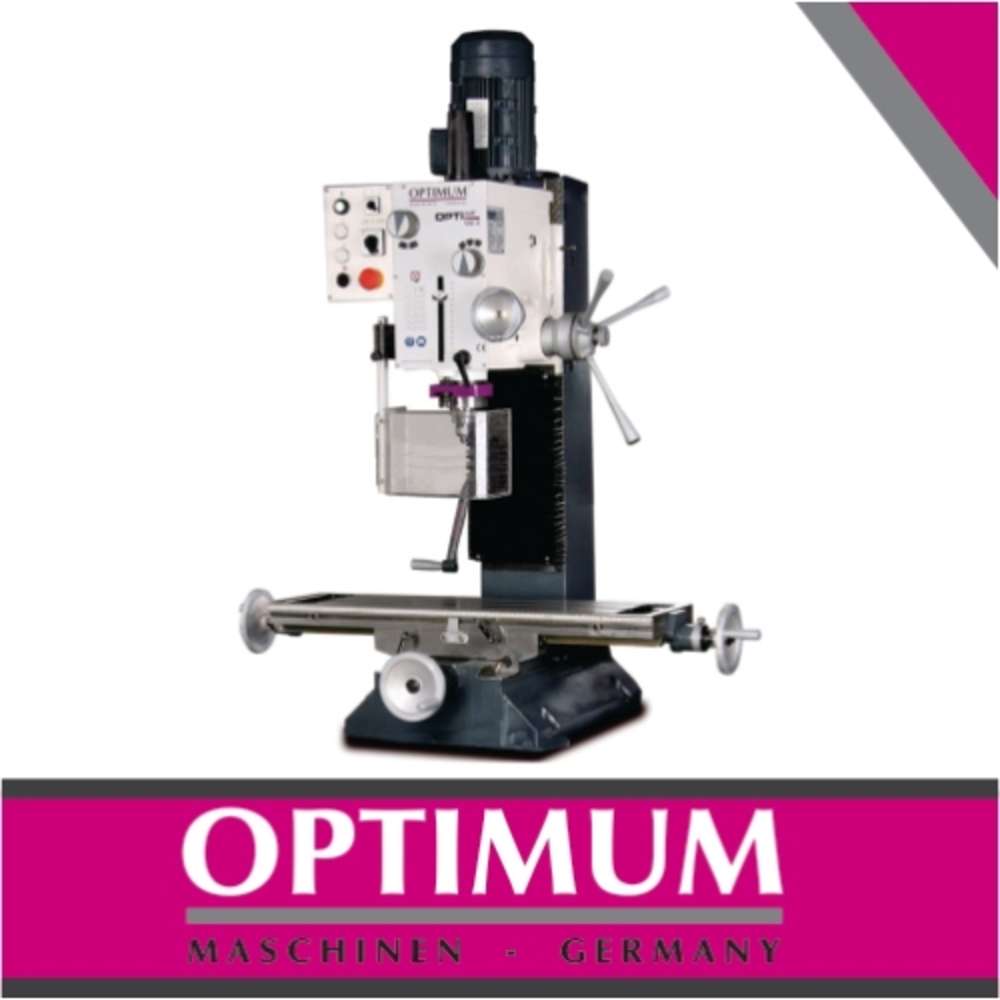

MM3338450 OPTIMILL MB 4 PRECISION DRILLING MACHINE

OPTImill MB 4

Precision drilling milling machine

Technical Specifications
Motor power and electrical connection 1.1 / 1.5 kW / 400 V / 3 Ph ~50 Hz
Drilling capacity in steel (S235JR) 32 mm
Continuous drilling capacity in steel (S235JR) 28 mm
Milling head dimension max. 63 mm
End mill dimension max. 28 mm
Spindle stroke 120 mm
Pinolendurchmesser 75 mm
Spindle seat MT 4 / M16
Throat depth 275 mm
Spindle speeds 95 3,200 min-1
Gear speeds 2 x 6 steps
Swivel range /- 60 degree
Cross table dimensions (LxW) 800 x 240 mm
Abstand Spindel Kreuztisch max. 460 mm
T slot size / number / distance 14 mm / 3 / 63 mm
Traglast Kreuztisch 80 kg
Travels X axis 450 mm
Travels Y axis 195 mm
Travels Z axis 430 mm
Dimensions (LxWxH) 1,100 x 850 x 1,150 mm
Total weight 320 kg

Description

Heavy, solid cast execution
Smooth running due to ground gear wheels running in oil bath
Large speed range of 95 3,200 rpm through 12 switchable speeds
Two-stage quality industrial electric motor
Forward / reverse
Gear head ± 60 ° swiveling
Adjustable wedges
depth stop

Operating mode "tapping mode"

Motor is activated by moving the quill lever down
When the set depth is reached, the direction of rotation of the spindle is reversed
The machine tap turns out of the workpiece again
When the quill is retracted completely to the switching point, the rotation of the spindle is stopped

Room amenities
control panel

easy to use
Emergency stop impact switch
Selector switch direction of rotation
Tapping Function

speed change

Simply via gear selector switch on the front

windscreen

adjustable height
Large dimensions
microswitch

pillar

dovetail guide
Hand-scraped

cross table

Solid and large dimensions
Precise surface finish
Adjustable wedges
Adjustable via 3 hand wheels
Integrated longitudinal scale
Adjustable end stops

Manual quill feed with fine feed

handwheel
Easy to use

Delivery Information

Morse taper MK 3
Adapter MK 3 MK 4
Drawbar M 16
Operating Tool
