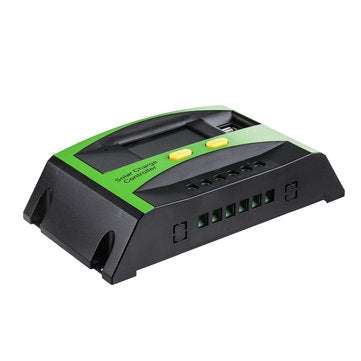

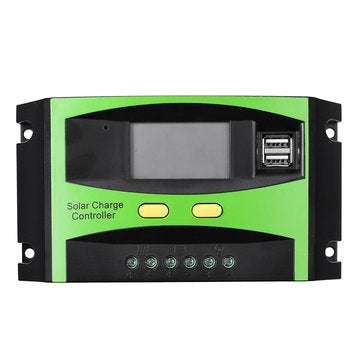

MOHOO 30A 12V/24V 5V 3A Dual USB Solar Charge Controller Solar Panel Regulator LCD Display

20 available / new

R664.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3509

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643384802

Specification:
Model:BLS-30A Size: (1)Dimensions: 168 * 42 * 92mm (2)Weight:320g Function: 1.Large LCD display 2.Support light control and time control 3.Dual USB 5V 3A output (5V/1.5A each) 4.System voltage 12V/24V automatic identification 5.Intelligent PWM charging mode 6.Battery reverse discharge protection 7.Battery overvoltage protection 8.Battery undervoltage protection 9.Dual bottom design, easy to setup Specification: (1)Rated charging current:30A (2)Rated load current:30A (3)Working voltage:12V/24V auto (4)Float charging voltage:13.8V/27.6V (Adjustable) (5)Undervoltage protection:10.7V/21.4V (Adjustable) (6)Over voltage protection:16.5V/33V (7)Low voltage recovery:12.6V/25.2V (Adjustable) (8)Solar panel voltage:a50V (9)Boost voltage:14.4V/28.8V (10)USB Output:5V/1.5A each (11)No-load lossa10mA (12)Waterproof: IP32 (13)Short circuit or overload (1.25 times rated current in 60s or short circuit): battery icon flashes, regularly try to restore automatically (14)Charge Mode: 3 kinds of charge control (directly charge, boost charge, floating charge) (15)Temperature Compensation: -4mV/Cell/ﾣC (16)Installation line number: a5# AWG(6mm2) (17)Operating temperature -35 a -60 a (18)Storage temperature -40 a -70 a Using Suggestion: 1. This controller is for 12V/24V. When installing for the first time, please make sure the battery has sufficient voltage so that the controller can recognize the normal battery type. 2. Install the controller to the battery as close as possible to avoid voltage dropping caused by over long wires and affect normal voltage judgment. 3. This controller is only applicable to various lead-acid batteries.Do not use other batteries (including lithium batteries, nickel-metal hydride batteries, etc.). 4. This controller can only use the photovoltaic panel as a charging source. Do not use a DC or other power source as a charging source. 5. The controller will heat up when it is running. Please be careful to install the controller on a flat, well-ventilated place.
Package Included: 1 x Solar Panel Controller
