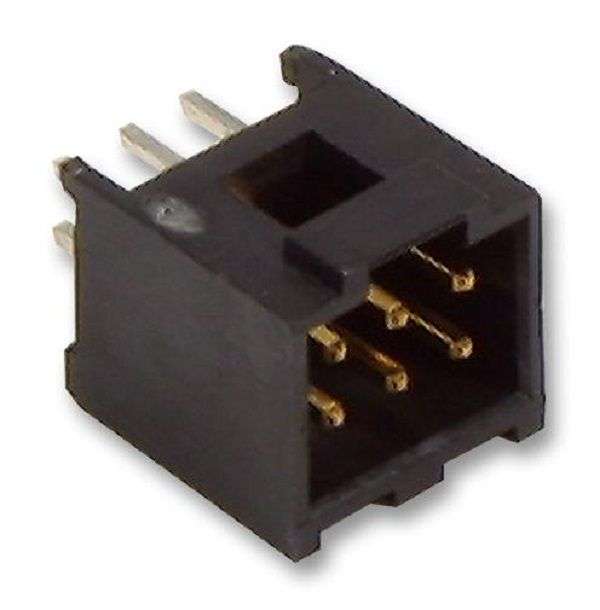

Molex (90130-1206) Pin Header, Vertical, Wire-to-Board, 2.54 mm,

Pin Header, Vertical, Wire-to-Board, 2.54 mm, 2 Rows, 6 Contacts, Through HoleStraightProduct OverviewThe 90130-1206 is a 6-circuit 2-row C-Grid III vertical header with gold-platedcopper contacts and through hole termination. This 90130 series PCB header ismade of polyester, mates with 90142 C-Grid III crimp housing, suitable forsignal and wire-to-board applications. The C-Grid III has been developed to meetthe latest industry requirements. Headers will accept both discrete wire andribbon cable connectors. C-Grid III box contact design employs the same matingconcept with all termination techniques. A uniform locking system on allcontacts allows full interchangeability inside different housing styles. C-GridIII is fully compatible with the industry standard DIN41651 as well as theFrench norm HE-13/14. Moreover, it is fully intermateable/interchangeable withMolex's QF-50 product range.Black colourUL94V-0 flammability ratingCurrent rating per contact is 3AVoltage rating is 350VAC/DCTemperature range from -55 to 125°CApplications:Commercial Vehicle, Consumer ElectronicsProduct Information:Connector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 6ContactsContact Termination Type: Through Hole StraightProduct Range: C-Grid III 90130Connector Shroud: ShroudedContact Material: BrassContact Plating: Gold Plated Contacts
