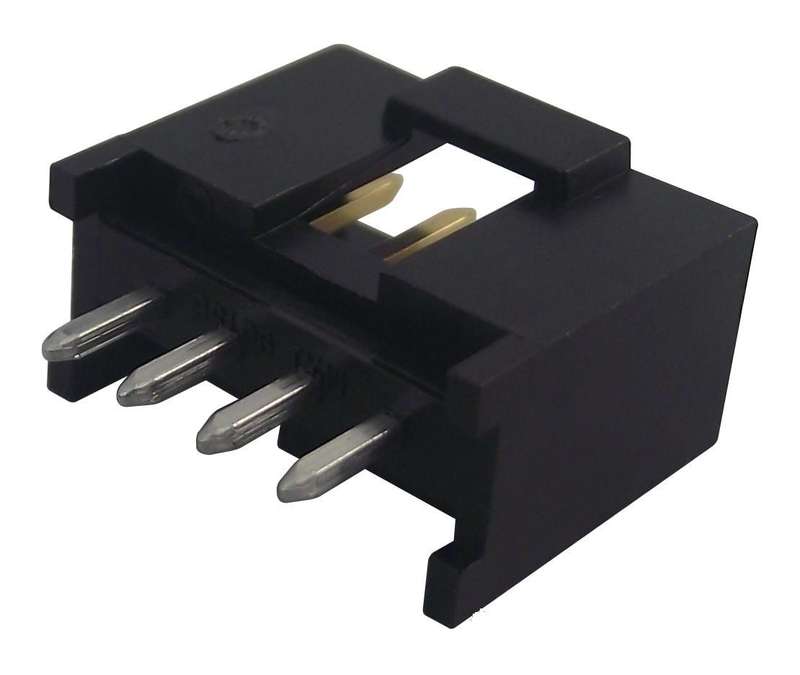

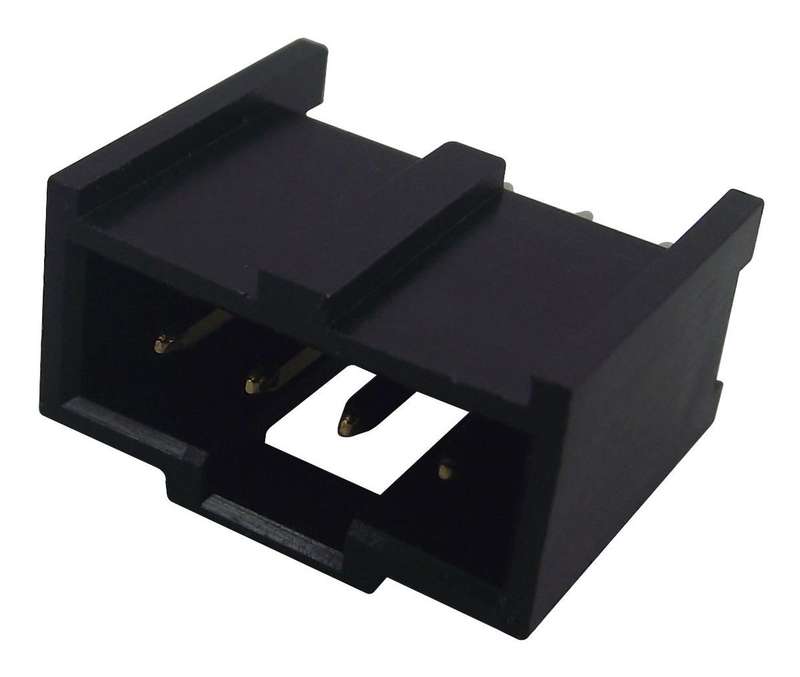

Molex (90136-1204) Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows

Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 4 Contacts, Through HoleStraightProduct OverviewThe 90136-1204 is a 4-way 1-row C-Grid III vertical header with selective0.38µm gold-plated (Au) brass contacts, 2.90mm PC tail length, 2.54mm pitch,through hole and black polyester housing. This vertical header is suitable forsignal and wire-to-board. Mates with 90123 C-Grid III modular crimp housing and90156 C-Grid III crimp housing.UL94V-0 flammability ratingFully shroudedMaximum current per contact is 3AMaximum voltage is 350VAC/DCApplicationsCommercial Vehicle, Consumer ElectronicsProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 1RowsNo. of Contacts: 4ContactsContact Termination Type: Through Hole StraightProduct Range: C-Grid III 90136Connector Shroud: ShroudedContact Material: BrassContact Plating: Gold Plated Contacts
