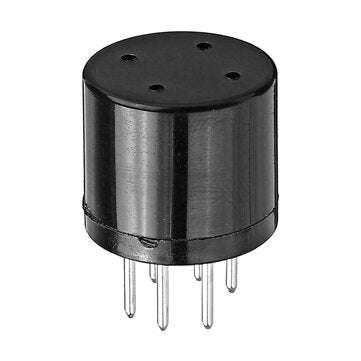

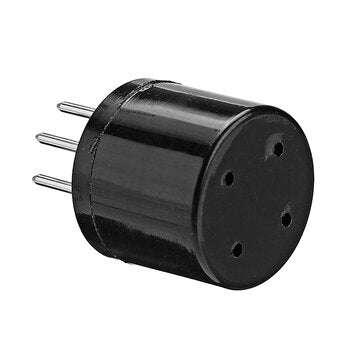

MQ131 MQ-131 Ozone Sensor Module O3 Gas Detector Low Concentration 10-1000ppb High Sensitivity for

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Overview:

Sensitive material of MQ131 gas sensor is WO3, whichwith lower conductivity in clean air. When the ozone gas exists, the sensors conductivity gets lower along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.

MQ131 ozone gas sensor has high sensitivity to ozone, and also has sensitivity to strong oxide such as Cl2, NO2 &etc. It responses oppositely to organic interference gases.

Features:

It has good sensitivity to ozone in wide range, and has advantages such as long lifespan, low cost and simple drive circuit &etc.

Applications:

It is widely used in domestic ozone concentration alarm, industrial ozone concentration alarm and

portable ozone concentration detector.

Specifications:

Package Included:
1 x MQ131 Ozone Sensor O3 Gas Detector Module

Model				MQ131
producttype				Semiconductorgassensor
Standardpackage				Plastic
Detectionofgas				Ozone
Detectableconcentration				10-1000ppbOzon
Standardcircuitconditions		Circuitvoltage		Vc		24VDC
