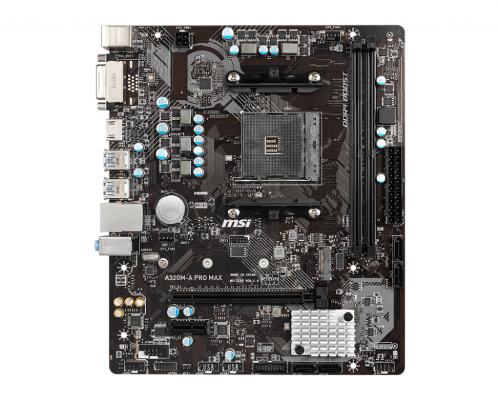

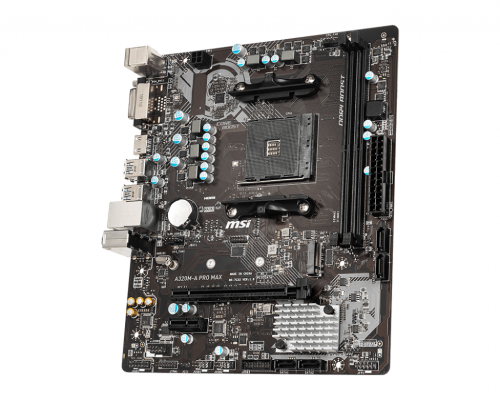

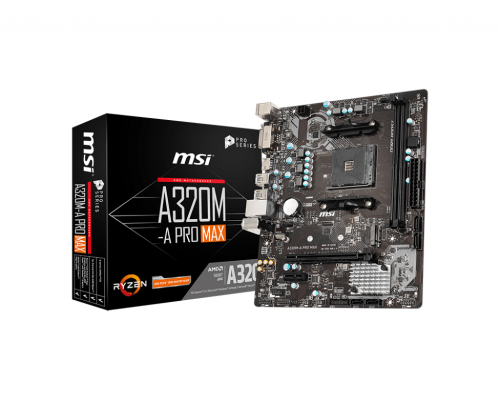

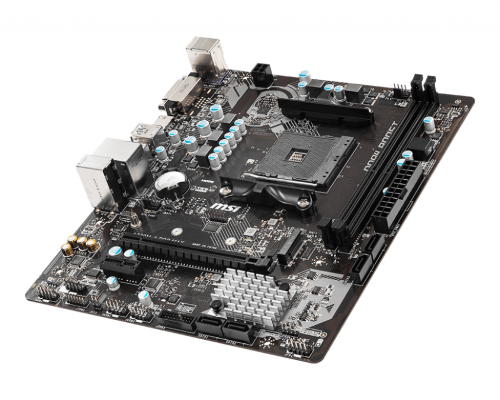

MSI A320M-A PRO MAX AMD RYZEN MOTHERBOARD

• Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen withRadeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlonwith Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors forSocket AM4
• AMD® A320 Chipset
• 2 x DDR4 memory slots, support up to 64GB *ComboPI1.0.0.3-based and above BIOS are required.
• Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/3200(OC)Mhz(by JEDEC)
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OCMODE)
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory
• 1 x PCIe 3.0 x16 slot
• Supports x16 speed
• 1st, 2nd and 3rd Gen AMD Ryzen
• Supports x8 speed
• Ryzen with Radeon Vega Graphics
• 2nd Gen AMD Ryzen with Radeon Graphics
• A-series
• Athlon X4
• Supports x4 speed
• AMD® Athlon with Radeon Vega Graphics
• PCIe 2.0 x1 slot
• 1 x DVI-D port, supports a maximum resolution of1920x1200@60Hz1,2
• 1 x HDMI 1.4 port, supports a maximum resolution of4096x2160 @24Hz1,2
•


• AMD® A320 Chipset
• 4 x SATA 6Gb/s ports
• Supports RAID 0, RAID1 and RAID 10
• 1x M.2 slot (Key M)
• Supports PCIe 3.0 x4 and SATA 6Gb/s
• 1st, 2nd and 3rd Gen AMD Ryzen
• Ryzen with Radeon Vega Graphics
• 2nd Gen AMD Ryzen with Radeon Graphics
• Supports PCIe 3.0 x2 and SATA 6Gb/s
• AMD® Athlon with Radeon Vega Graphics
• A-series
• Athlon X4
• Supports 2242/2280/22110 storage devices
• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2Gen1 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Serial port connector
• 1x Clear CMOS jumper

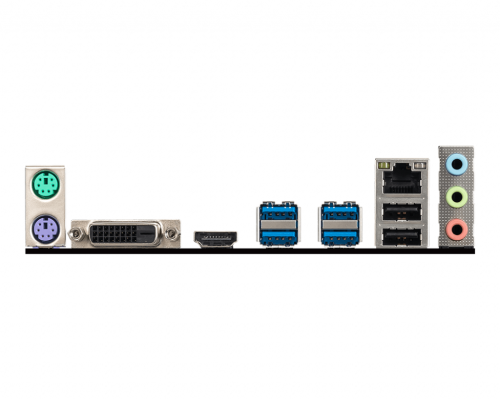

• Mouse
• DVI-D Port
• USB 3.2 Gen1
• LAN Port
• Keyboard
• HDMI Port
• USB 2.0 Ports
• HD Audio Connector

For full specification click here...
