MODEL: SIGNALGENERATOR

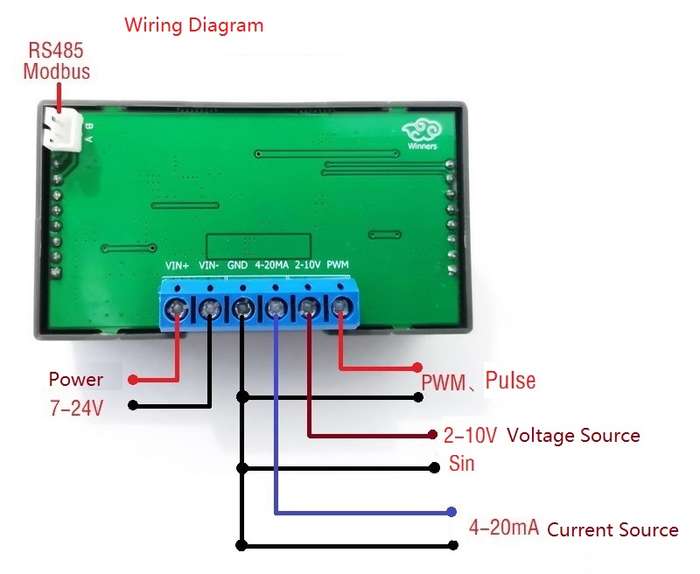

Descriptions: Notes: This module is divided into two versions, the signal generator and the version with MODBUS function. The difference is that the power supply with MODBUS version has RS485 communication interface, which can be set or data collected by the host computer software, or with the computer. , PLC, DCS, smart meters and other equipment for communication! Other than that, the other features are the same!
?
Restore factory settings: when power off, press and hold P1, then power on and then release the button, it will be restored.
?
Calibration function: The module source mode has voltage and current calibration function. If there is any display error, it can be calibrated by the following methods:
First power off, press and hold the code switch to power on, it will enter the calibration voltage and current mode, use the multimeter output voltage (quantity GND and 2-10V) or current (quantity GND and 4-20MA), rotate and adjust to display consistent with the multimeter After three seconds, the power can be cut off, and the accuracy can be corrected to less than 0.1%!
?
?
Specifications:
?
Supply voltage: 7-12V

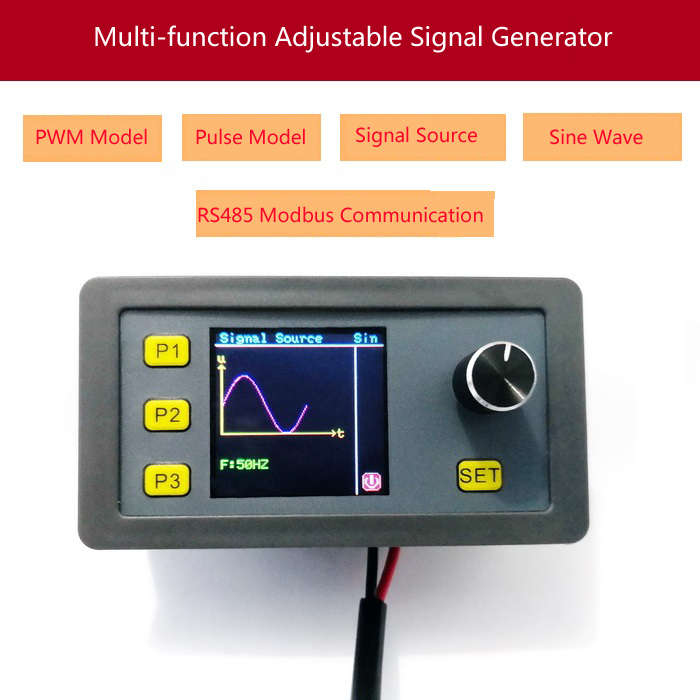

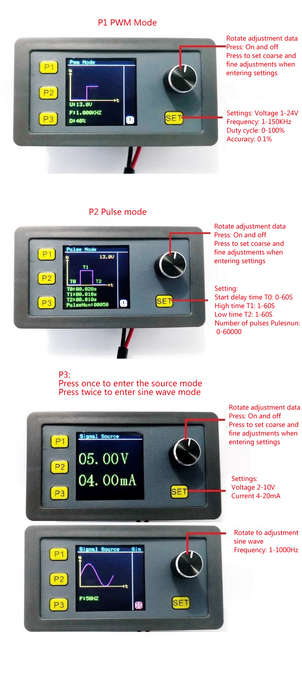

Product features: PWM mode, pulse mode, source mode, sine wave mode
PWM mode: voltage, frequency, duty cycle are adjustable, the accuracy is up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%

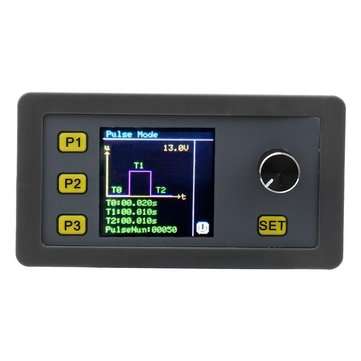

Pulse mode: start delay time T0: 0-60S, high time time T1: 0-60S, low time time T2: 0-60S, pulse number PulseNun: 1-60000, accuracy 0.001S
Signal source mode: voltage source 2-10V adjustable, current source 4-20mA adjustable
Sine wave mode: 1-1000HZ adjustable
Signal load capacity: output current maximum 30mA (Note: This product is the output of the signal source, can not directly drive high power load)
Ambient temperature: -10-+70?ﾣC
Module size: length 79mm width 43mm height 410mm
Opening size: length 76mm width 39mm
Weight: 53g
Package Includes: 1 x?Signal Generator
1 x?Modbus(optional)

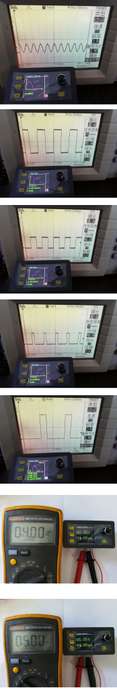

Details Pictures:
