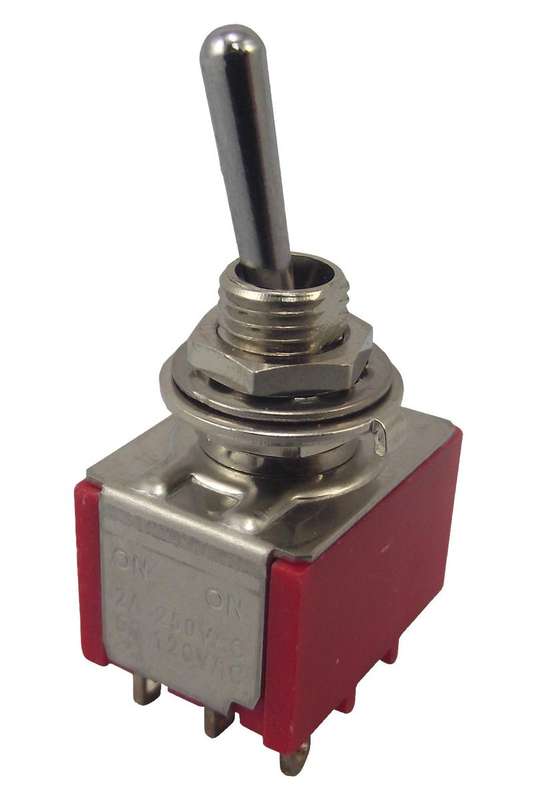

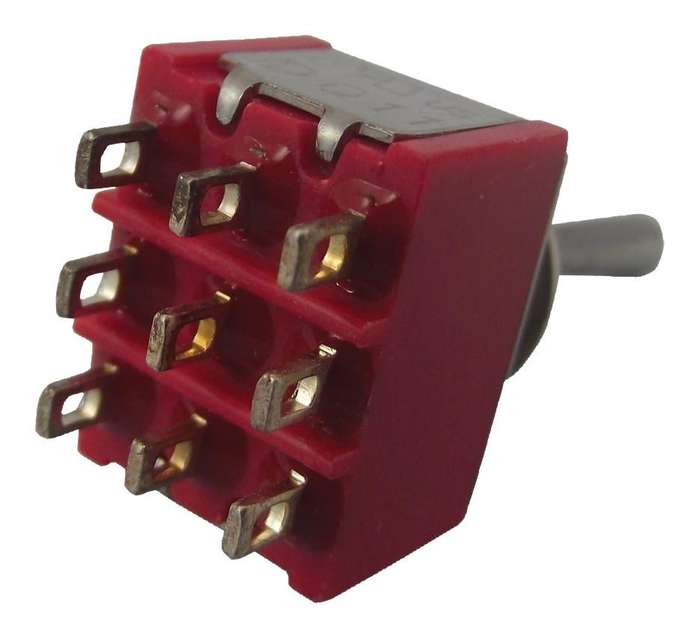

Multicomp Pro (1M31T1B5M1QE) Toggle Switch, On-On, 3PDT, Non Illuminated

Toggle Switch, On-On, 3PDT, Non Illuminated, 1M, Panel Mount, 5 AProduct InformationSwitch Operation: On-OnContact Configuration: 3PDTIllumination: Non IlluminatedProduct Range: 1MSwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: SolderContact Voltage DC Nom: 28VProduct OverviewThe 1M31T1B5M1QE is a 3-pole double-throw Miniature Toggle Switch with solderterminals, On-None-On operation, 10.41mm high actuator, 7.52mm high, flat(torque) bushing, silver contact, epoxy seal, diallylphthalate (DAP) case,chrome-plated brass actuator, nickel-plated brass bushing, stainless steelhousing and tin-plated brass switch support.10mR Maximum contact resistance1000MR Minimum insulation resistance1000VRMS at sea level Dielectric strength-30 to 85°C Operating temperature rangeApplicationsIndustrial
