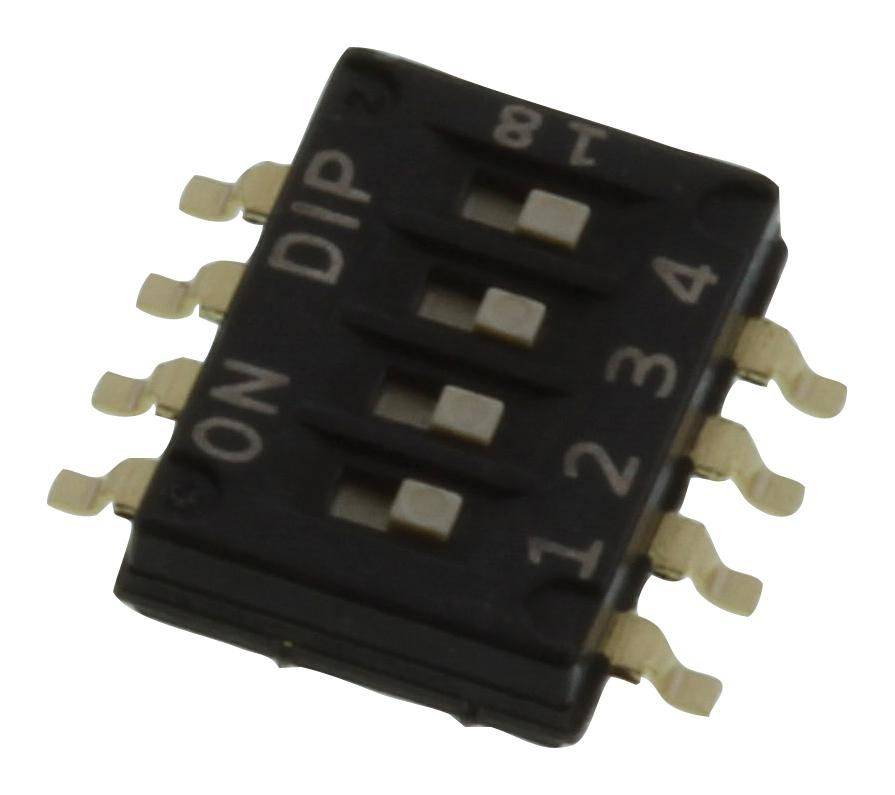

Multicomp Pro (MCDHN-04F-V) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 4 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 4CircuitsSwitch Actuator Style: SlideSwitch Mounting: Surface MountContact Configuration: SPSTContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: MCDHNSwitch Type: DIP UnsealedProduct OverviewThe MCDHN-04F-V from Multicomp Pro is a half pitch 4-way DIP switch. This switchhas UL 94V-0 rated black high temperature thermoplastic nylon base/cover, UL94V-0 rated white high temperature thermoplastic LCP actuator.Switching capacity is 25mA at 24VDCSPST contact configurationOperating force is 500gfOperation temperature range from -40°C to +85°CMaximum contact resistance is 100mohm at initialMinimum insulation resistance is 100Mohm at 500VDC1,000 cycles mechanical life and 1,000 cycles electrical lifeGold plated copper alloy contacts and gold plated brass terminalsApplicationsIndustrial, Power Management, Automation & Process Control
