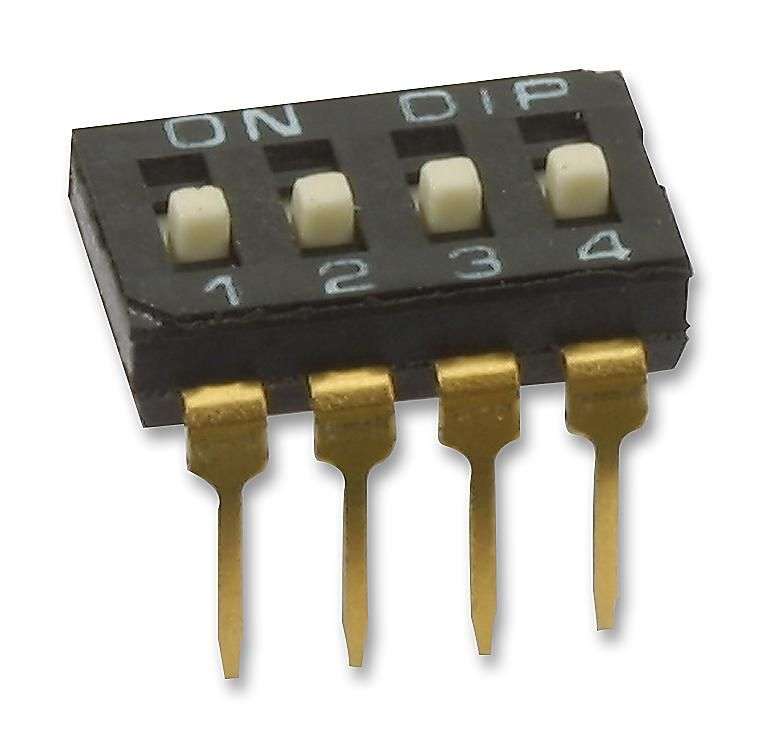

Multicomp Pro (MCNDI-04S) DIP / SIP Switch, SPST, 24 V, 25 mA

DIP / SIP Switch, 4 Circuits, Slide, Through Hole, SPST, 24 V, 25 mAProduct InformationNo. of Circuits: 4CircuitsSwitch Actuator Style: SlideSwitch Mounting: Through HoleContact Configuration: SPSTContact Voltage DC Max: 24VContact Current DC Max: 25mAProduct Range: MCNDISwitch Type: DIP UnsealedProduct OverviewThe MCNDI-04S is a single-pole single-throw (SPST) 4-way low profile DIL Switch,machine insertable DIP. The MCNDI series switch has gold plated over nickelcontact, gold terminal and black high temperature base/cover. Splay terminalsallow for automatic insertion by IC insertion machine. Insert moulding ofterminals and ultrasonic welding improve flux proofness and enable flux washingin whole by top tape sealing. Double contacts offers high reliability. Terminalplating by gold give excellent results when soldering.Terminal Type: Splay100MR at 500V Insulation resistance500VAC for one minute Dielectric strengthPitch: 2.54mm
