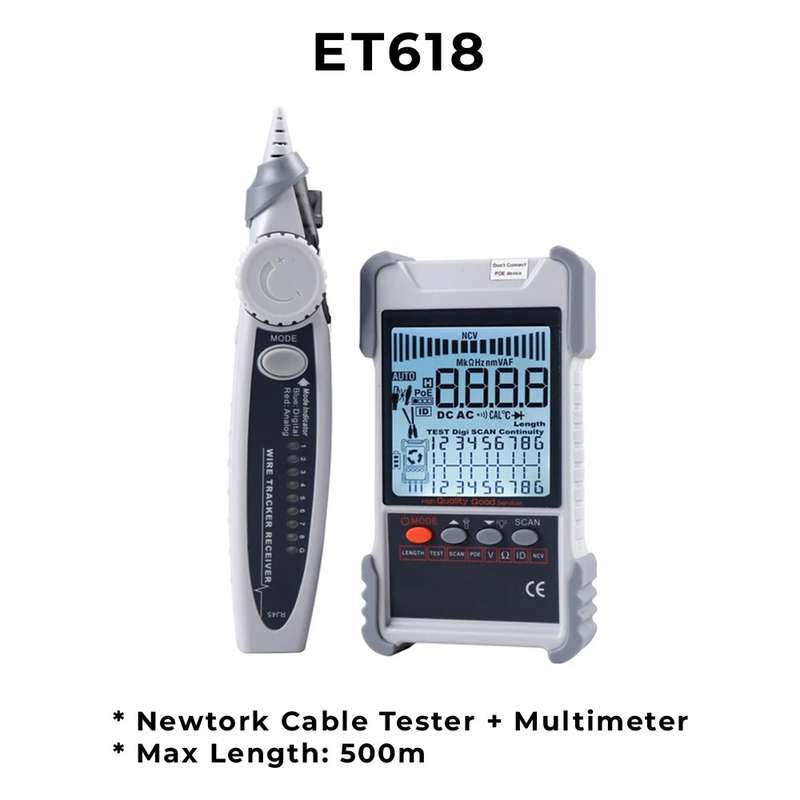

This meter combines cable tracing and cable length measuring functions. Its key advantages include long-tracing distance, clear sound signals, and rapid, precise cable length measurement.
It proves highly practical for laboratories, factories, network installers, and technicians, enabling real-time measurement of network cable length, short circuits, and circuit breaks.
The cable tracing function efficiently locates target cables within large cable setups, applicable to telephone systems, computer networks, BNC cables, and other metal network cables.
Features
Cable Tracing Function: Swiftly and efficiently locates target cables in large cable arrays, suitable for telephone systems, computer networks, BNC cables, and metal network cables.
Cable Length Test: Measures cable lengths of different metal cables with at least 2 cores, including network cables, telephone lines, and BNC cables.
POE Test: Checks cable mapping polarity and voltage of POE network switches.
Multifunctional Cable Tester: Offers analog tracing, cable mapping, PoE voltage measurement, adjustable digital tracing sensitivity, and more.
LCD Display with Flashlight: Features a large LCD display on the sender for better visibility, and a built-in flashlight for low-light conditions.
Multimeter Function (Only on the ET618): Measures direct current and AC voltage and current, resistance, continuity, diode, and temperature.
Specifications
Material: ABS
Type: ET616/ET618 (optional)
Analogue Tracing:
Switch Tracing (w/PoE):
Cable Mapping:
Switch Indicators Flashing:
Noisy-Free Digital Tracing:
ET616: Digital
ET618: Digital/Vibration
PoE Voltage Measuring: Voltage polarity
Analogue Bargraph:
NCV Detection:
Network Cable Length Measure:
ET616: 400M
ET618: 500M
Power
Host: Built-in lithium battery, 1250mAh (included)
Receiver: 1 * 9V battery (NOT INCLUDED)
Package Size: 218 * 158 * 50mm / 8.6 * 6.2 * 2.0in
Package Weight: ET616: 490g, ET618: 585g
Multimeter Specifications (Only ET618)
Direct Current Voltage: 400mV~1000V ±(0.8%+3)
AC Voltage: 4V~400V ±(1.5%+5)
Direct Current Current: 1.0A~10.0A ±(1.2%+4)
AC Current: 1.0A ~10.0A ±(2.0%+5)
Resistance: 200 ~20M ±(2%+6)
Continuity: < 50 buzzers beep
Diode:
Temperature (K Type): -20~1000°C ±(2.0%+15)
ET616 Packing List
Host
Storage Bag
Receiver
User Manual
Testing Clip Line
Network Cable
Recharging Line
Storage Bag
ET618 Packing List
Host
Storage Bag
Receiver
User Manual
Testing Clip Line
Network Cable
Recharging Line
Temperature Probes
Multimeter Probes
