Multimeter Transistor Tester Diode Triple Conductor Capacitor Resistor Detector LCR-TC1 1.8TFT LCD

This is a cost-effective and widely used transistor detector. You can use it to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac and battery etc. It can also be used to detect infrared wave forms.

Features:

It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.

It also can detect zener diode and has the function of self-calibration.

After detection, array the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Not like the usual black and white display, this detector will show results in color.

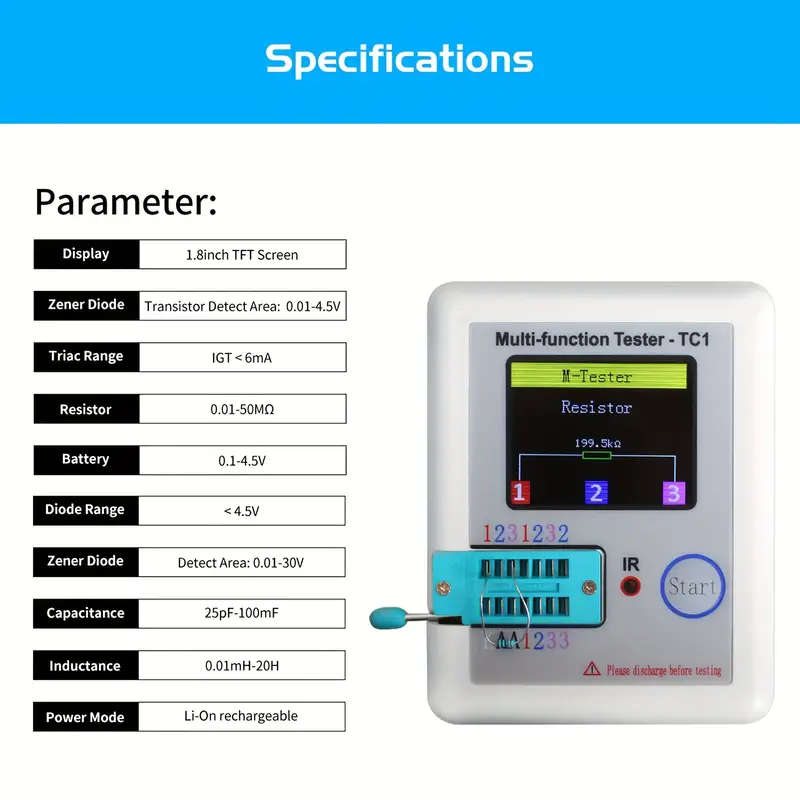

Specifications:

Power Mode: Rechargeable Lithium Battery

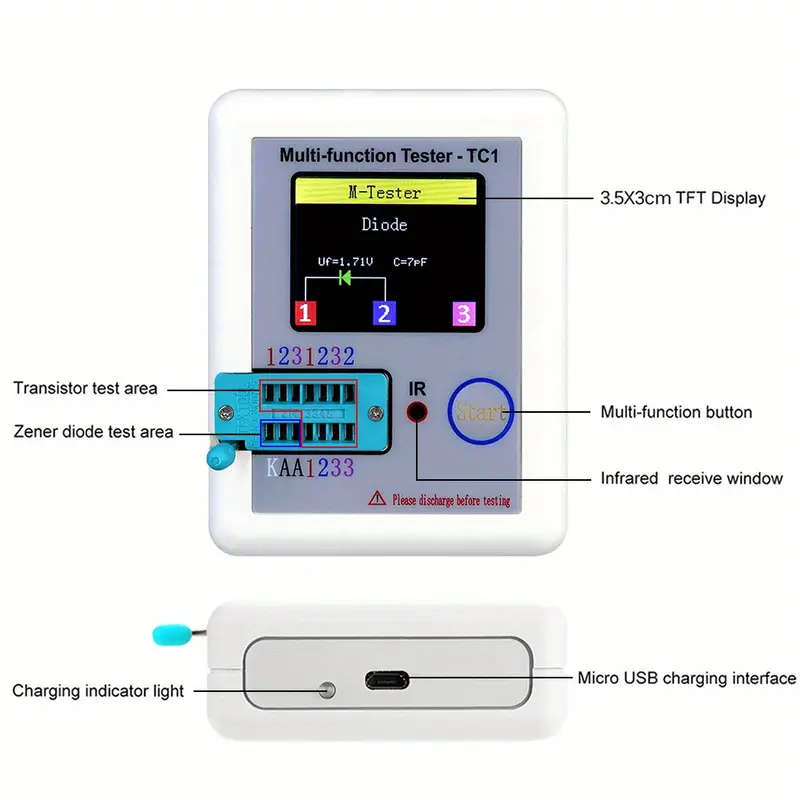

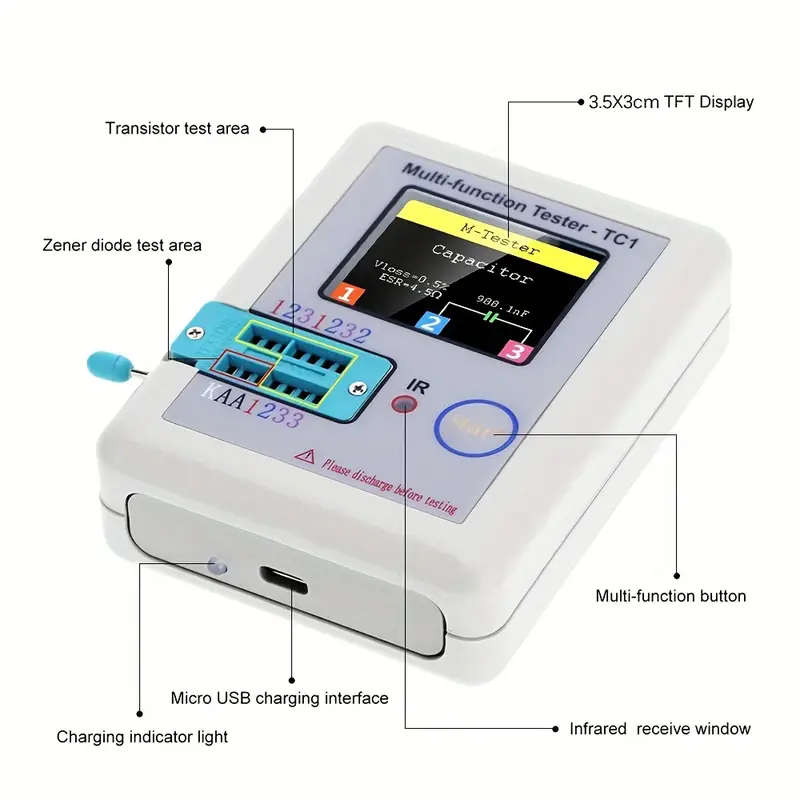

Display: 3.5 * 3cm TFT Screen

Diode Range: < 4.5V

Zener Diode:Transistor Detect Area: 0.01-4.5V Zener Diode Detect Area: 0.01-30V

Triac Range: IGT < 6mA

Capacitance: 25pF-100mF

Resistor: 0.01-50M

Inductance: 0.01mH-20H

Battery: 0.1-4.5V

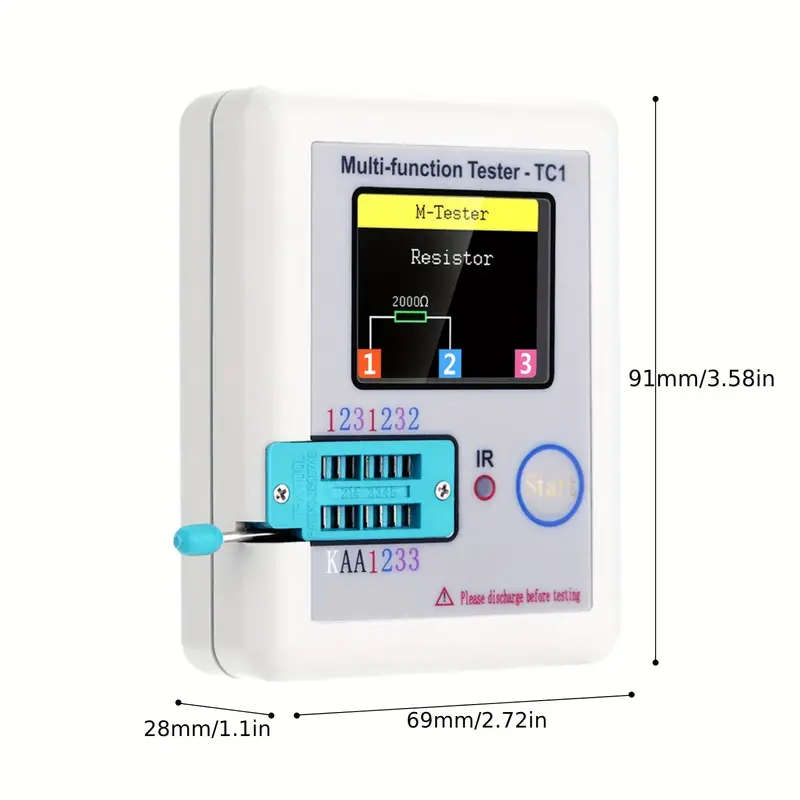

Item Size: 8.8 * 8 * 2.8cm / 3.47 * 3.15 * 1.10in

Item Weight: 111.5g / 3.94oz

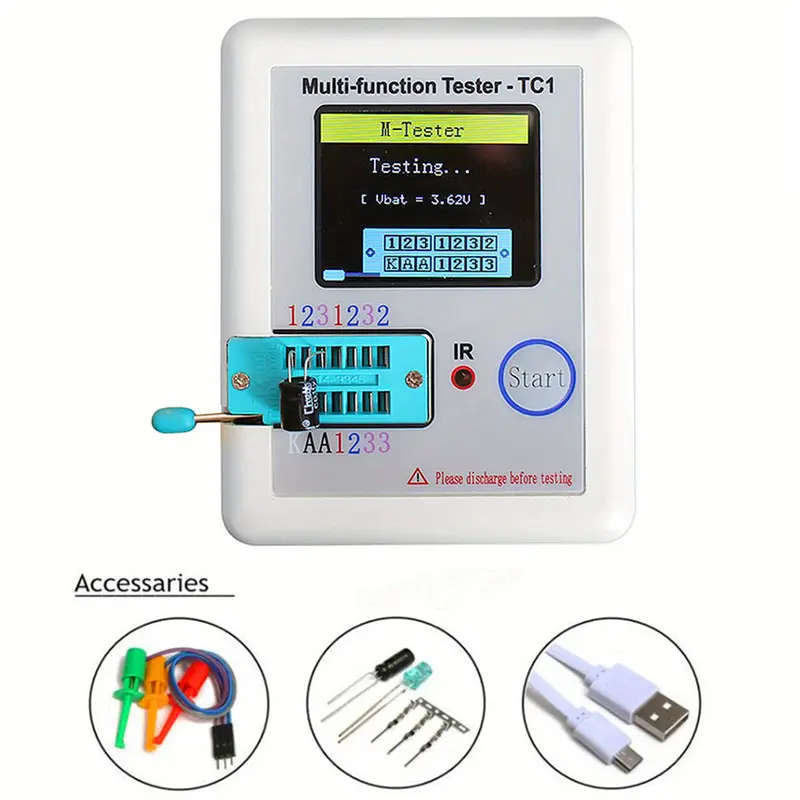

Package List:

1 * Transistor Tester

1 * Electronic Component Set(Send Randomly)

3 * Test Hook(Send Randomly)
