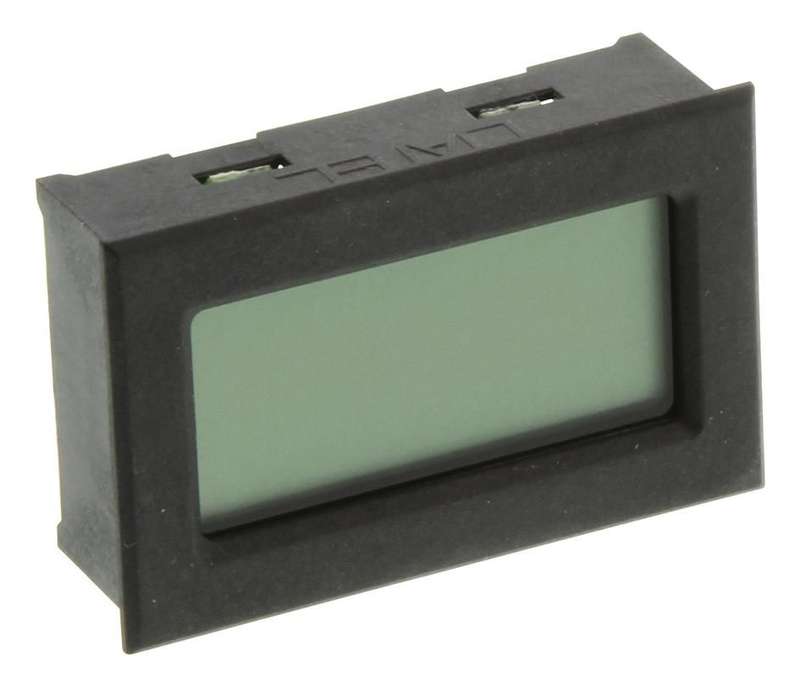

Murata (DMS-20LCD-1-DCM-C) Voltmeter, DMS-20LCD Series, DC Voltage

Voltmeter, DMS-20LCD Series, DC Voltage, 8V to 50V, 3 Digits, 8 Vdc to 50 VdcProduct InformationNo. of Digits / Alpha: 3Meter Function: DC VoltageMeter Range: 8V to 50VDigit Height: 9.4mmPanel Cutout Height: 21.29mmPanel Cutout Width: 33.93mmSupply Voltage Min: 8VDCSupply Voltage Max: 50VDCOperating Temperature Min: 0°COperating Temperature Max: 60°CProduct Range: DMS-20LCD-0/1 SeriesProduct OverviewThe DMS-20LCD-1-DCM-C is a Self-powered LCD Display 2-wire DC Voltage Monitorwith built-in VDC annunciator, can be easily read from 10ft. Apply power to thetwo rear terminals and the unit is operational. It utilizes a precisionanalogue-to-digital converter and ultra-stable passive components to achieveexcellent performance over the operating temperature range of 0 to 60°C. Arugged, ABS plastic package provides excellent protection against shock andvibration.8VDC to 50VDC voltage monitor (24VDC nominal operation) with 0.1V resolutionIdeal for battery powered systemsReverse polarity protected3 digit LCD displayWeight of 14gramsABS case material, provides excellent protection against shock and vibrationHumidity range from (non condensing) 0% to 85%Subminiature 1.38inch x 0.88inch x 0.66inch packageMaximum current consumption of 2mA at 24V and 6mA at 50VSampling rate of 2.5readings/secondApplicationsIndustrial, Automation & Process Control, Automation & Process Control
